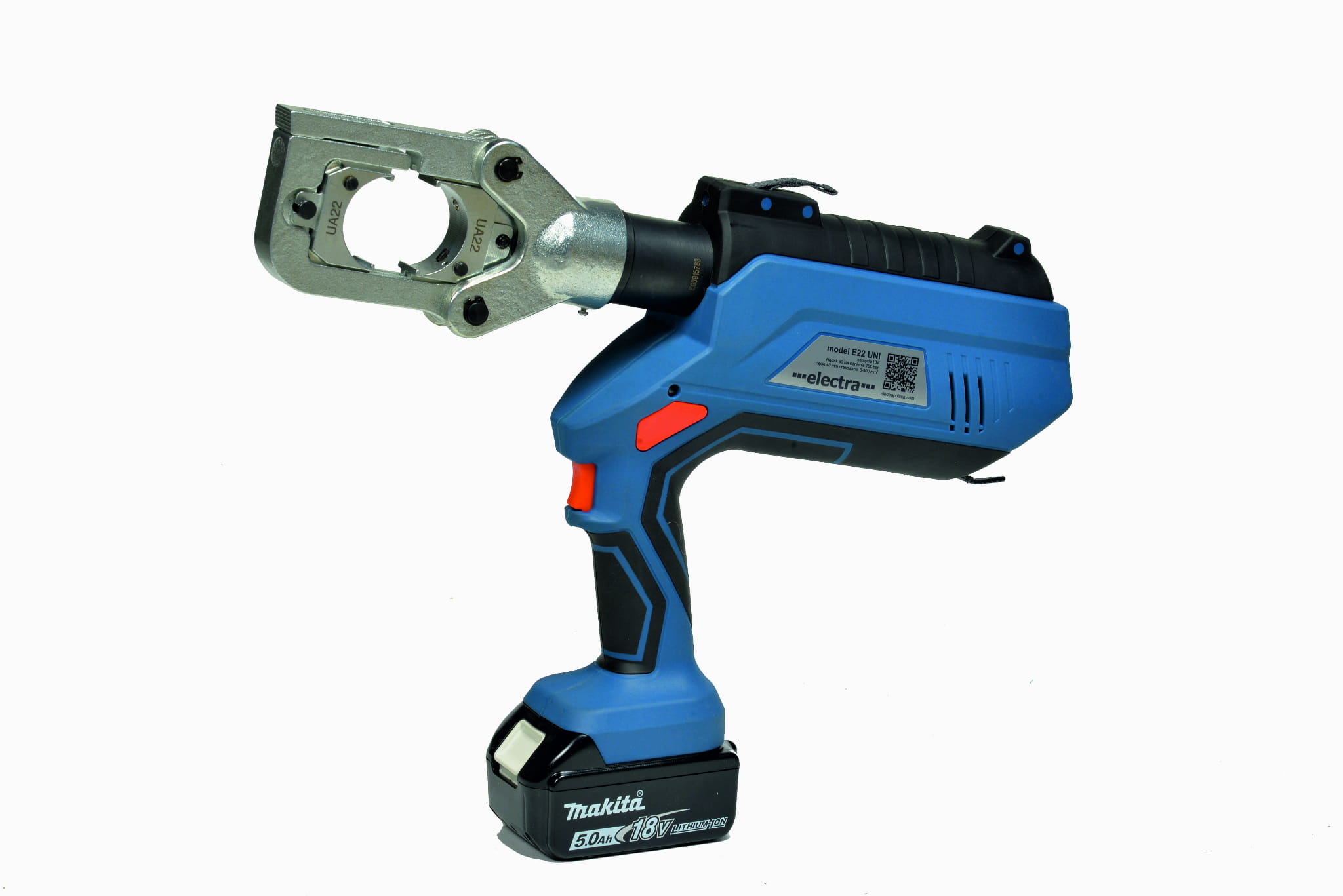

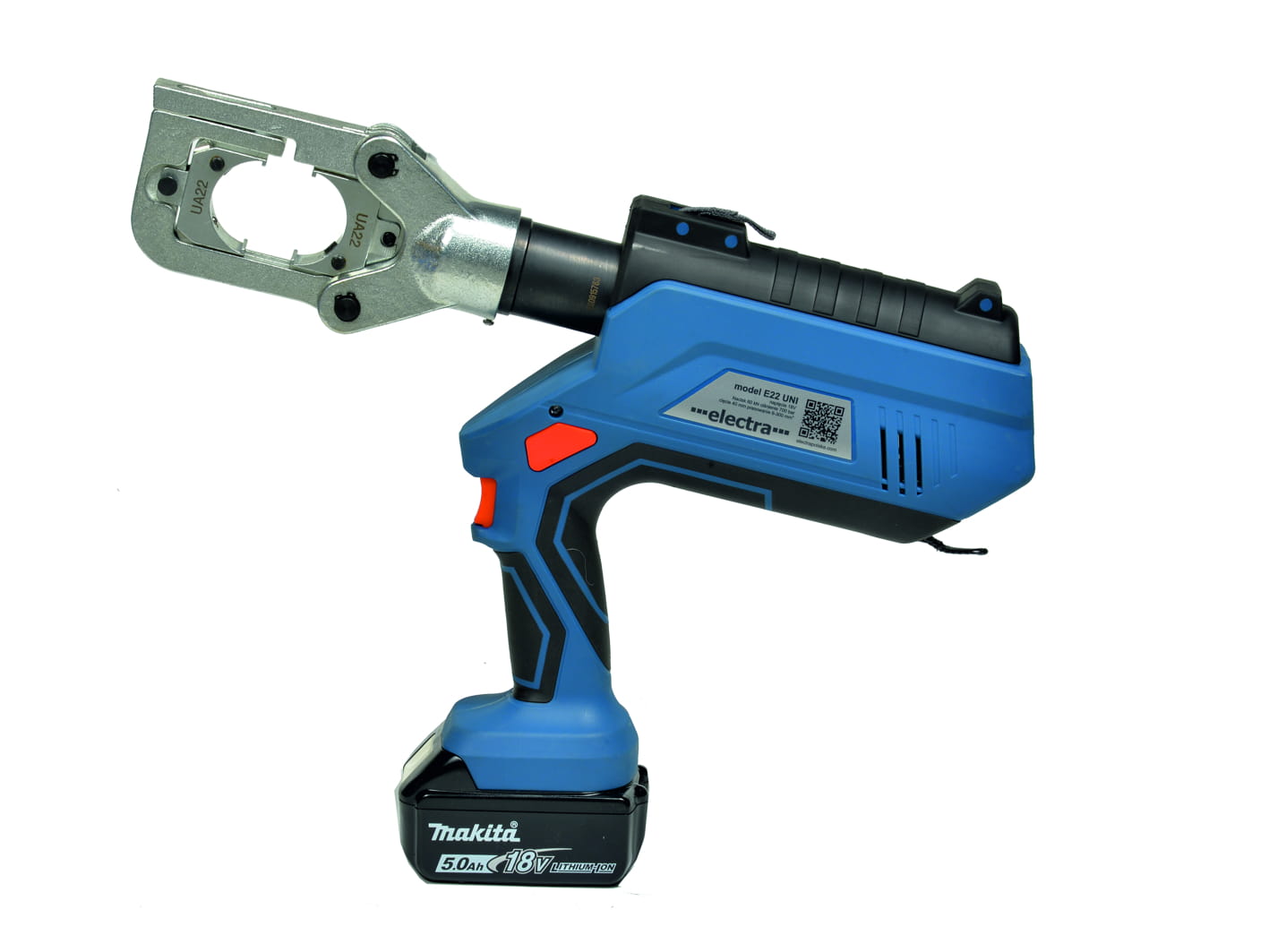

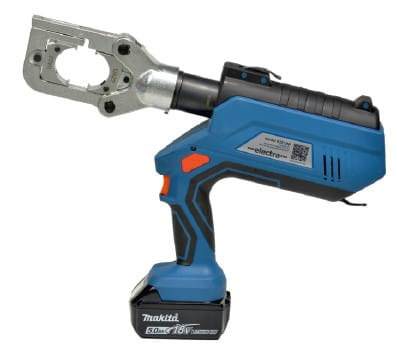

Battery crimping/cutting tools E22 UNI + 10 dies

Universal cutting/pressing tool
Model E22 UNI
Multifunction tool
Die series 22 for pressing
Clip-on head
Weight 4,5 kg
Working range
Working pressure 700 bar
Pressure 60 kN Pressing Al. 6-240 mm2 Pressing Cu 6-300 mm2
Cutting of AFL ( ACSR ) cables 40 mm
Cutting Al/Cu cables 40 mm
Pressing/cutting 2-5 seconds
360 degree rotating head
Biodegradable oil
Operating range at -20 to +40 degrees C
Height 590x90x510 mm
Power supply :
Makita Li-Ion rechargeable battery 18.0 V, 5.0 Ah
Charger with active cooling system:
cools the battery thanks to the built-in fan
during charging
Battery type : Lithium Ion/LI-Ion
Battery capacities: 1.3-5.0 ( 5.0 Ah standard battery )
Charging time: about 22 min
Charger power supply 230 V
LED indication of battery charge
LED indication of battery charge status

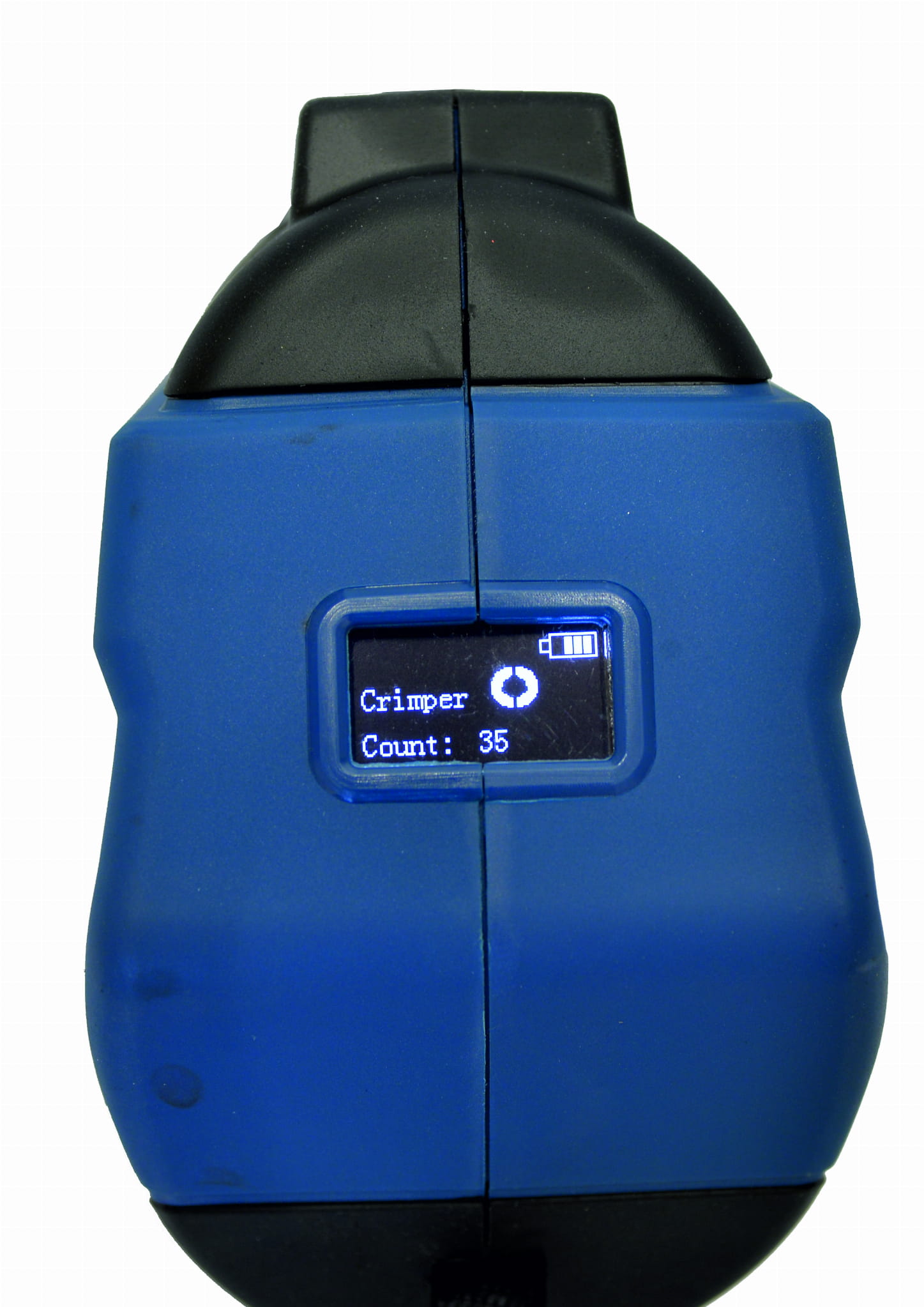

LED panel with battery data and number of presses
Automatic pressure fuse
Manual / automatic piston return
Stop scissor operation / piston return - immediately
LED illumination of the work area ( Night mode )
Two-stage pump ( idle , high pressure )
Composite handle
Handle for attaching to a belt or hanging up

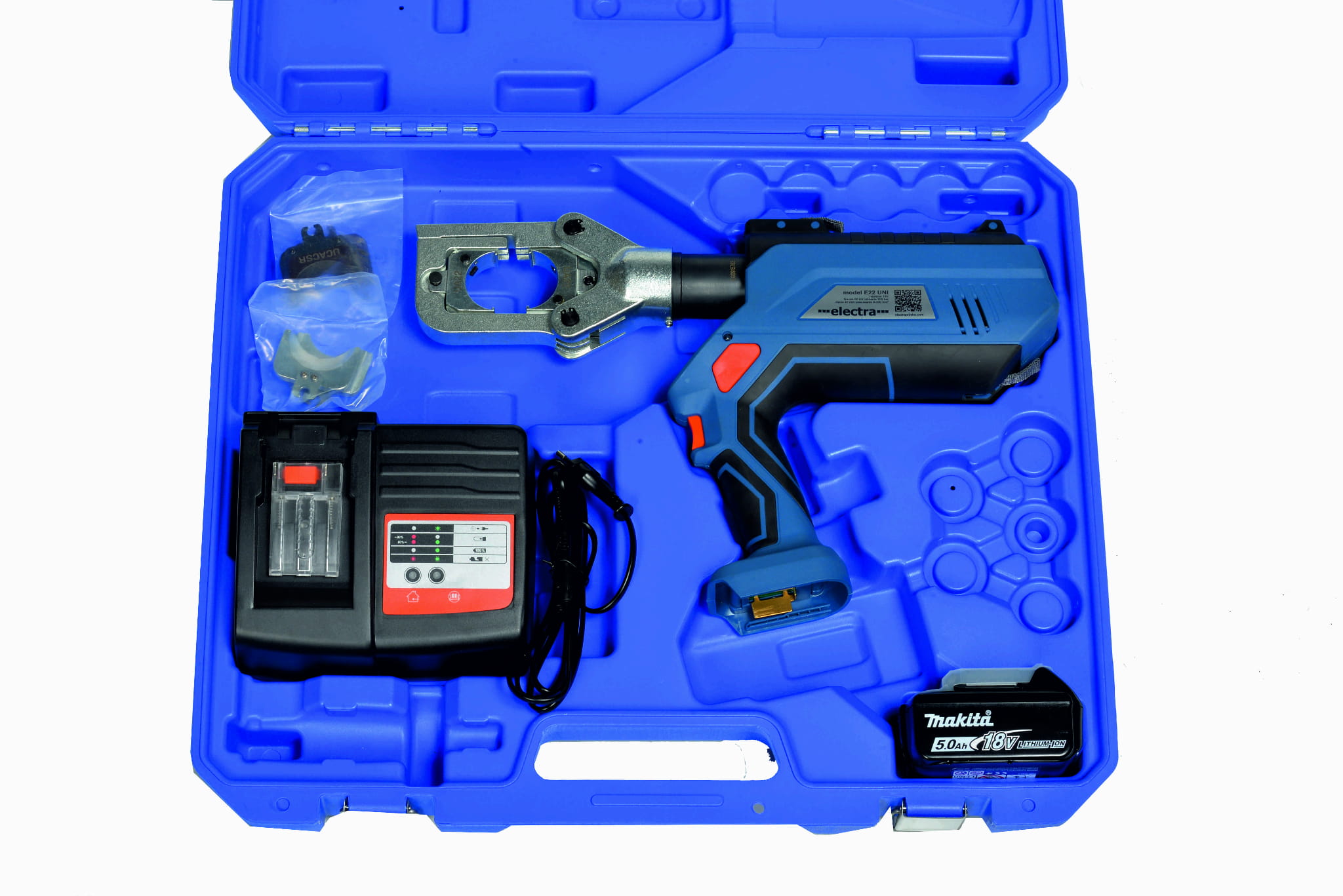

The set includes :

E22 UNI multifunction device
Adapter for pressing

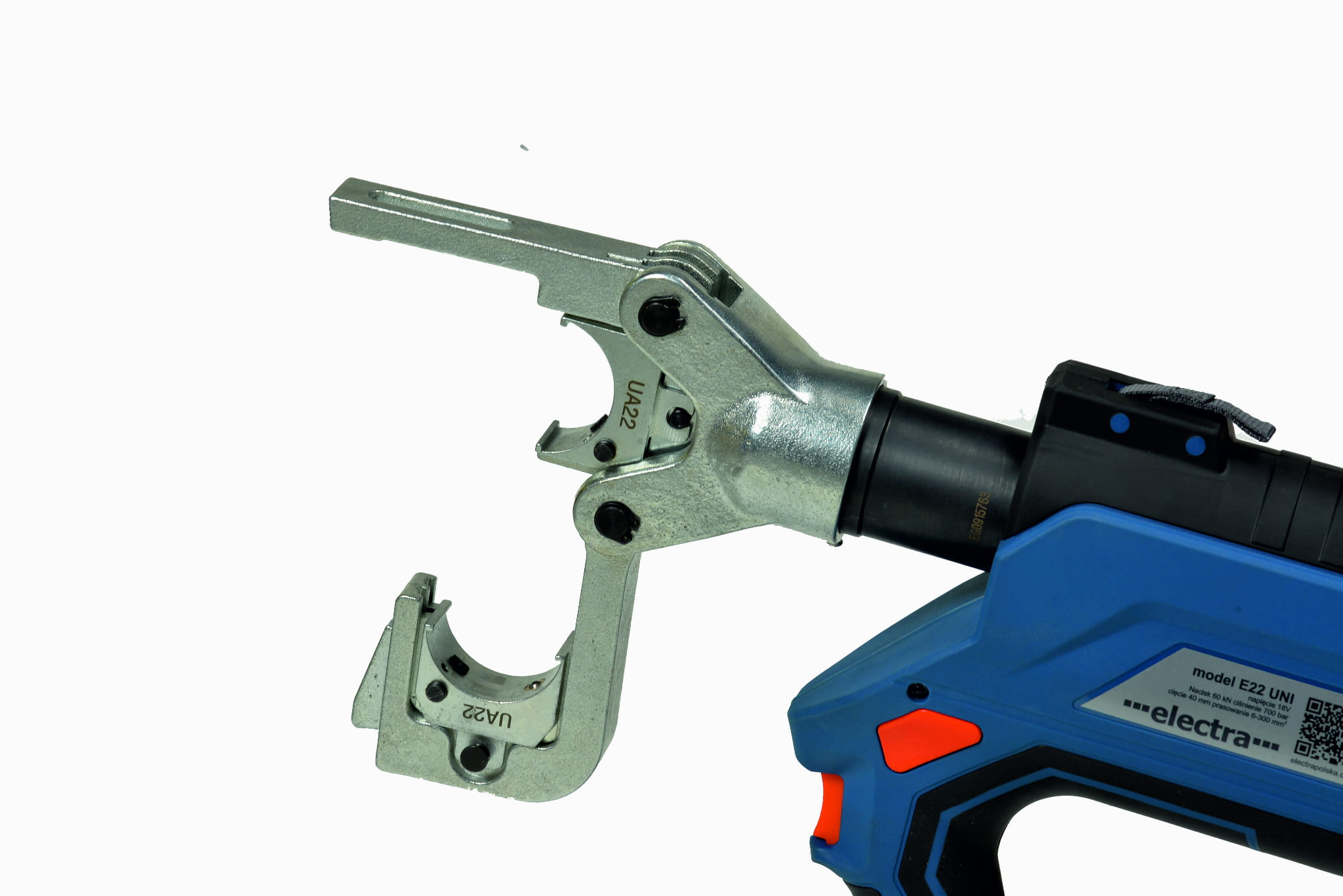

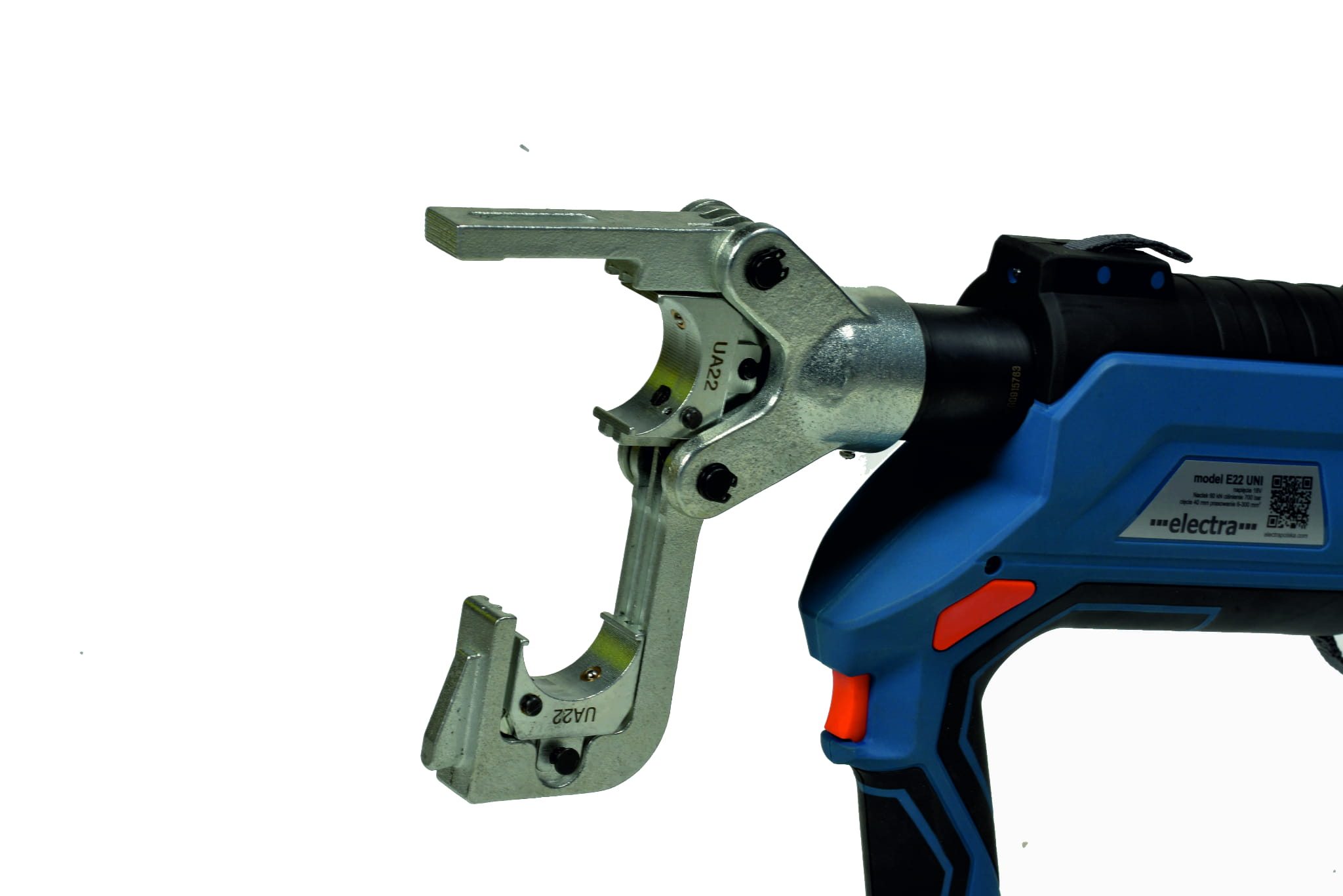

AFL wire cutting adapter
Adapter for cutting Al/Cu cables
Makita charger
Makita E18/5 rechargeable battery - capacity 5.0 Ah ,
Plastic carrying case
User manual

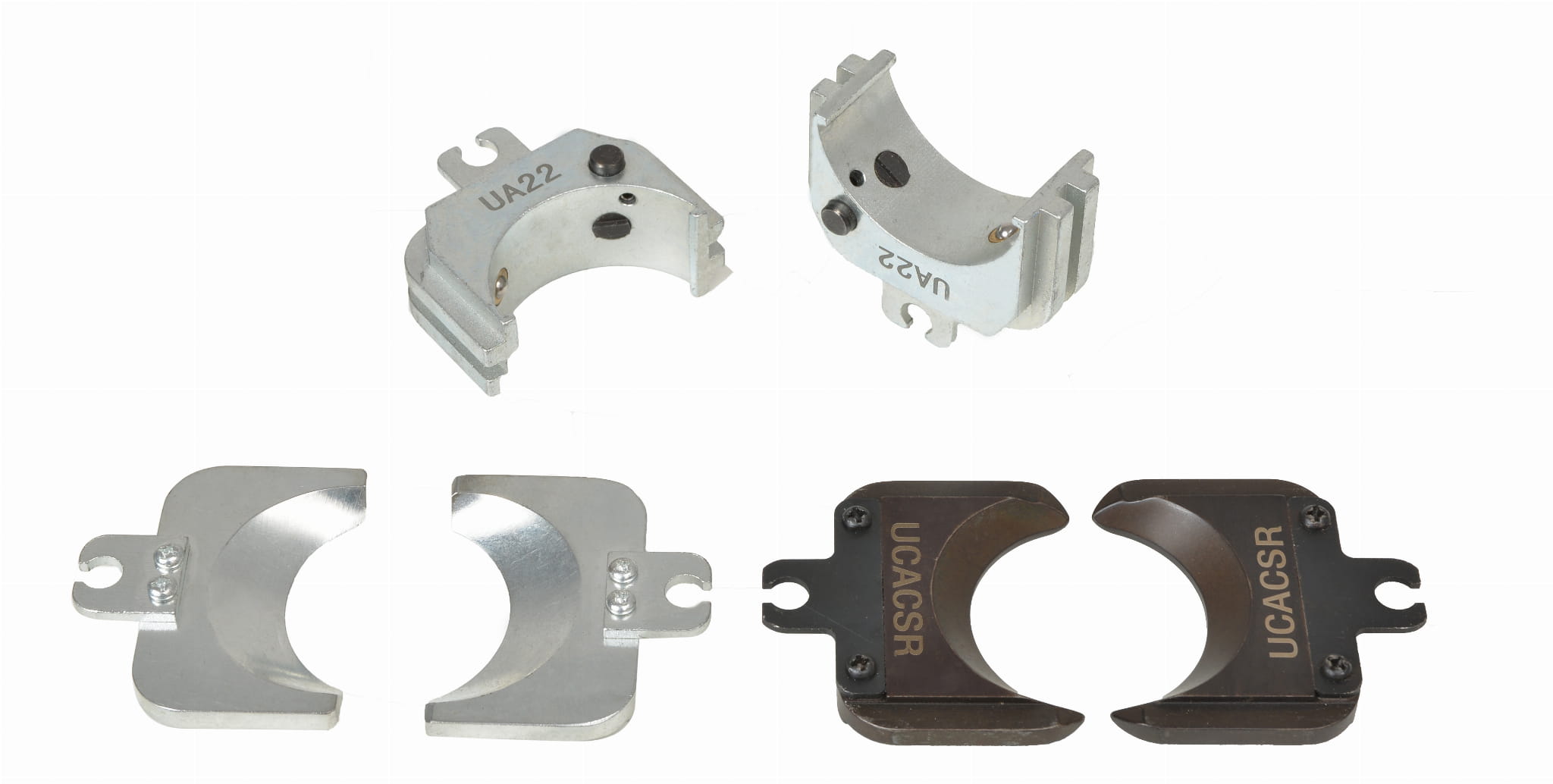

Die series 22 - 10 pieces to choose from

Options :
Additional battery
Mains adapter
Die selection ( page A102 ) series 22 pressure 60 kN https://electrasklep.pl/pl/c/Matryce/67

MR22 - Die for Cu standard
MD22 - Die for Cu DIN
MA22 - Die for Al. DIN
MC22 - Dies for thin-walled Al.
MRU22 - Die for sector conductor reforming
MK22 - Dies for crimping AL/AFL
ME22 - Dies for pressing AsxSn connectors.
