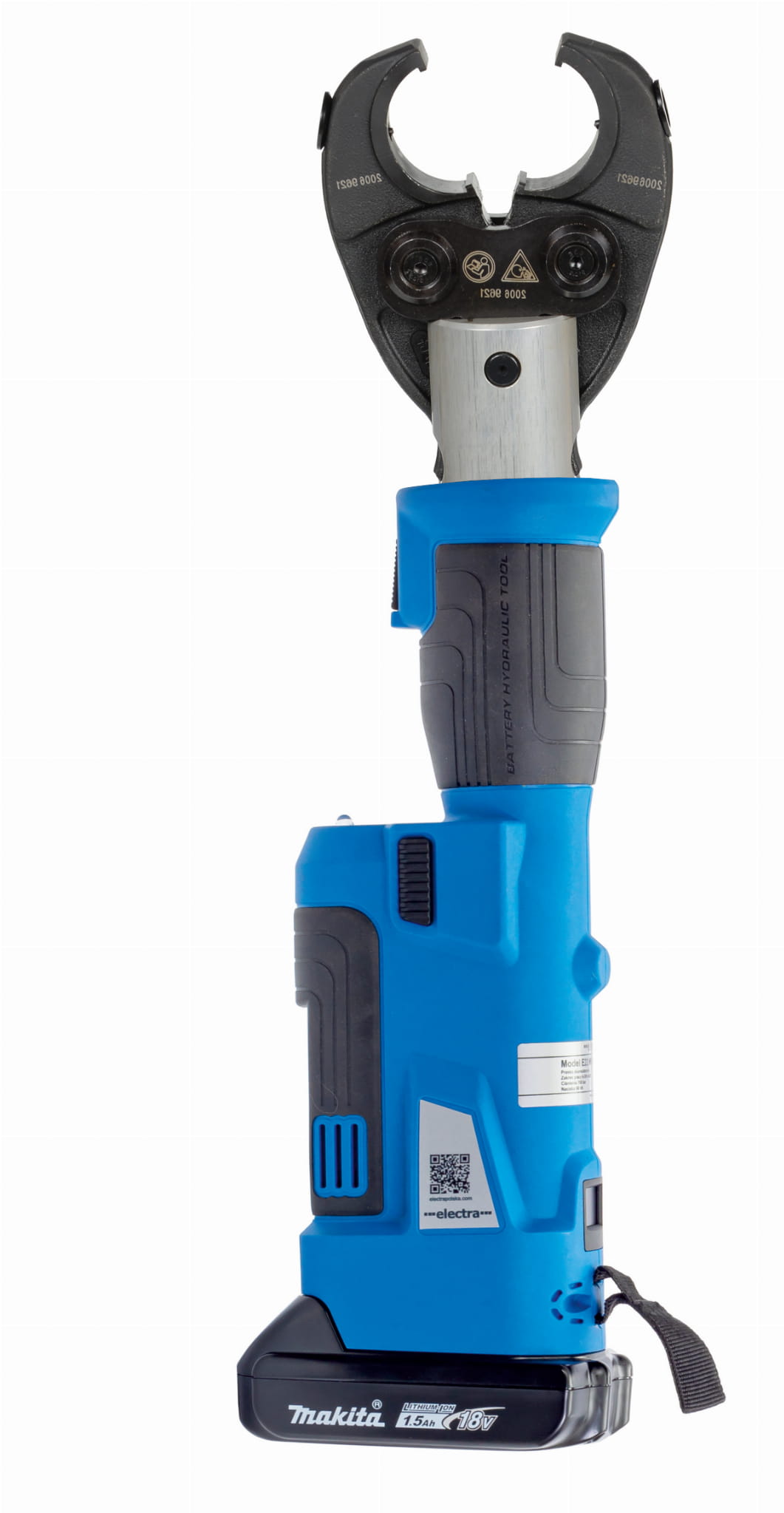

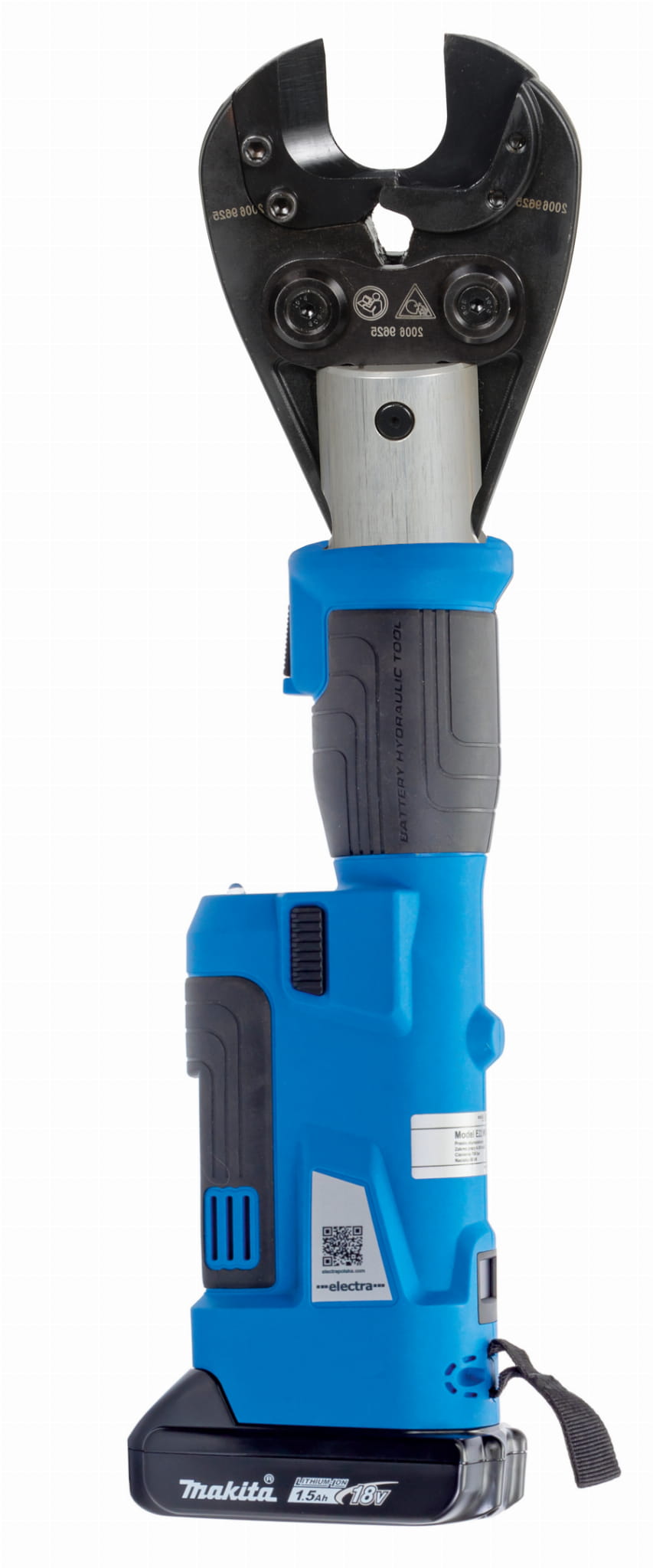

Battery crimping/cutting tools E22U + 10 dies
Availability:
temporarily unavailable
Dispatched within:
24 hours
On warehouse:
0
Producer:
Product code:
SET E22 U 10
Description
Model E22 U
Pressure
60 kN
Die series
22 for pressing
Working pressure
700 bar
Technical data
| Die series | 22 for pressing |
|---|---|
| Weight | 3.4 kg |
| Working range Crimping Al | 6-240 mm², Crimping Cu 6-300 mm² |
| Al/Cu cable cutting | 40 mm |
| Pressing/cutting | 2-5 seconds |
| Working pressure | 700 bar |
| Pressure | 60 kN |
| Head rotating through an angle of | 360 degrees |
| Operating range at | -20 to +40 degrees C |
| Dimensions | 590x140x510 mm |
| Power supply | |
| Makita Li-Ion | 18.0 V, 2.0 Ah battery pack |
| Battery type | Lithium Ion/LI-Ion |
| Battery capacities | 1.3-5.0 Ah( 2.0 Ah standard battery ) |
| Charging time | about 22 min |
| Charger power supply | 230 V |
Key features
- Open head
- Biodegradable oil
Power supply
- Charger with active cooling system: cools the battery thanks to the built-in fan during charging
- LED indication of battery charge
- LED indication of battery charge status
- LED panel with battery data and number of crimps
- Automatic pressure fuse
- Manual / automatic piston return
- Stop scissor operation / piston return - immediately
- LED work light - option (Night mode)
- Two-stage pump ( idle , high pressure )
- Composite handle
- Handle for attaching to a belt or hanging up
The set includes
- Multifunction device E22 U
- Adapter for pressing with dies series 22
- Al/Cu cable cutting adapter
- Makita charger
- E18/2.0 battery - capacity 2.0 Ah ,
- Plastic carrying case
- User manual
- Supplied with 10 dies, series 22
