Battery-powered crimping tool 16–630 mm², M25 series

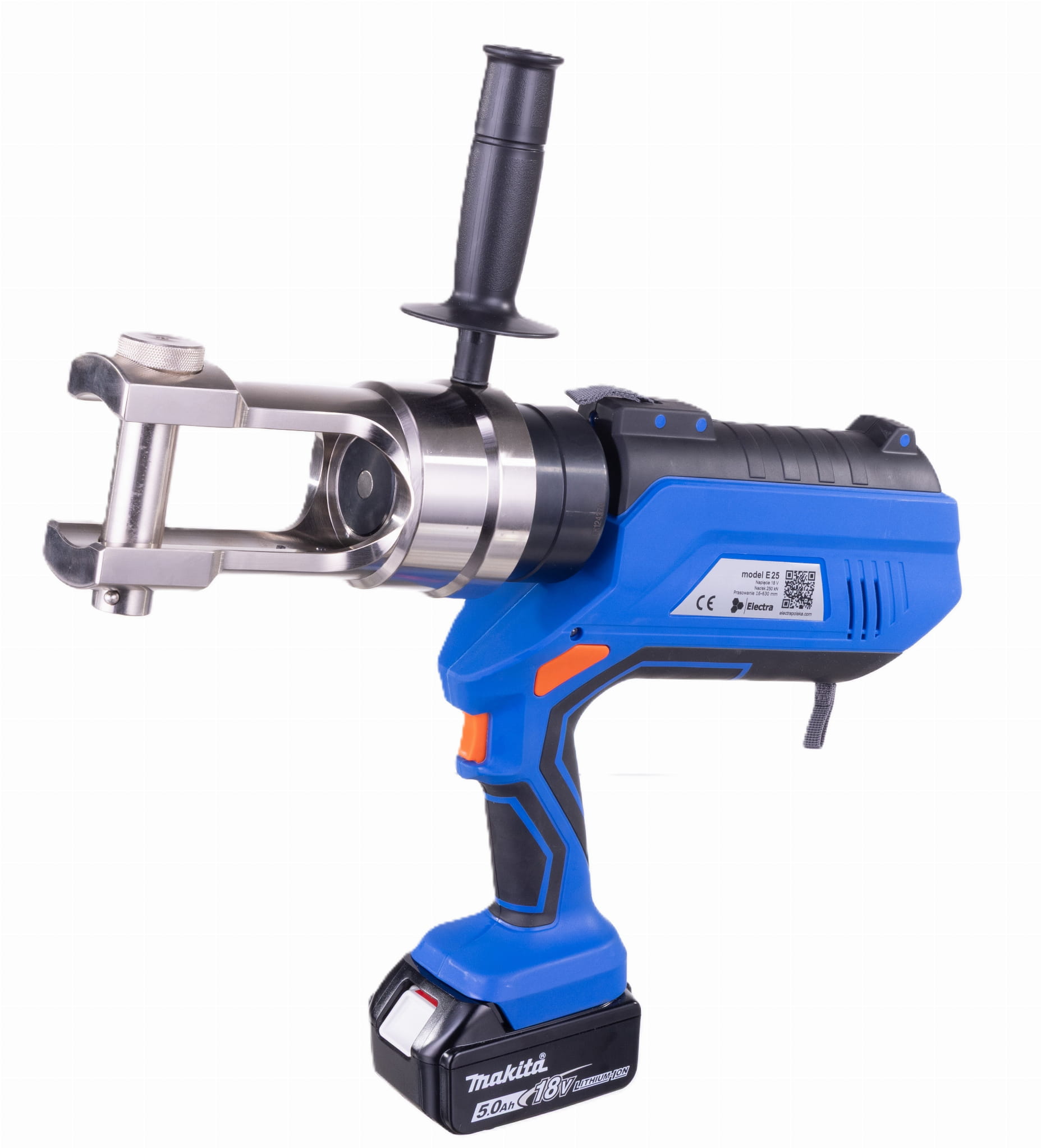

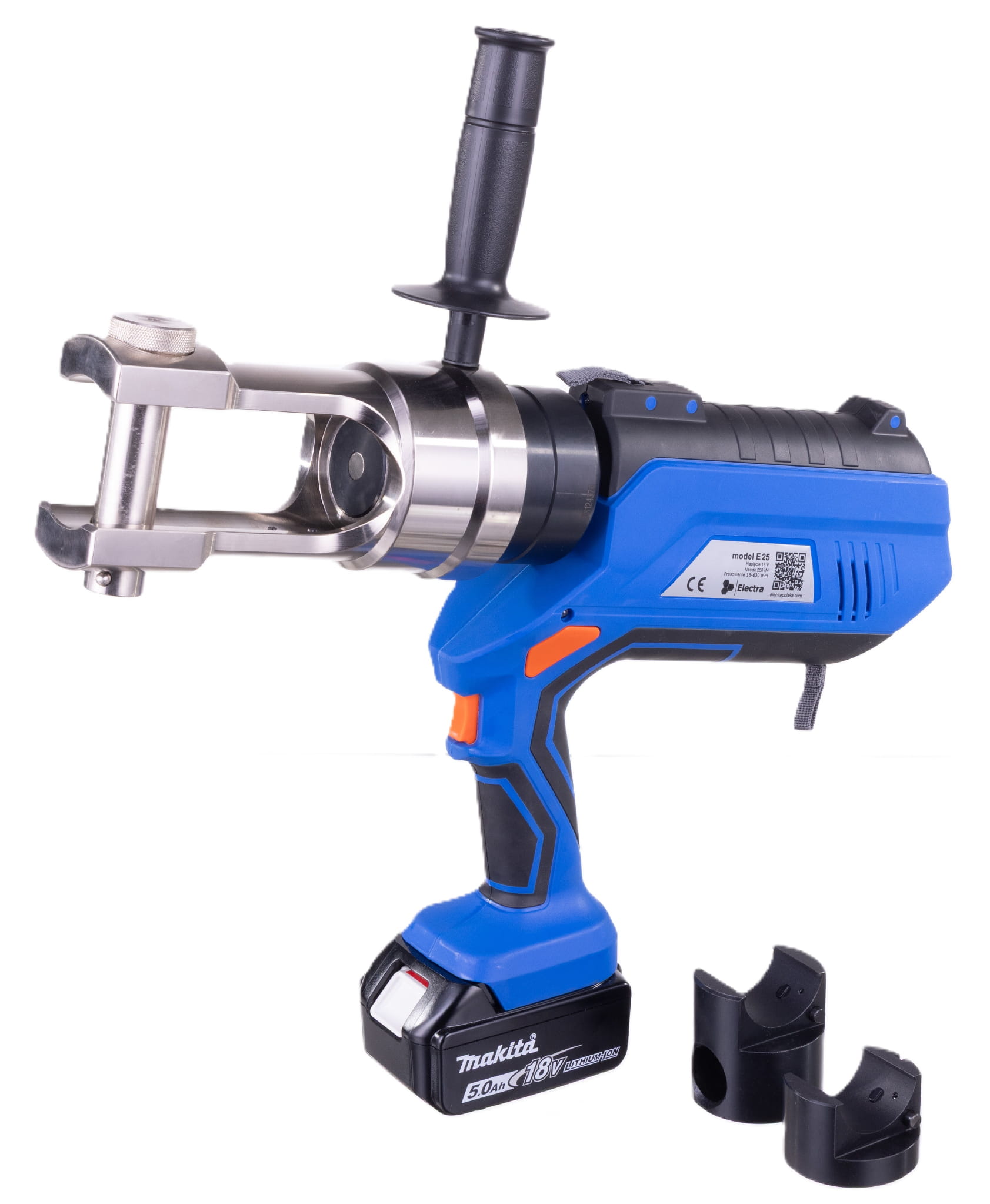

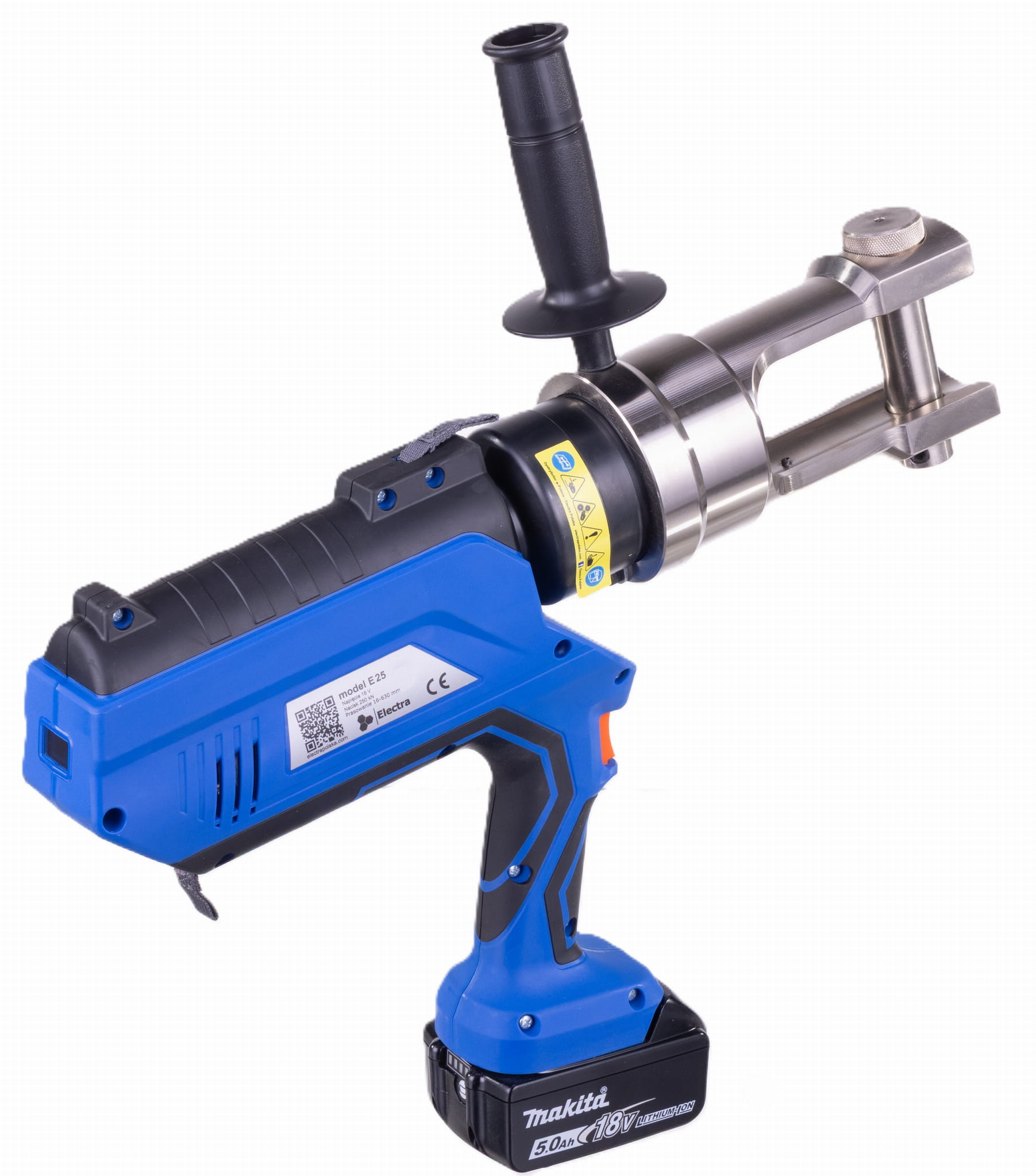

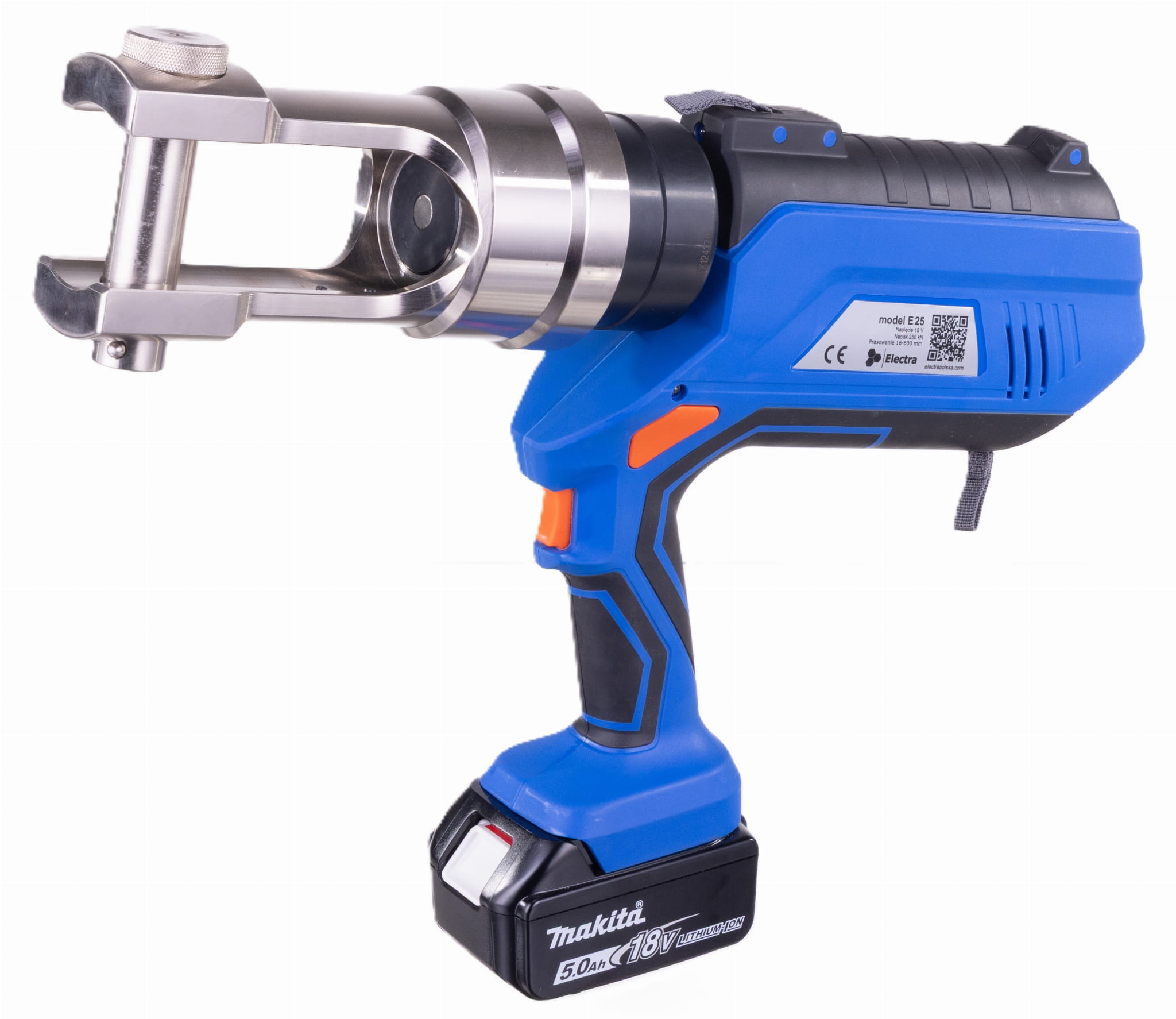

Battery-Powered Crimping Tool – Model E25

Crimping Capacity:

• Copper (Cu) DIN 120–625 mm² using M25 die set – Crimping force: 250 kN

• Aluminum (Al) DIN 95–500 mm² using M25 die set – Crimping force: 250 kN

• Copper (Cu) DIN 10–400 mm² using M23 die set with M25 adapter – Crimping force: 130 kN

• Aluminum (Al) DIN 10–300 mm² using M23 die set with M25 adapter – Crimping force: 130 kN

• Overhead line crimping: AFL6-70 to AFL6-240

Die Compatibility:

• M25 die series

• M23 die series with M25 adapter

Tool Specifications:

• Crimping head: U-type head, secured with a locking pin

• Head rotation: 360° rotating head

• Weight: 9.5 kg

• Piston stroke: 50 mm

• Crimping time: 2–5 seconds

• Operating pressure: 700 bar

• Crimping force: 250 kN

• Working range:

  • Aluminum DIN: 10–500 mm²

  • Copper DIN: 10–625 mm²

  • For 10–400 mm², M23 die series is recommended

  • For Cu DIN 16–400 mm², M23 die series is dedicated

Power Supply:

• Battery: Makita Li-Ion 18.0 V / 5.0 Ah

• Charger: With active cooling system

  • Battery type: Lithium-Ion (Li-Ion)

  • Battery capacity supported: 1.3–5.0 Ah (standard: 5.0 Ah)

  • Charging time: Approx. 22 minutes

  • Charger input voltage: 230 V

• LED indicators:

  • Battery charge level

  • Crimp count and battery info (LED panel)

• Worklight: Integrated LED for work area illumination (Night Mode)

Hydraulic System:

• Automatic pressure relief valve

• Manual/automatic piston return

• Immediate piston retraction or cutting stop

• Two-stage hydraulic pump: idle speed + high-pressure mode

Ergonomics & Design:

• Composite handle

• Belt/pouch attachment hook

Included in the Set:

• Battery-powered crimping tool E25

• Makita charger

• Makita battery E18/5 – 5.0 Ah

• Plastic carrying case

• User manual

Optional Accessories:

• Additional battery

• Interchangeable M25 dies:

  • DIN 120–625 mm²

  • AFL 6–70 to AFL 6–240

• M23 die adapter (M25/adapter) with die types:

  • MR23 – Standard Cu dies

  • MD23 – Copper DIN dies

  • MA23 – Aluminum DIN dies

  • MRU23 – Dies for reshaping sector-shaped conductors

  • ME23 – Dies for crimping AsxSn connectors
