Battery-powered crimping tool / cutting tool 6-400 mm2 series M23

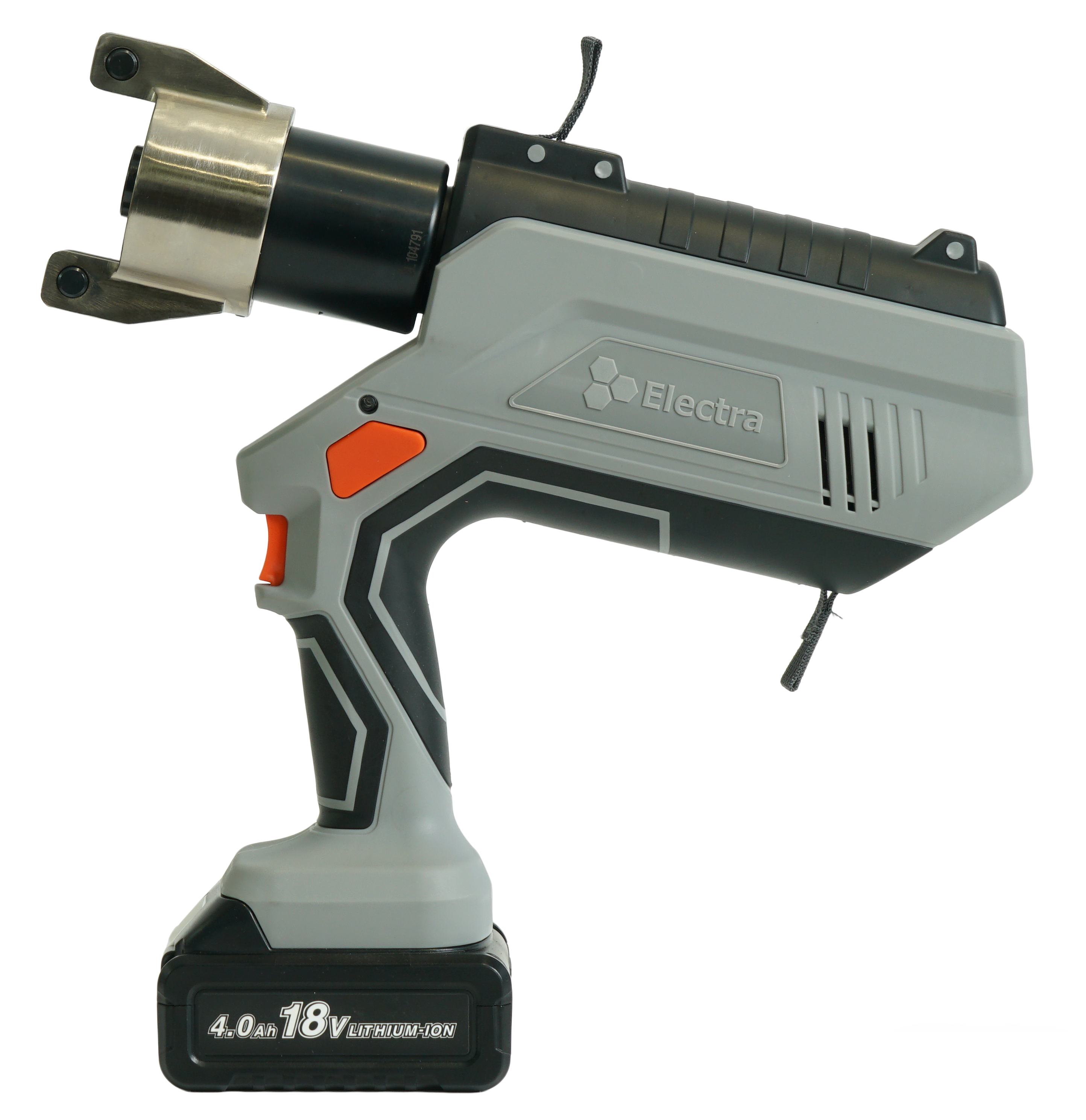

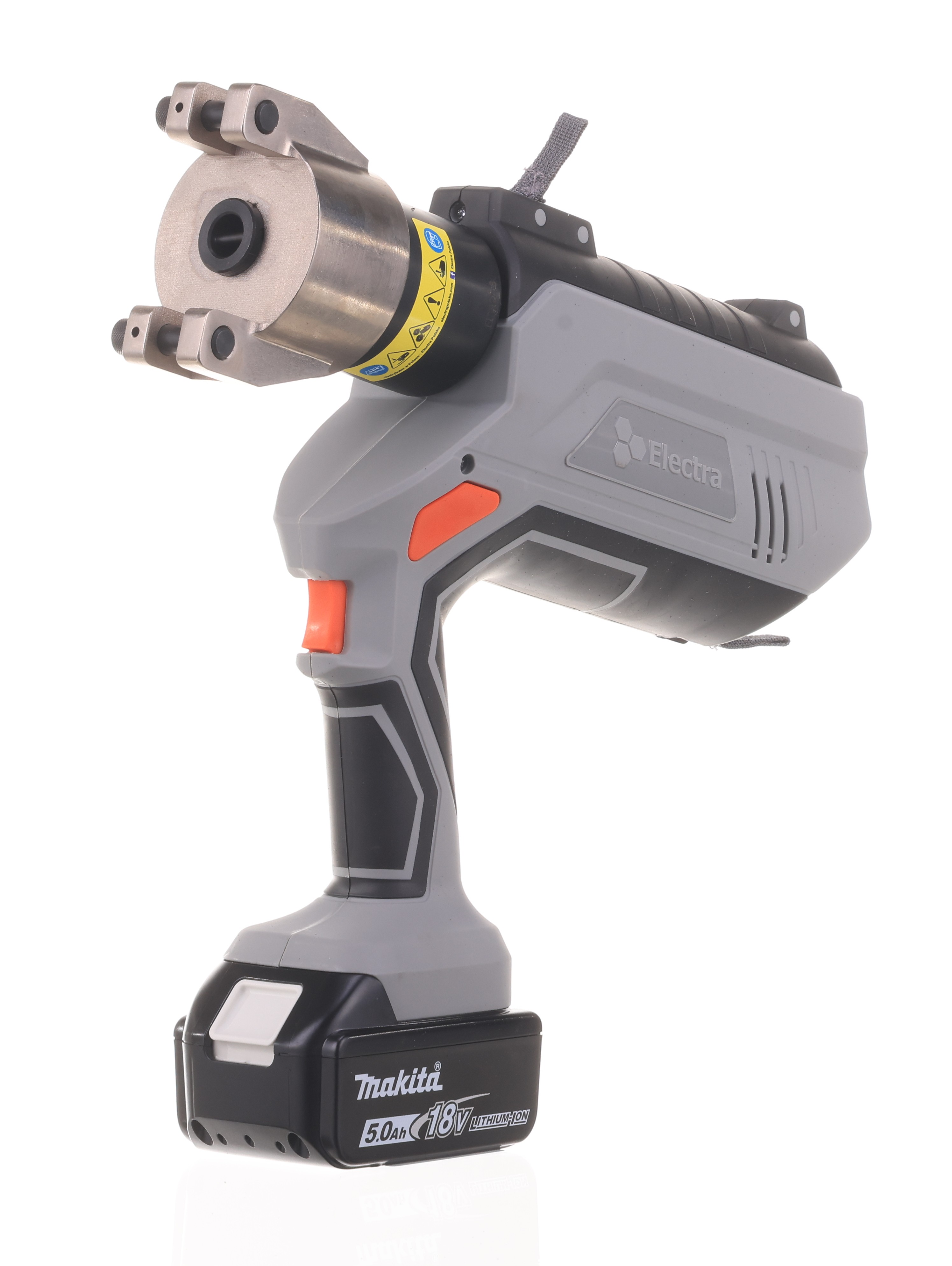

Universal Multi-Tool – Cutting & Crimping

Model: E23 UNI

Description: Multifunctional tool

Die series: 23 series crimping dies

Head type: Snap-lock / Latch type head

Operating pressure: 700 bar

Force: 130 kN

Weight: 4.6 kg (excluding heads)

Operating Range

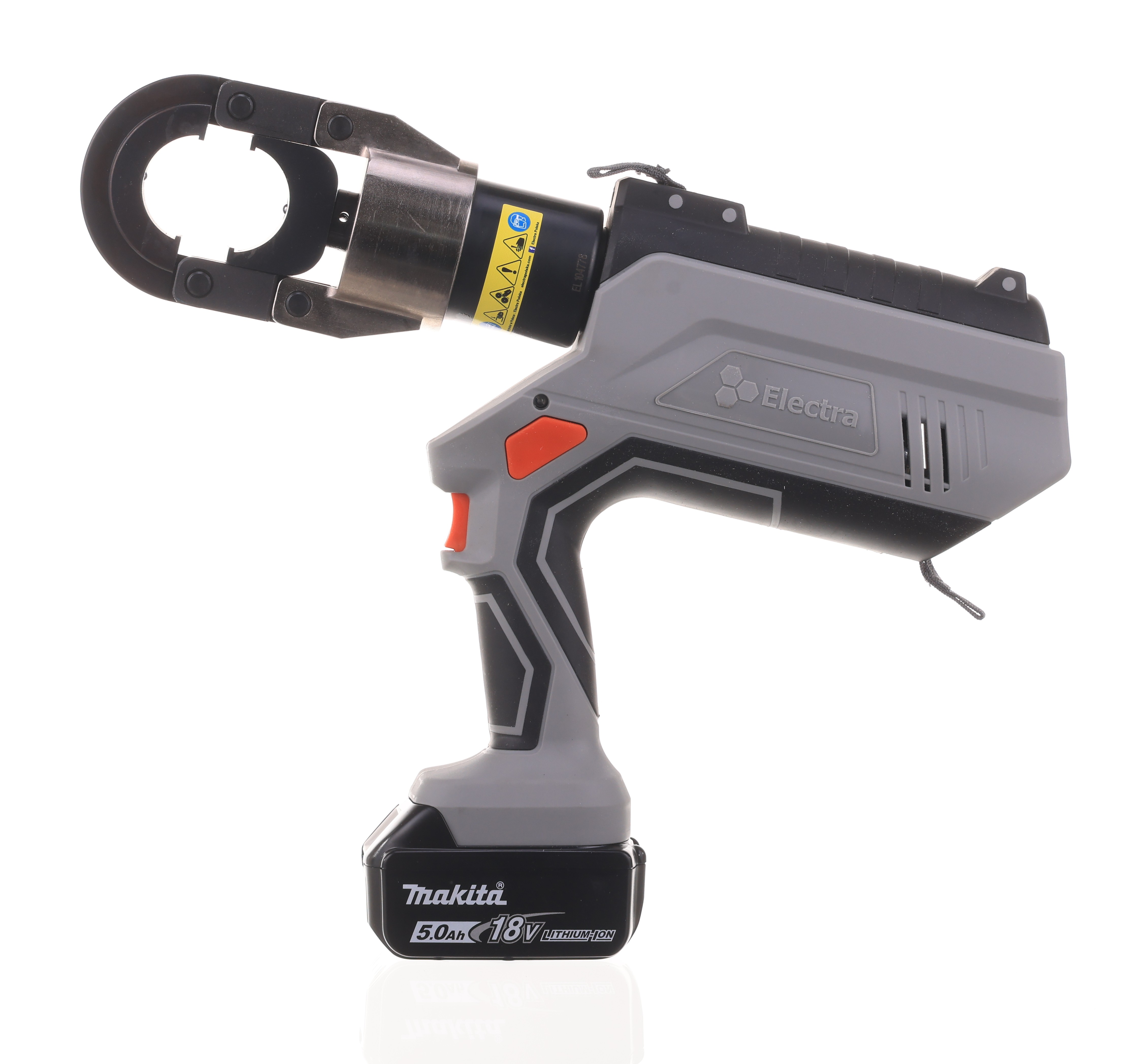

• Interchangeable crimping head: 6–400 mm²

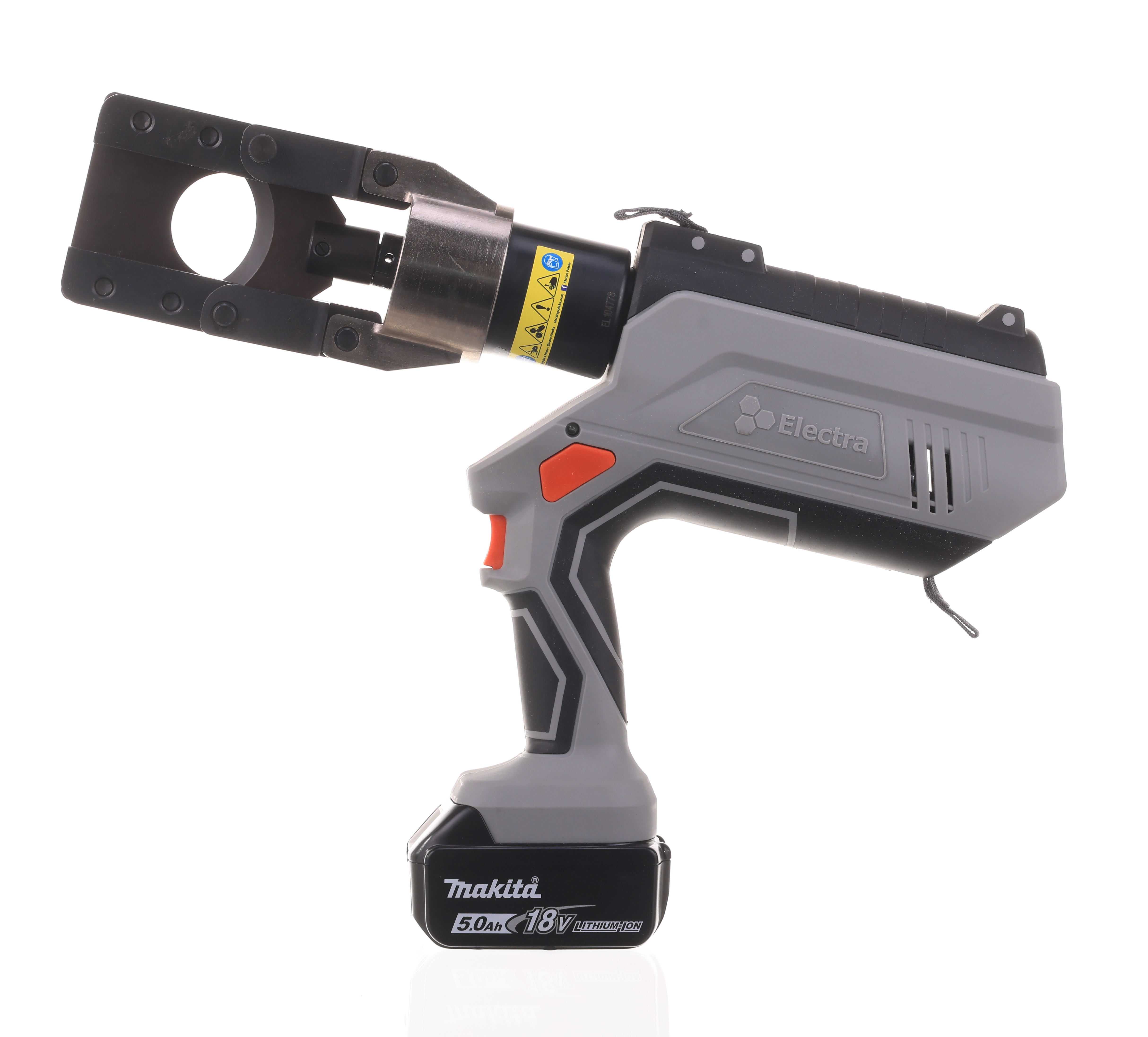

• Interchangeable ACSR (AFL) cutting head: max. 44 mm

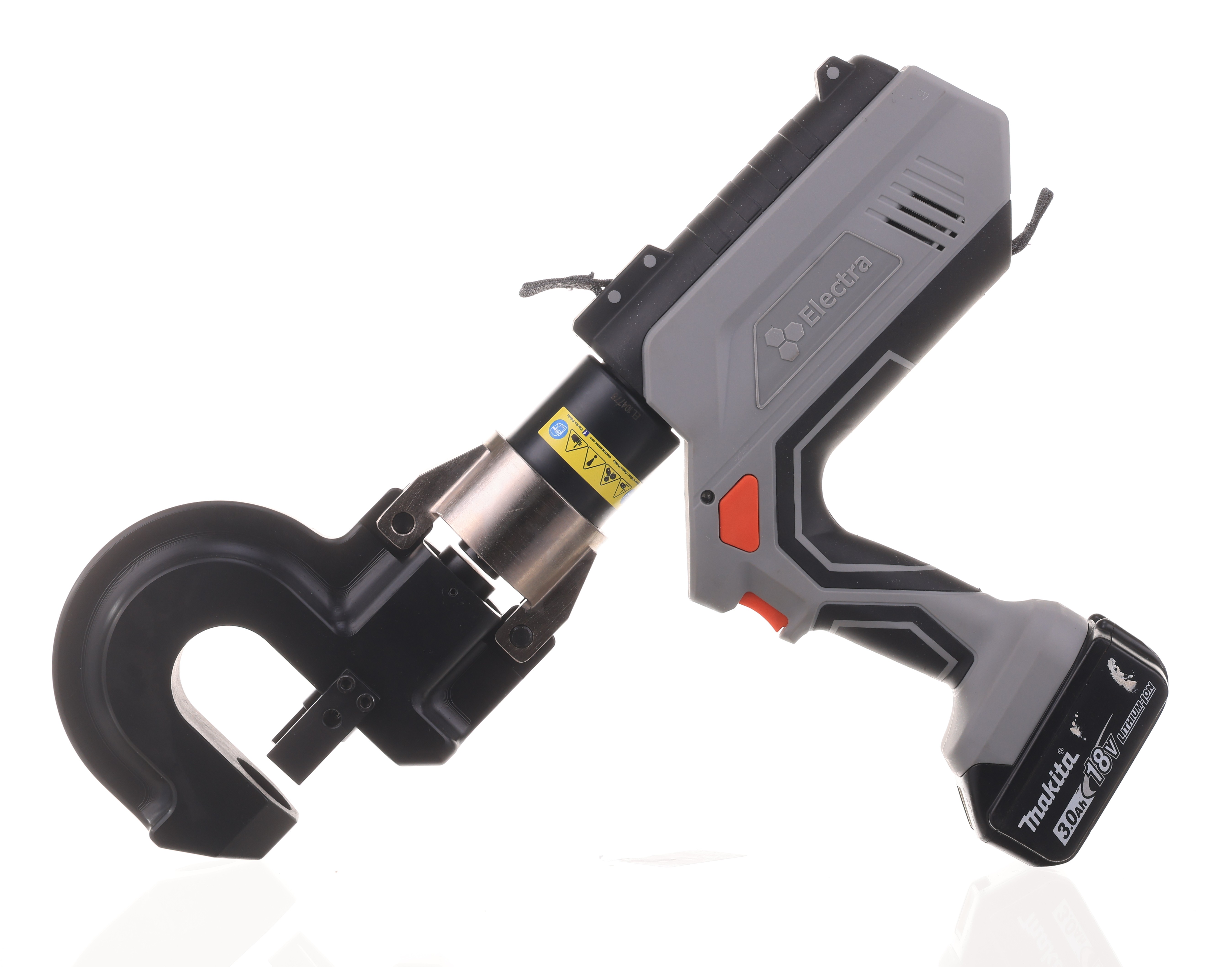

• Interchangeable punching head: for steel angles and Al/Cu busbars up to 6 mm

  • Included punch and die sizes: 10.5 mm, 13.5 mm, 17.5 mm

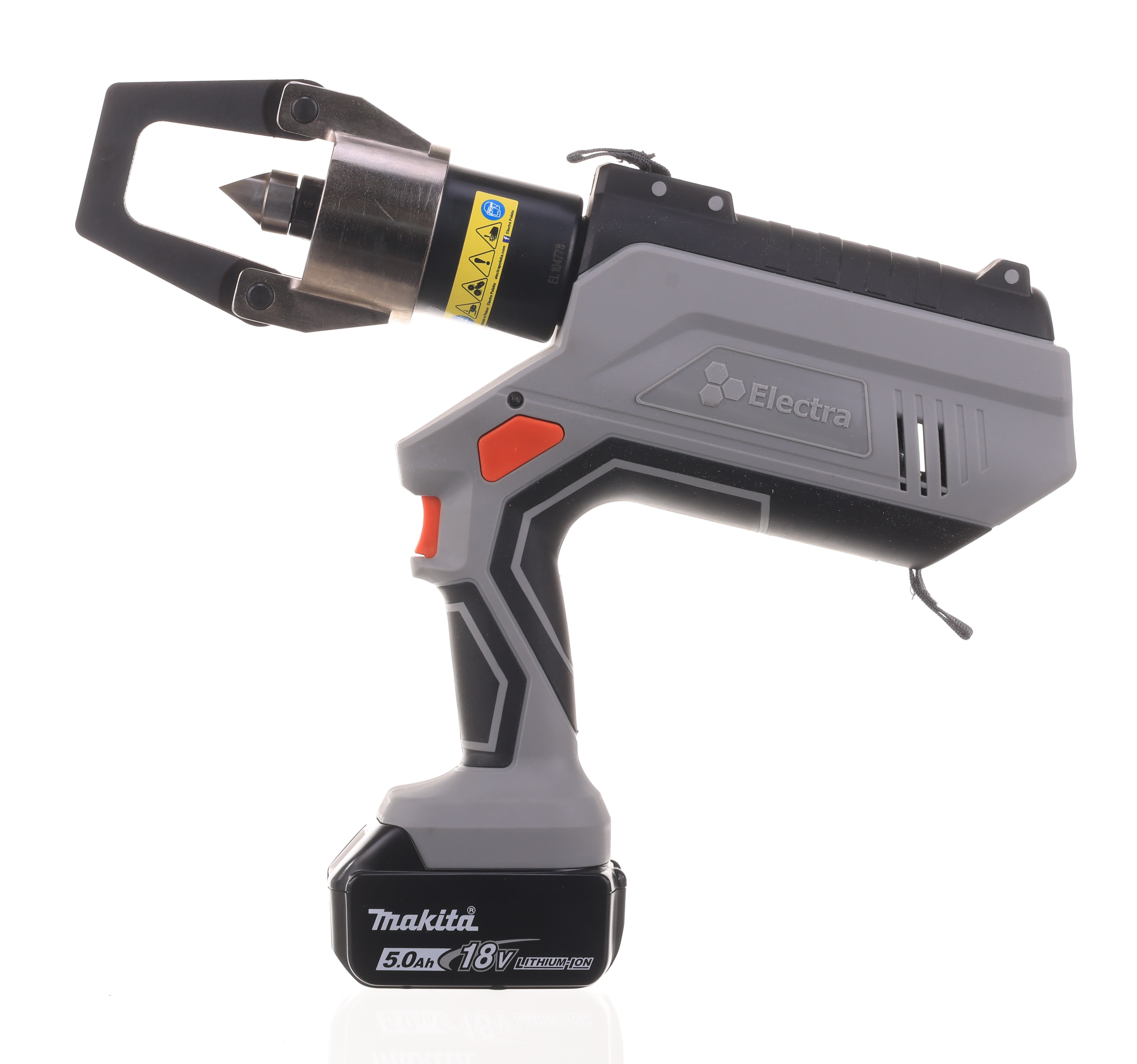

• Interchangeable nut splitting head: max. 36 mm

Technical Specifications

• Crimping/cutting cycle time: 2–5 seconds

• Rotating head: 360°

• Oil type: Biodegradable

• Operating temperature range: -20°C to +40°C

• Dimensions (H x W x D): 590 x 140 x 510 mm

Power Supply

• Battery: Makita Li-Ion 18.0 V, 5.0 Ah

• Charger with active cooling system: built-in fan cools the battery during charging

• Battery type: Lithium-Ion (Li-Ion)

• Battery capacity: 1.3–5.0 Ah (5.0 Ah battery included as standard)

• Charging time: approx. 22 min

• Charger power supply: 230 V

Features & Functions

• Battery charge indicators: LED charging status and battery capacity indicator

• LED display: provides battery data and cycle/crimping count

• Automatic pressure relief valve: (Automatic safety valve)

• Piston return: Manual / automatic

• Instant stop: immediate operation stop and piston return

• Worklight: LED for illuminating the work area (Night mode)

• Two-stage hydraulic system: double stage pump (idle/low pressure speed and high pressure speed)

• Composite handle * Hanging/belt loop: for belt attachment or suspension

Kit Includes:

• E23 UNI multifunctional tool

• Interchangeable crimping head (6–400 mm²)

• Interchangeable ACSR cutting head (44 mm)

• Interchangeable punching head for steel angles and Al/Cu busbars (6 mm)

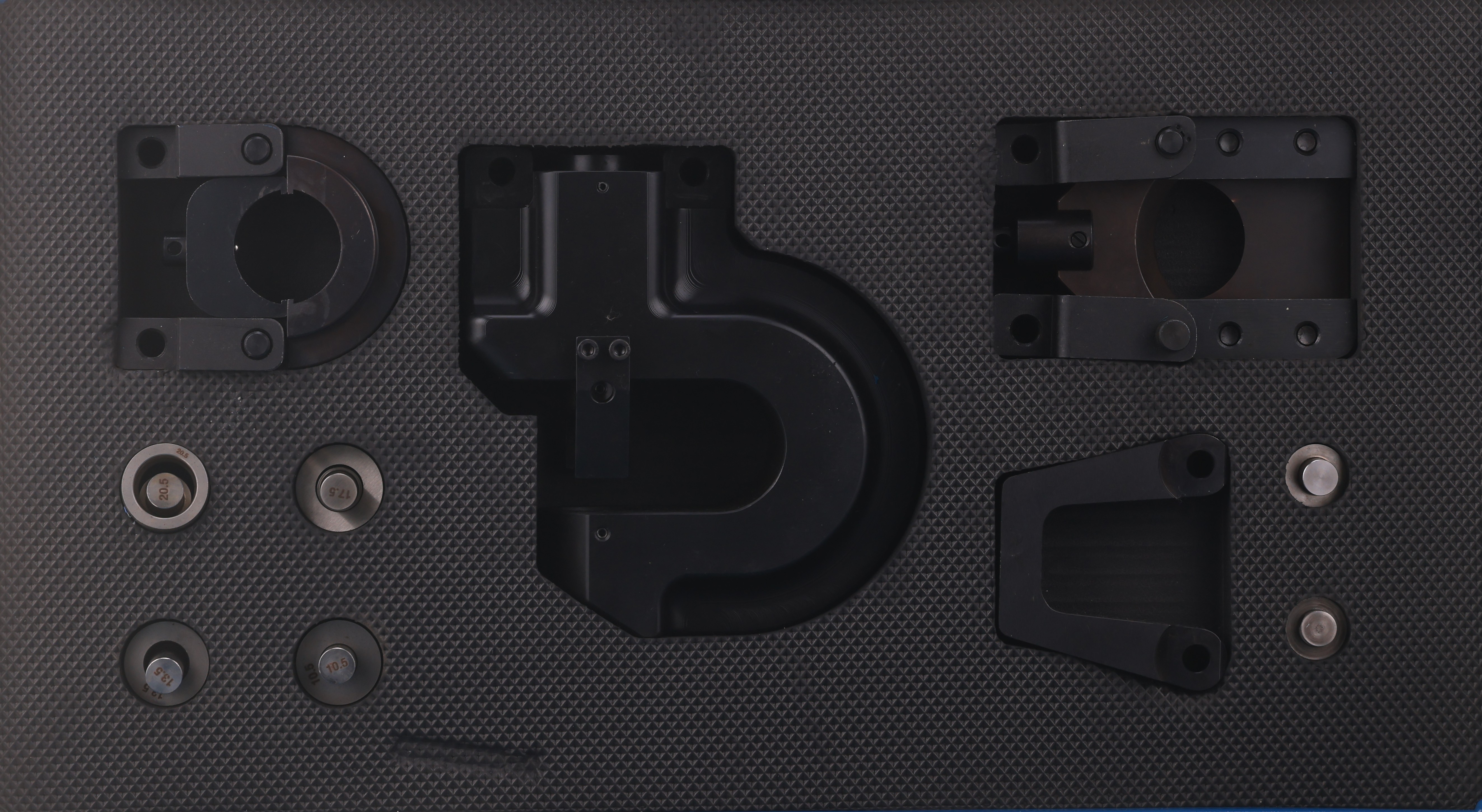

• Punch and die set: 10.5 mm, 13.5 mm, 17.5 mm

• Interchangeable nut splitting head (max. 36 mm)

• Makita charger

• Makita E18/5 battery (5.0 Ah capacity)

• Plastic carrying case

• User manual

Options:

• Additional battery

• Mains power adapter (AC adapter)

• Available crimping dies: * MR23 – Dies for standard Cu lugs

  • MD23 – Dies for DIN Cu lugs

  • MA23 – Dies for DIN Al lugs

  • MRU23 – Pre-rounding dies for sector-shaped conductors

  • ME23 – Crimping dies for insulated overhead line connectors (AsxSn)
