Battery winch 1000 kg speed 11,6 m/min
Description
Technical data
| Battery | Li-ion, 82 V – 2.5 Ah (not included in the set offered) |
|---|---|
| Charger | (not included in the set offered) |
| Operating time on a full battery charge | 45 minutes |
| Drive | Electric motor 1.0 kW |
| Overload protection with automatic cut-out | Yes |
| Maximum pulling force | 1000 kg, with an additional pulley block 2000 kg |
| Dimensions | width 30.2 cm, length 31.8 cm, height 31 cm |
| Duty cycle | continuous |
| Winch drum | 76 mm |
| Weight | 9.5 kg |
| Number of speeds | 3 |
| Speed | 1 - 8.1 m/min |
| Speed | 2 - 10 m/min |
| Speed | 3 - 11.6 m/min |
| Recommended model | 1102 |
| Minimum diameter | 10 mm |
| Maximum diameter | 13 mm |
| Recommended diameter | 12 mm |
| Gear ratio | aluminium alloy, three-stage, heat-treated, gear ratio: 200:1 |
Product description

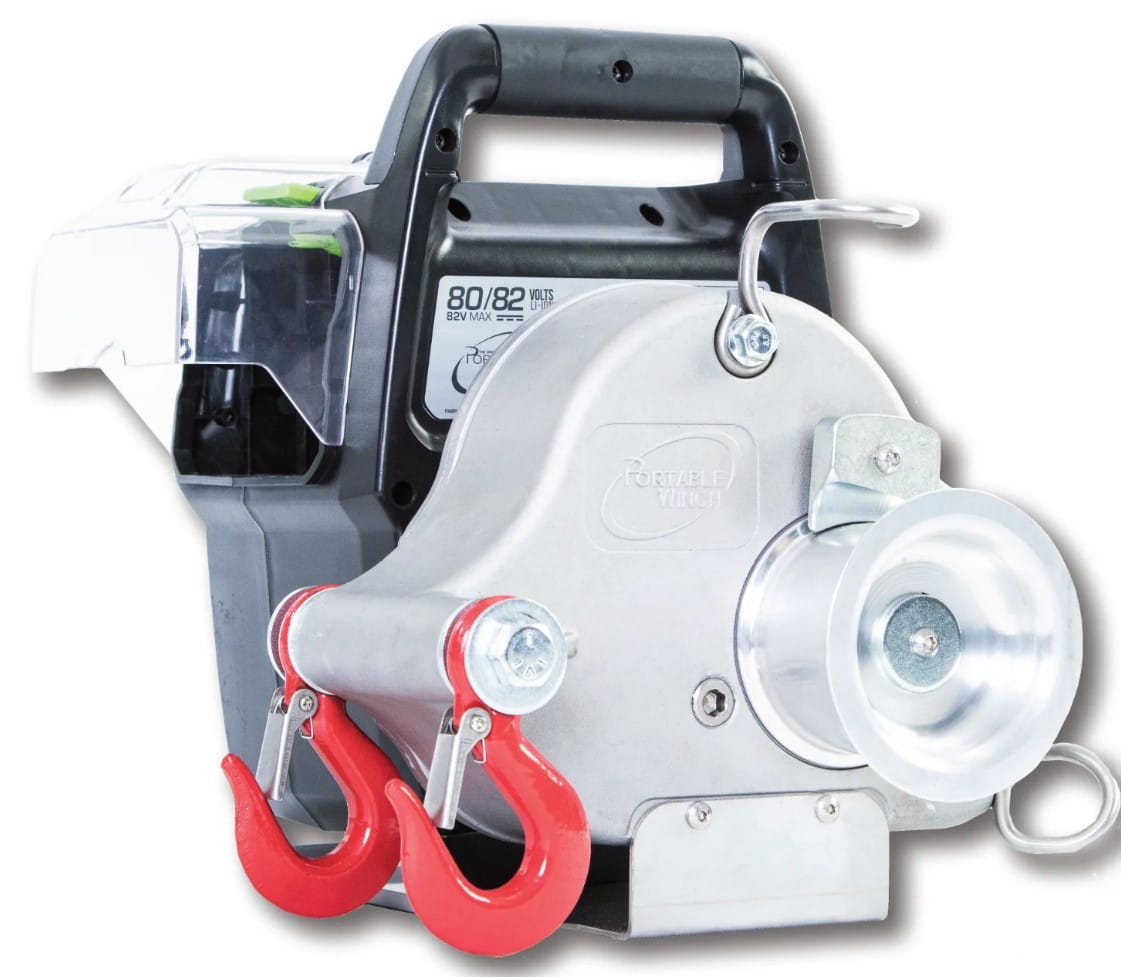

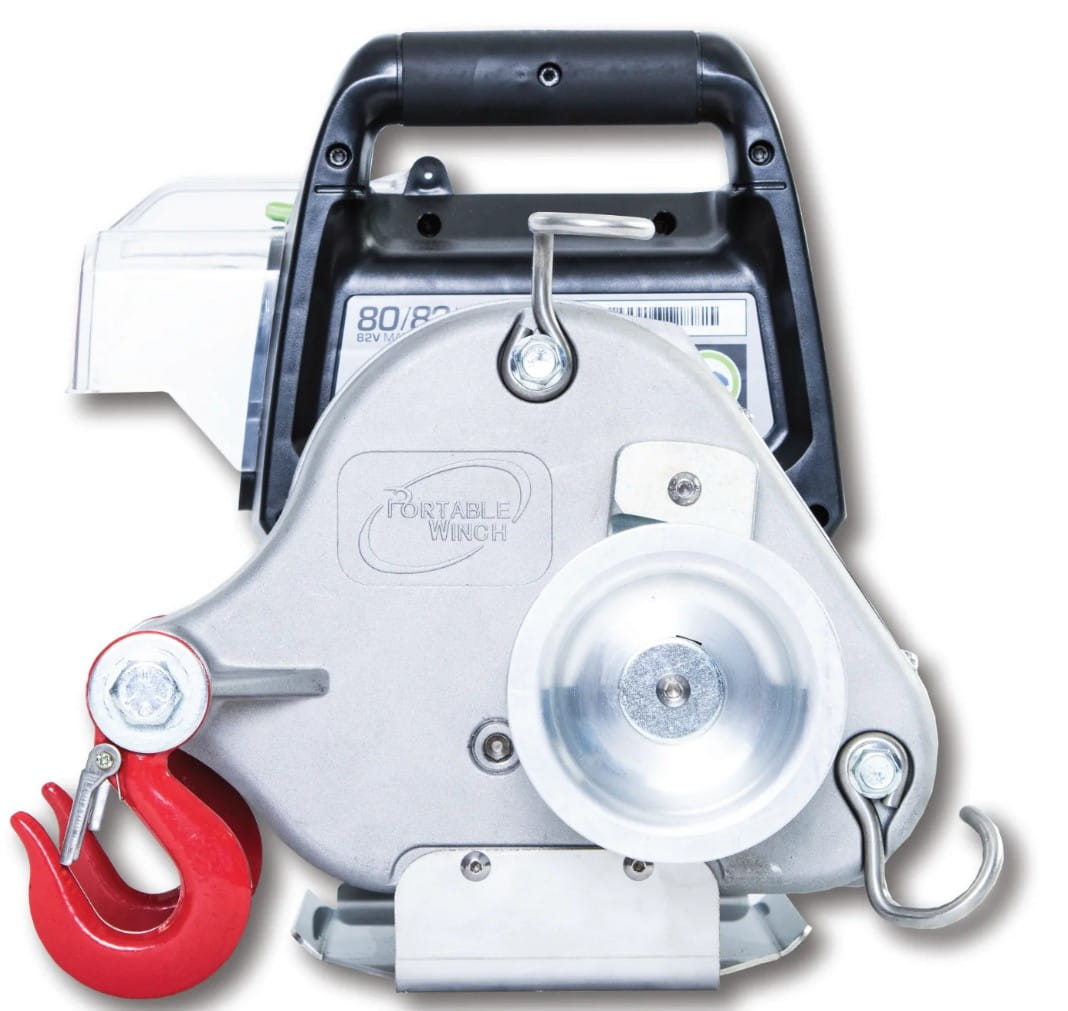

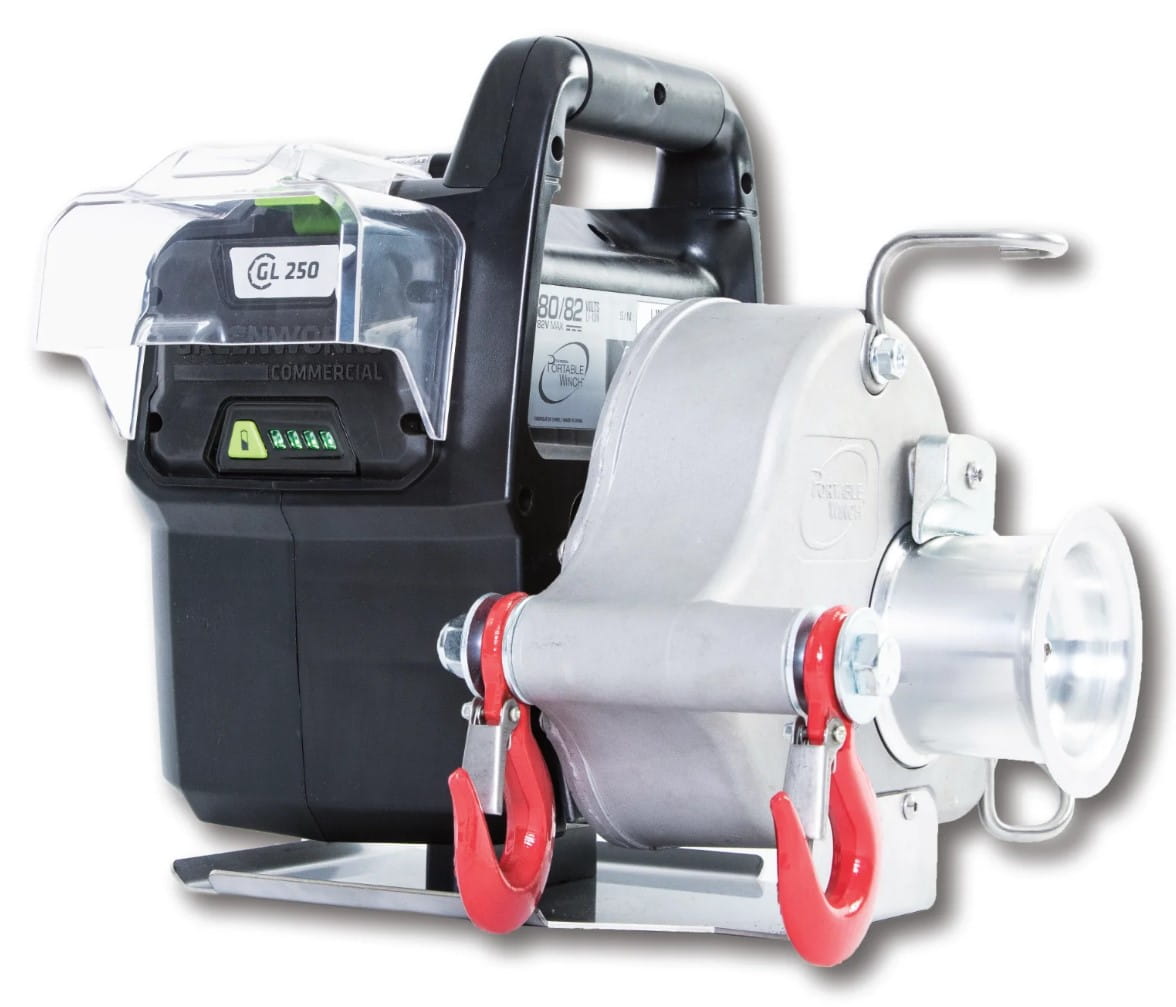

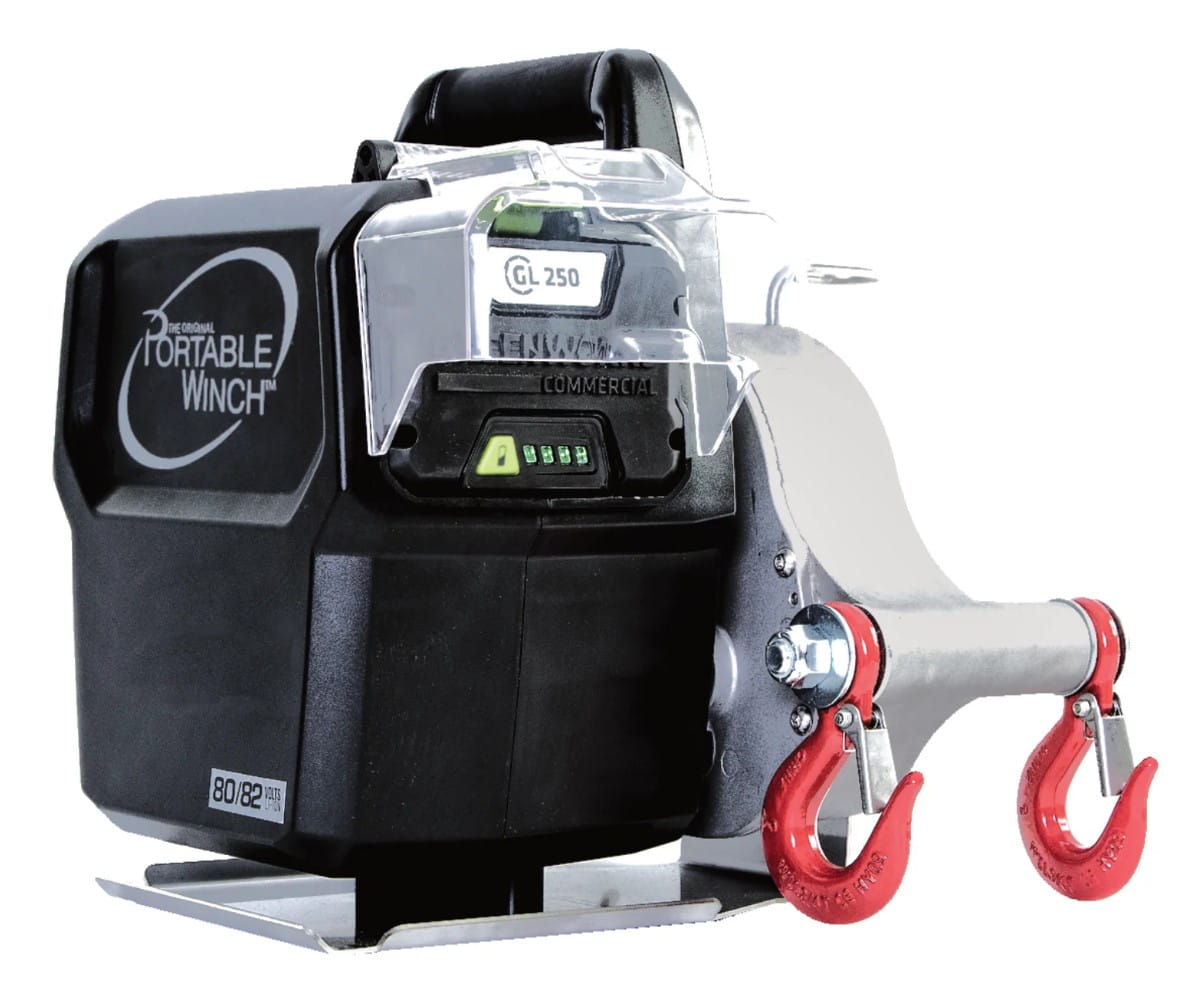

The PCW 3000-Li cordless winch is an excellent helper on the construction site. The PCW 3000-Li winch is regarded as one of the greatest innovations of the last 20 years. Universal use in electrical and mechanical installations, etc. The battery winch is fully reliable and can be quickly mounted on a tree, pole or trunk, as well as on a vehicle tow hook. Simple and convenient handling allows quick preparation for work, and the winch is practically maintenance-free. The rope length is unlimited (recommended rope model 1102). Further advantages of the device are low weight, reliability and constant pulling force. The winch is quiet and environmentally friendly, with no exhaust emissions, and works without odour or smog.
Lightweight
Quiet
Portable
Environmentally friendly – zero emissions
Reliable
Easy to operate
No odour or smog
Constant pulling force
Any rope length
Low weight allows trouble-free transport and storage. Zero emissions and energy savings keep the air clean and allow use indoors.
High performance – constant pulling force. The lithium-ion battery provides constant power from the beginning to the end of the duty cycle.
Energy efficiency – a robust and efficient high-quality winch ensures optimum performance. Excellent weight-to-energy ratio.
Durability – high-quality components ensure continuous operating time and a long service life of the device.

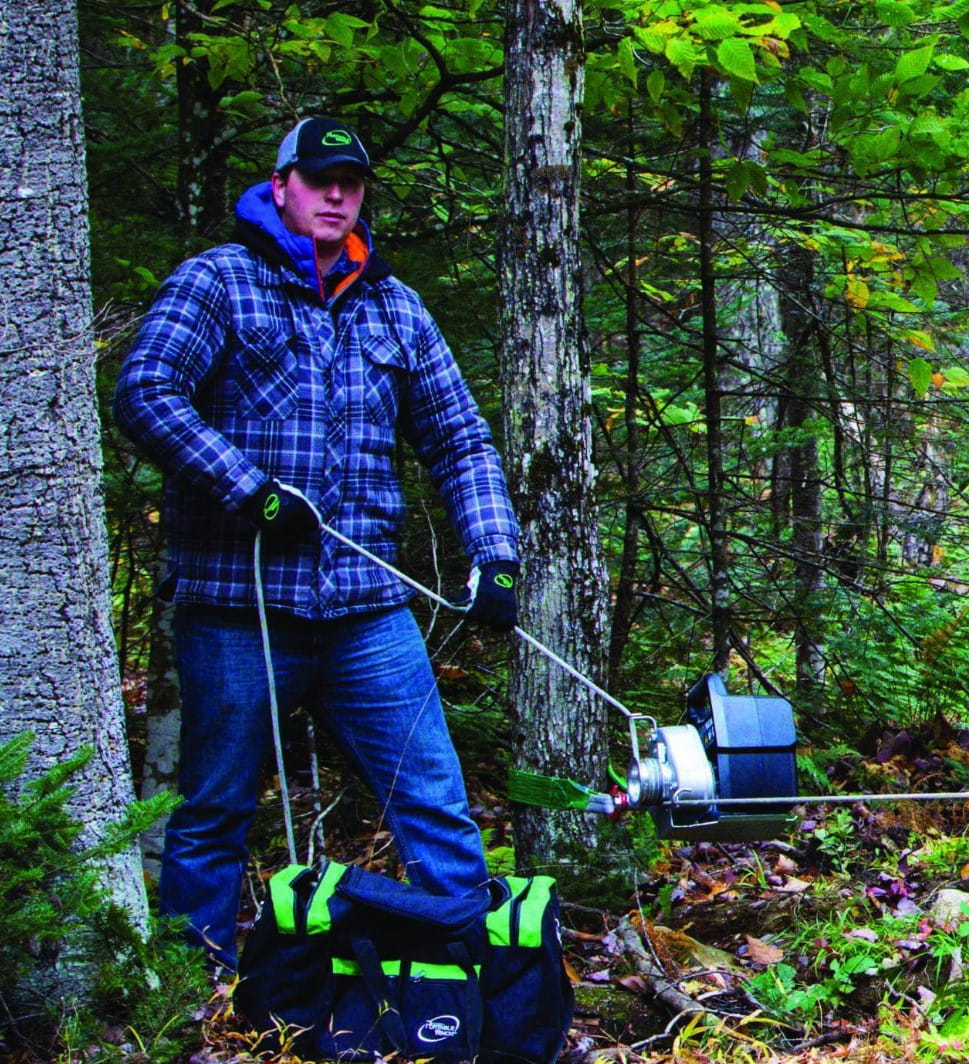

Quick installation and ease of use – quick attachment anywhere within seconds.
Synthetic rope – no more steel rope. The polyester rope has low stretch and very good friction properties. It offers unrivalled ease of use.

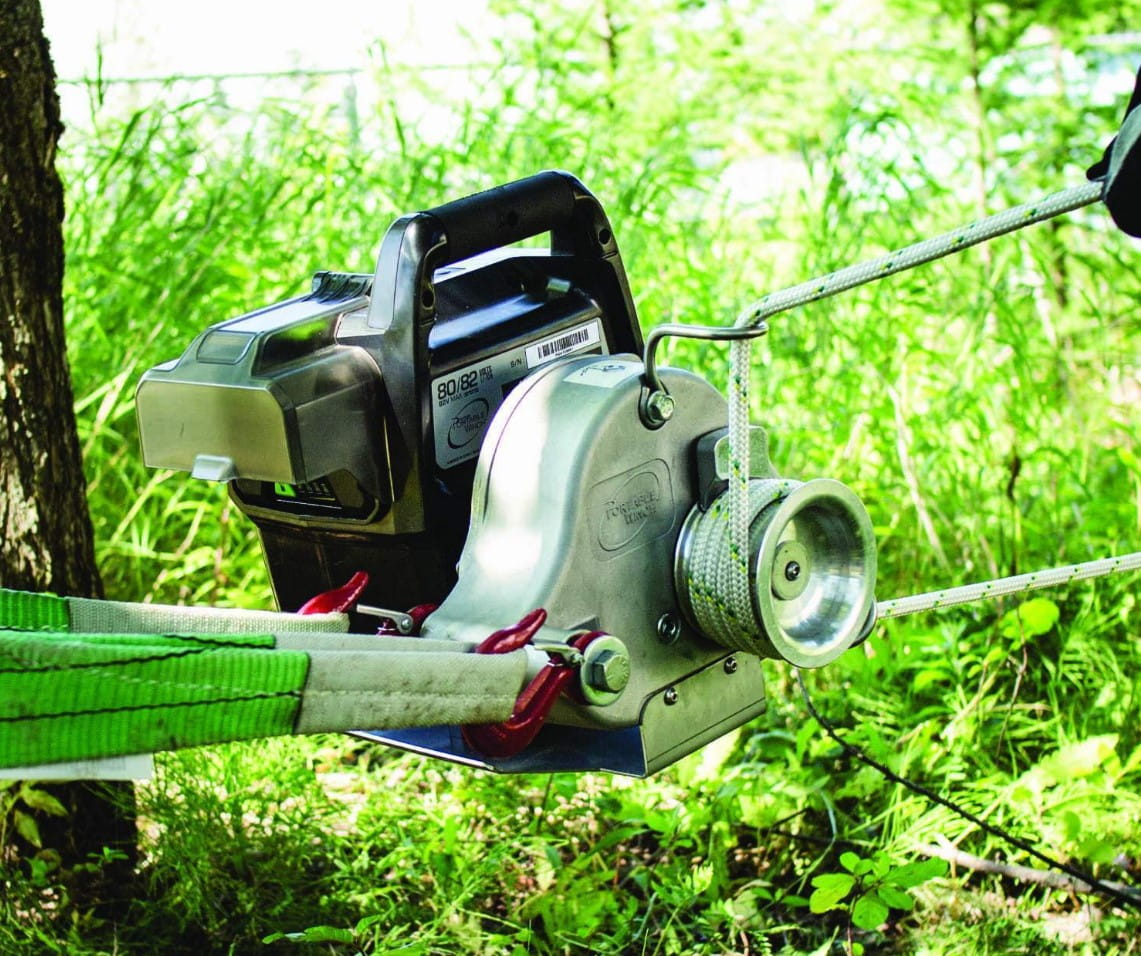

Unlimited rope length – thanks to the capstan drum principle, the rope is not stored (wound on the drum). The rope only passes over the capstan, without changing the pulling parameters.
Low noise, no odour or fumes – the winch can be used both outdoors and indoors without the risk of poisoning by harmful volatile substances.
Key features
- Rope – (double-braided low-stretch polyester rope, unlimited length):
- Aluminium alloy
- Shafts with ball bearings
- Package contents. The price of the device includes:
- 1 x PCW3000-Li Portable Winch cordless winch.
- (charger and battery not included)

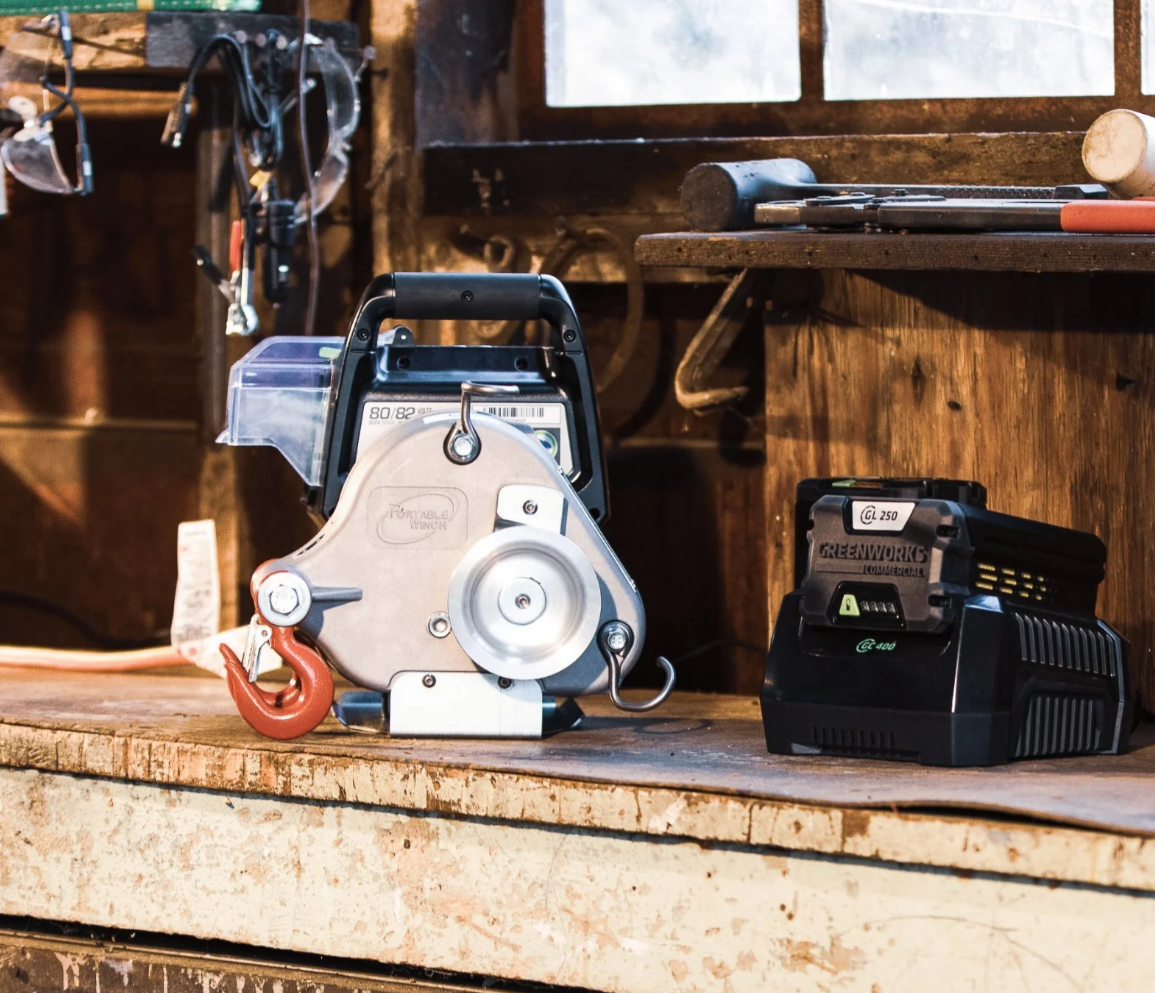

Battery
The operating time of the 82 V – 2.5 Ah battery is 45 minutes. The Li-ion battery can be recharged at any time without risk of damage. The self-discharge rate is very low at 1.25 %/month. The battery has a display showing the remaining operating time.
