Cable Stripper for Primary Insulation - Handle
Description
Model S30

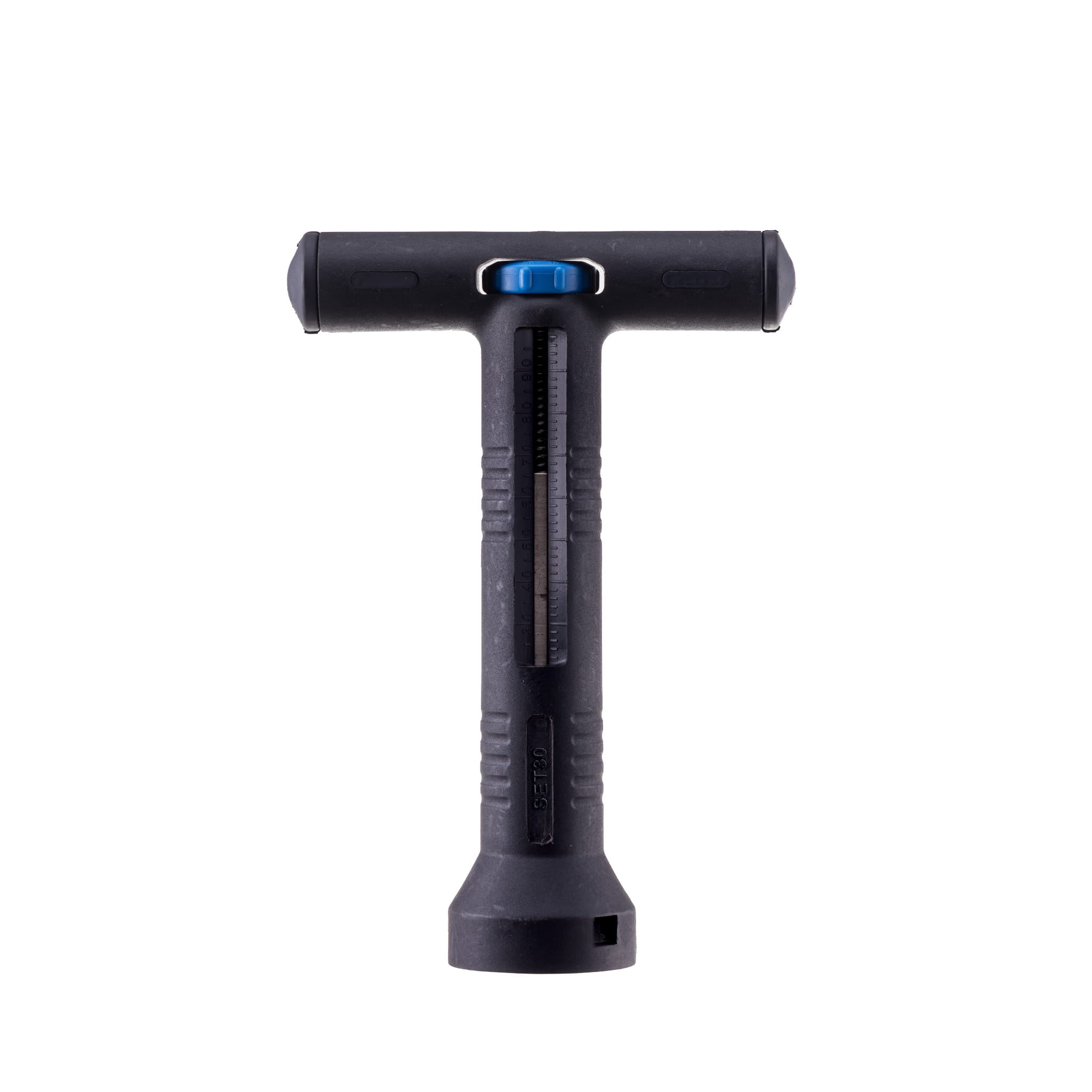

Universal handle
Main stripping sockets
Technical characteristics:
Working range : 25-240 mm2
Insulation thickness : Replaceable heads
Application : All types of primary insulation
Technical characteristics:
- Suitable for 20/22kV MV cables.
- Insulation stripping length adjustable
From 20 to 100 mm
- Scale marked on the handle
- Quick assembly of the head
- Cutting in the direction indicated by the arrow
- Replaceable blade
Possible attachments ( option )
S30/1 - Head 25 mm²
S30/2 - Head 35 mm²
S30/3 - Head 50 mm²
S30/4 - Head 70 mm²
S30/5 - Head 95 mm²
S30/6 - 120 mm² head
S30/7 - 150 mm² head
S30/8 - Head 185 mm²
S30/9 - Head 240 mm²
