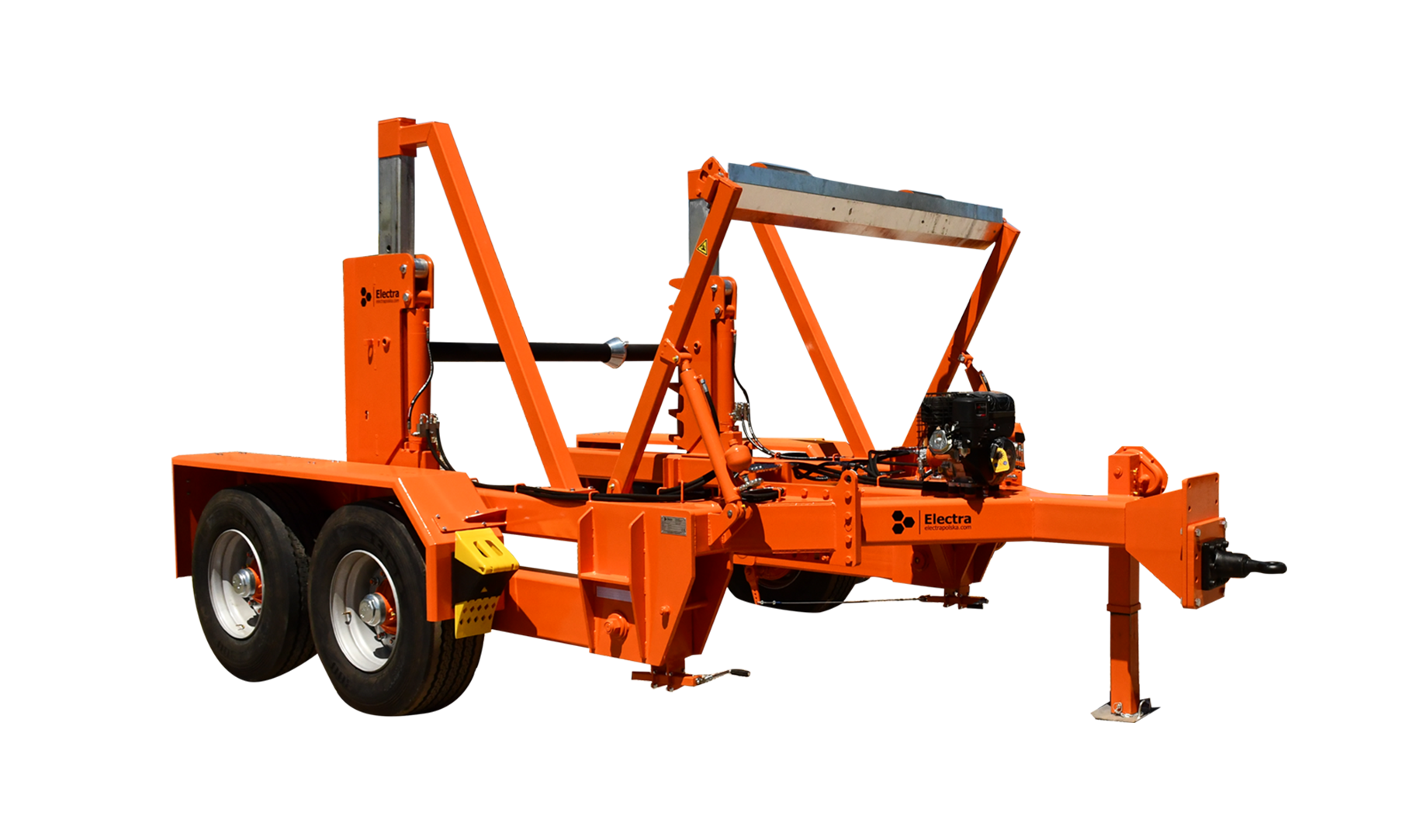

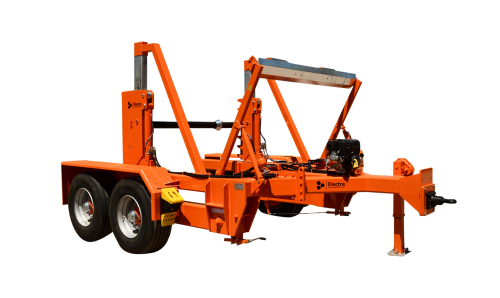

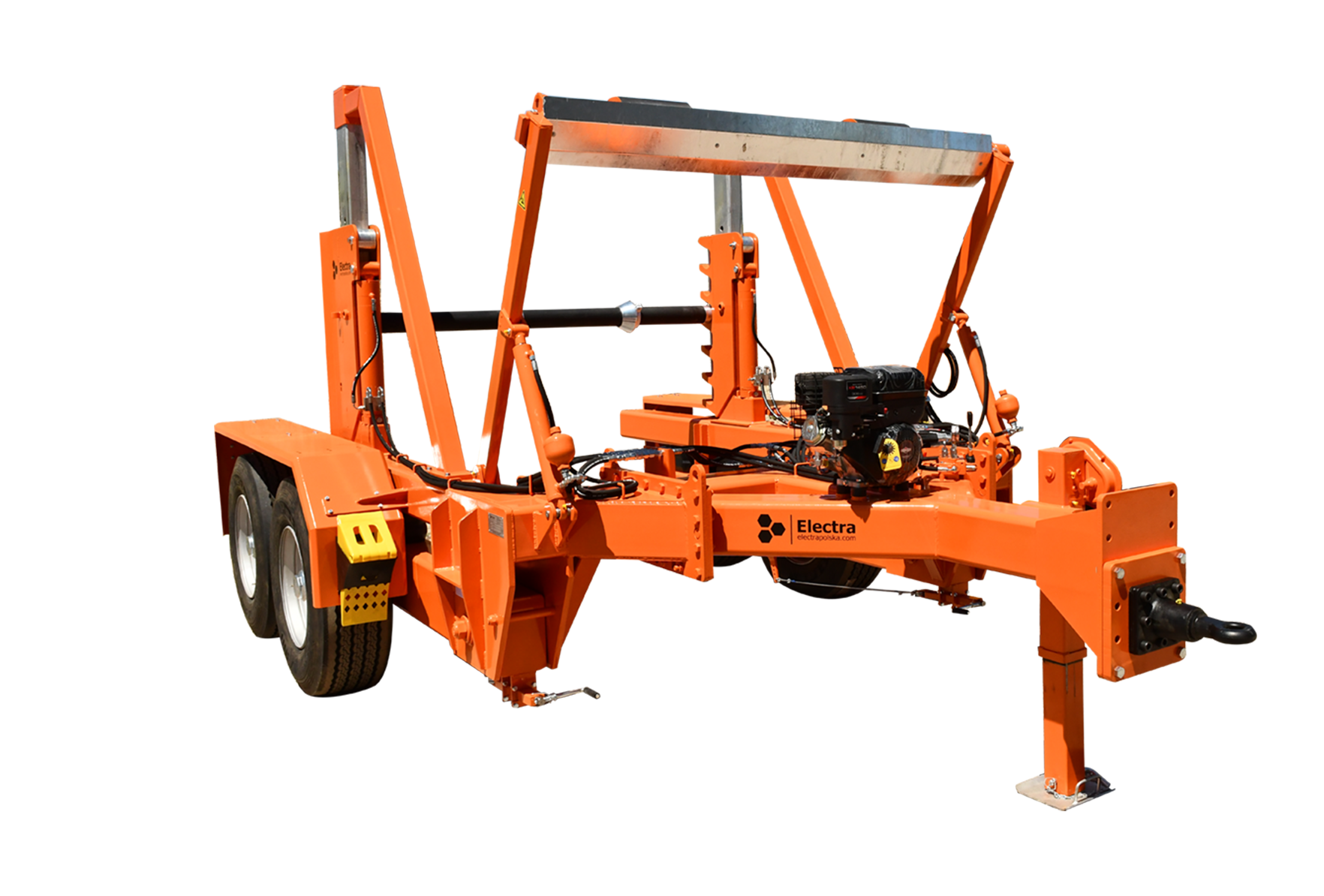

Cable drum trailer 30 000 kg
Description
Cable trailer
Drum weight 30,000 kg
Trailer weight 4,900 kg
Permissible total weight 34,900 kg
Drum dimensions ø 2050-4800 mm
Maximum width of drum 2500 mm
Bearing axle 127 mm
Maximum speed 20 km/h without homologation
Length 5750 mm
Height 3000 mm
Width 3780 mm
▪ Drum loading and unloading drive
▪ Drum rotation drive
▪ Pneumatic braking system
▪ Central hydraulic hand pump with lifting balance system
▪ Parking brake
▪ Height-adjustable front support wheel
▪ Quick and safe loading by one person
▪ Stabilizing feet during loading and unloading
▪ Durable steel construction
▪ Bearing axle with cones to protect the drum
▪ Delivered unfolded - 3 components
▪ Trailer for transporting drums on site , no road transport possible
Options :
AC 06 Installation of electric lighting -
