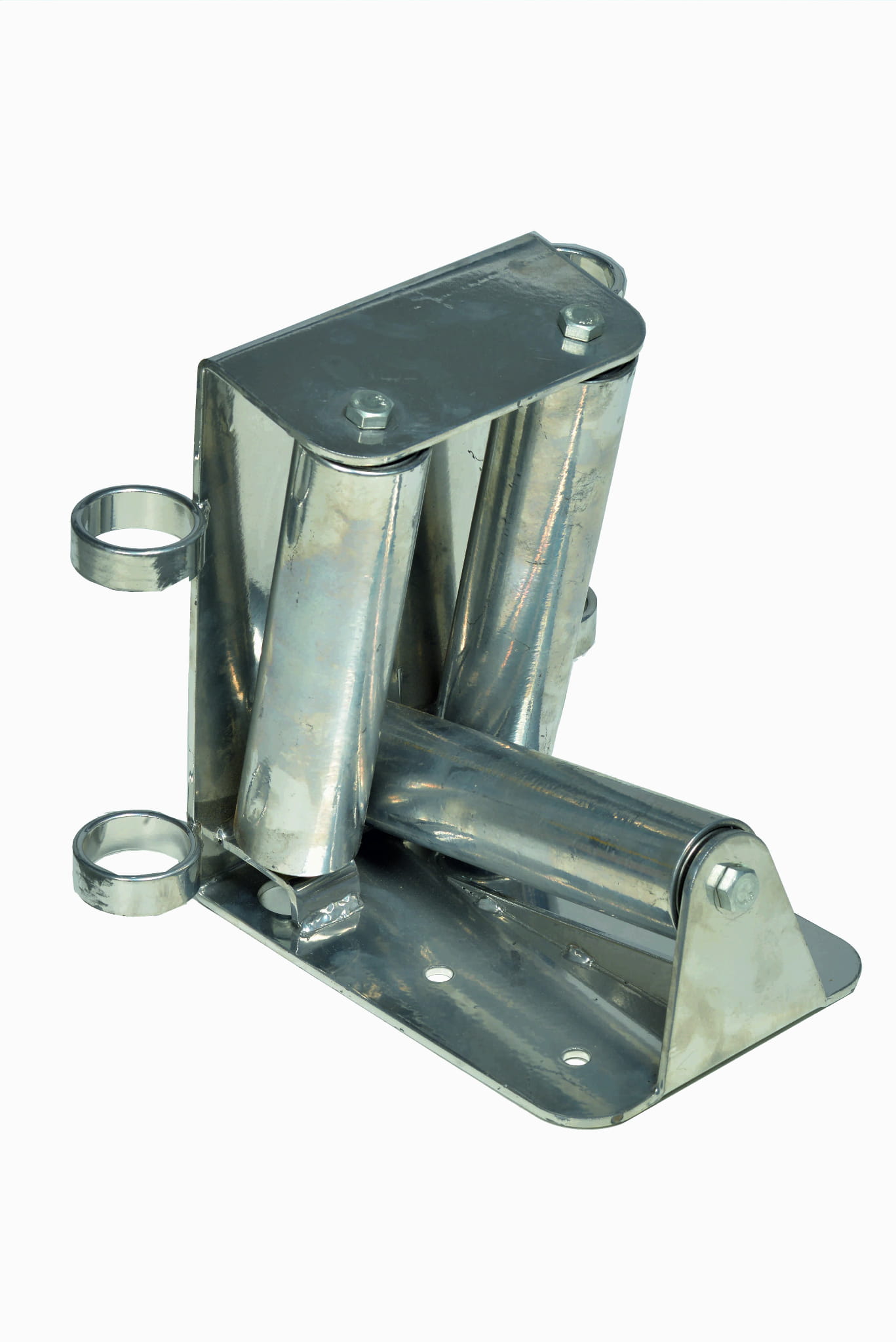

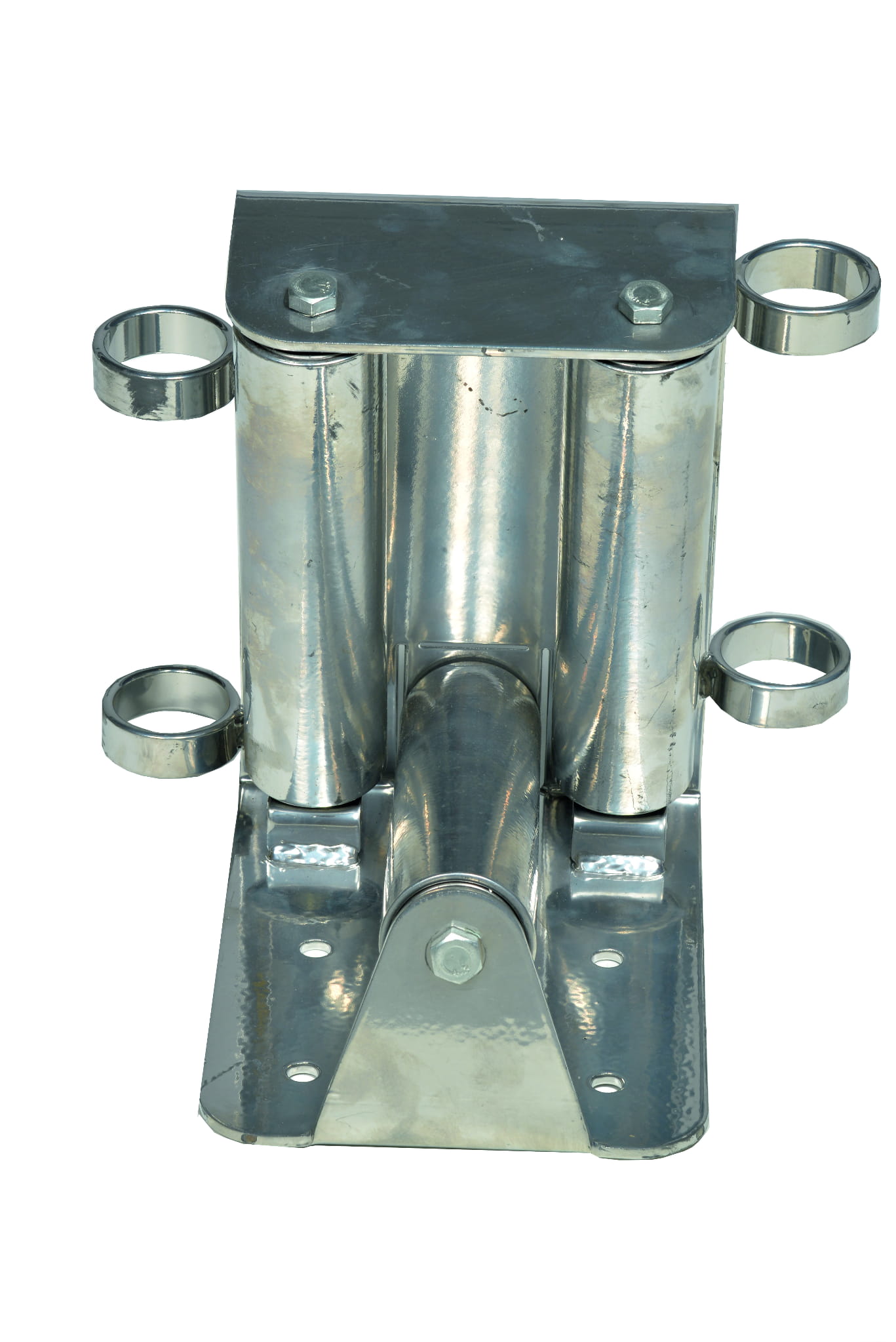

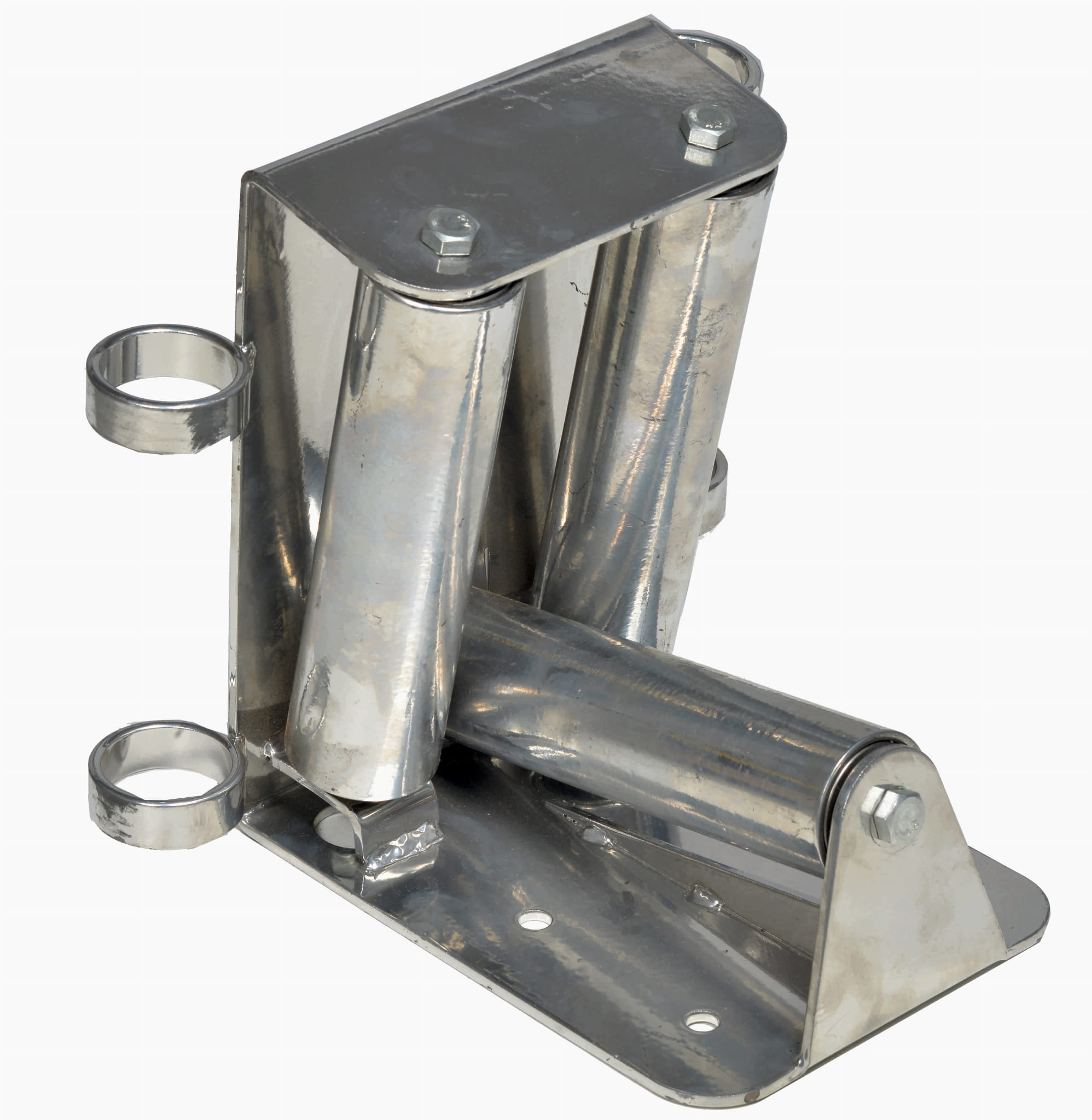

Corner cable roller 3x285 mm
Description
Corner (angle) cable roller
Technical data
| Assembly of | 3 rollers - one horizontal + two vertical |
|---|---|
| Roller material | steel 285x60 mm - with bearings |
| Load capacity | 500 kg |
| Maximum diameter of cable or bundle | up to 200 mm |
| Dimension | 290x320x300 mm |
| Weight | 12.3 kg |
| Steel rollers | 285x60 mm |
Product description
The corner cable roller is a reliable element in power cable pulling work at bends

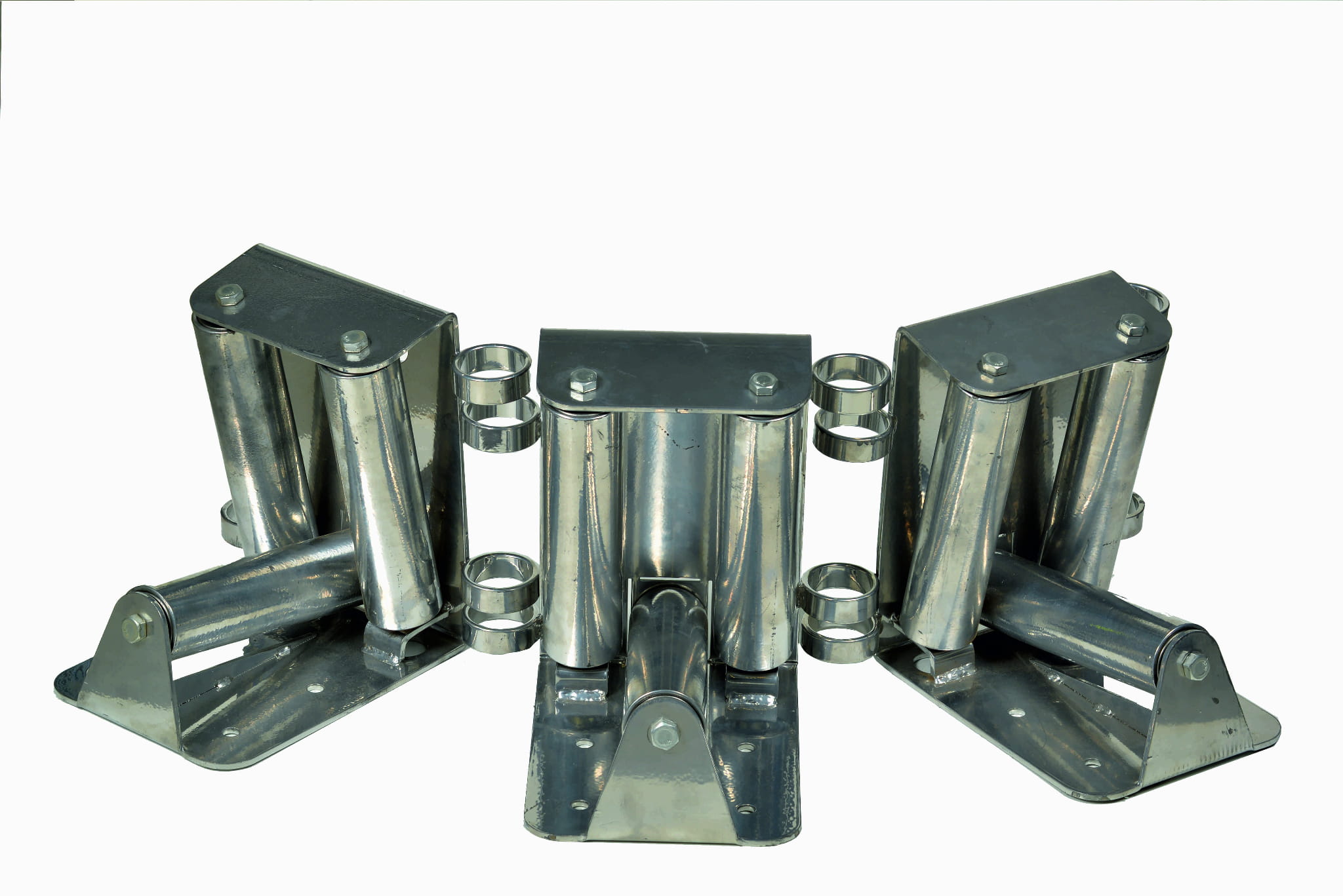

RECOMMENDED! Use a larger number of rollers to reduce the bend radius, which increases the service life of the rollers and bearings
made of high-quality, abrasion-resistant steel
construction made of steel tubes reduces the weight of the product
durability and quality in one product
The corner cable roller is the basic solution for cable laying and pulling work at bends (corners). It speeds up cable pulling and at the same time eliminates the risk of damage to the cable during pulling.
Steel construction resistant to weather conditions: sun, rain, snow, mud.
Key features
- Protected steel frame
- covered with a galvanic coating
- steel roller with bearings
- Where is it used?
