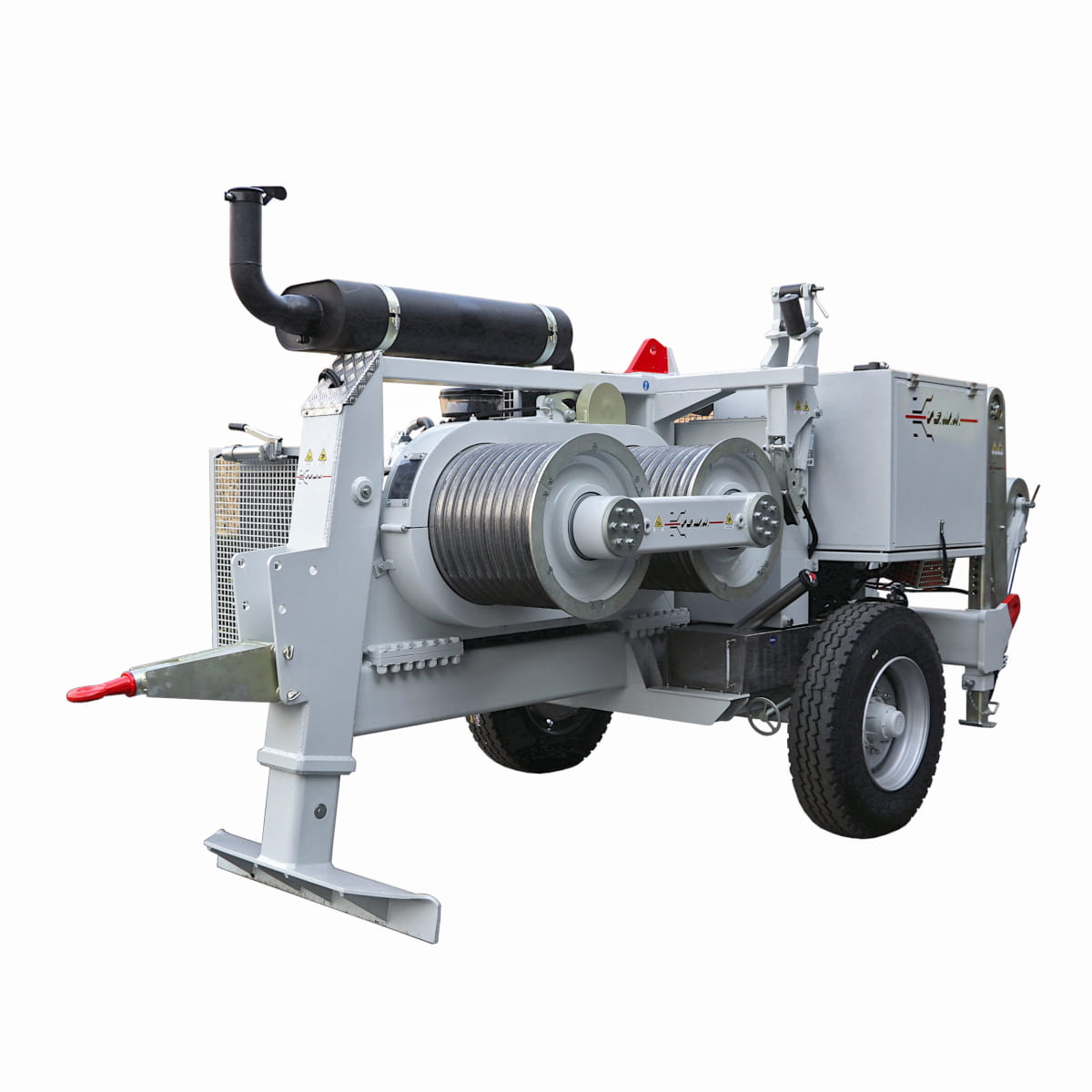

Digital hydraulic puller 140 kN
- ask about price
-
ask about product
-
recommend to a friend
Description
Standard features
• 1 hydraulic circuit with negative brake system
• Control panel equipped with LCD touch screen 7” display which includes:
preset for the maximum pulling force and instant indication, counter-meter,
speed indicator and worked hours.
• USB output for pulling data recording
• Radio control unit
• Thermally treated steel bull-wheels
• Automatic reel-winder suitable for steel reel 1100÷1400 mm
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments
Optional equipment
04-PW Radio control unit with display
06-PW Front pulley roller guided device for Underground cabling
07-PW Hydraulic power take-off for remote reel-winder
28-PW T4L remote monitoring system with GPS geolocation
Special features upon request
05-PW Rope holder clamp (hydraulic)
13-PW Pre-heater (up to -30°C)
20-PW Dynamic speed pulling force control
36-PW Engine emission standard Stage IIIA – (175 hp) 129 kW
Performance
Max pull 140 kN
Max speed 5 km/h
Speed at max pull 2,2 km/h

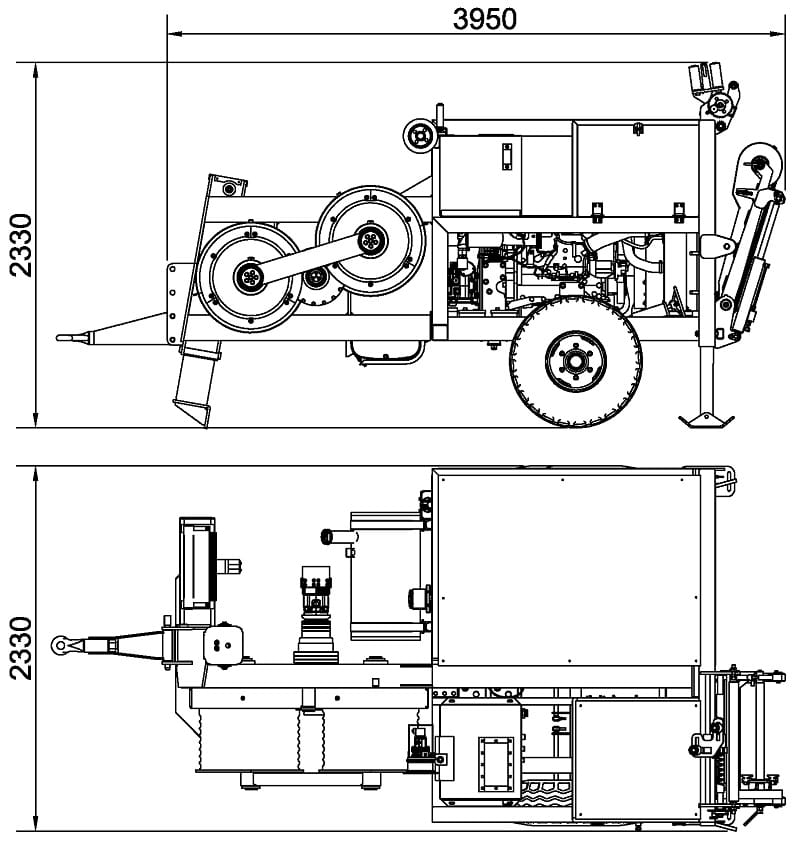

Characteristics
Bull-wheels diameter 600 mm
Max rope diameter 24 mm
Weight 4500 kg
Engine
Diesel (218 hp) 160 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
