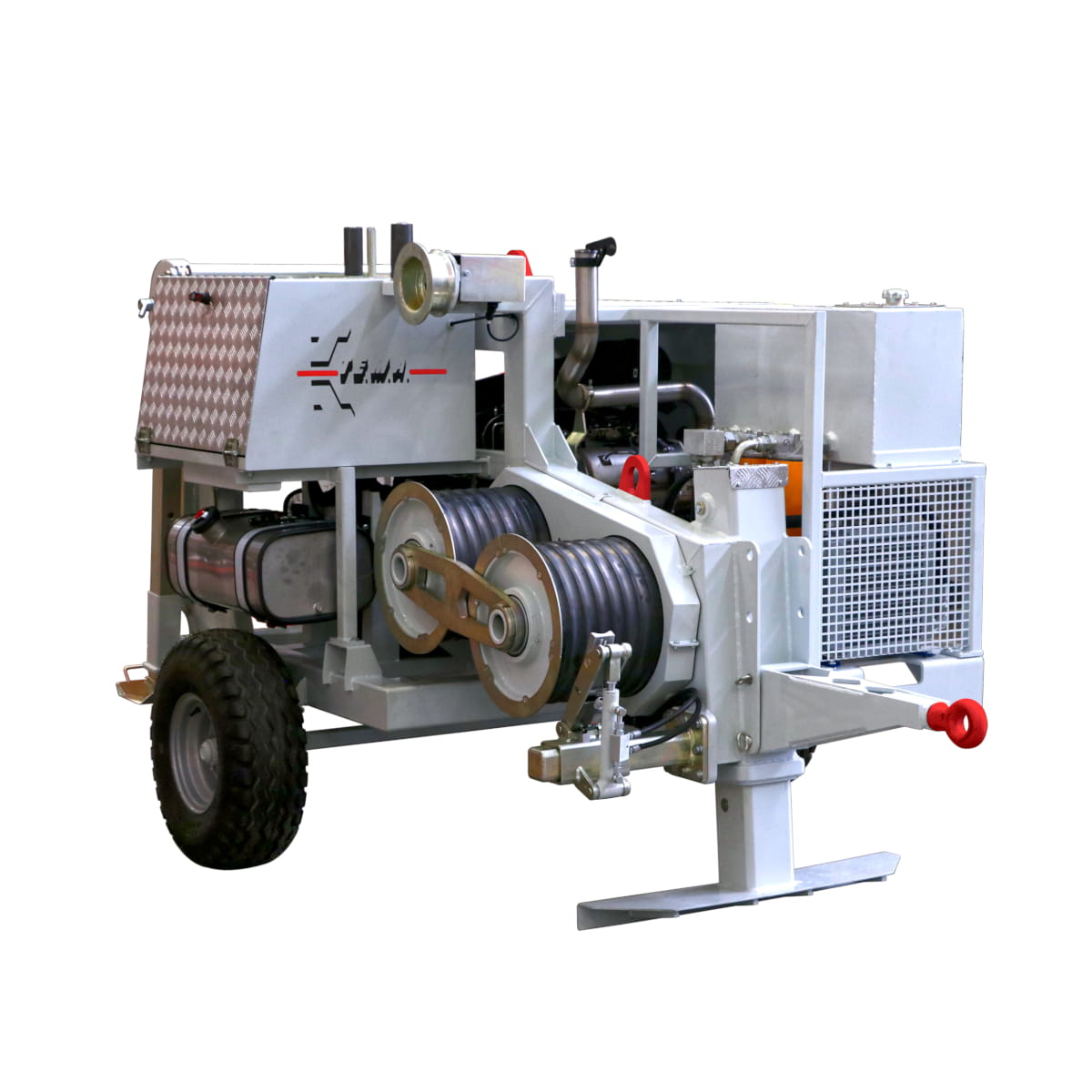

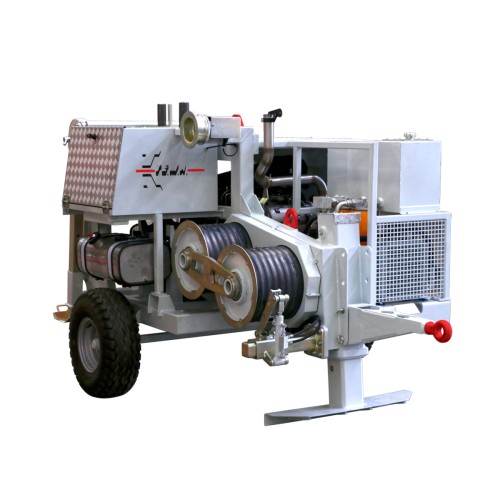

Digital hydraulic puller 50 kN
- ask about price
-
ask about product
-
recommend to a friend
Description
Standard features
• 1 hydraulic circuit with negative brake system
• Control panel equipped with LCD touch screen 7” display which includes: preset for the maximum
pulling force and instant indication, counter-meter, speed indicator and worked hours.
• USB output for pulling data recording
• Radio control unit
• Thermally treated steel bull-wheels
• Automatic reel-winder suitable for steel reel 1100÷1400 mm
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments
Optional equipment
04-PW Radio control unit with display
06-PW Front pulley roller guided device for Underground cabling 07-PW Hydraulic power take-off for
remote reel-winder
28-PW T4L remote monitoring system with GPS geolocation
Special features upon request
05-PW Rope holder clamp (hydraulic) 13-PW Pre-heater (up to -30°C)
20-PW Dynamic speed pulling force control 36-PW Engine emission standard Stage IIIA
– (85 hp) 63,5 kW
Performance
Max pull 50 kN
Max speed 5 km/h
Speed at max pull 2,1 km/h

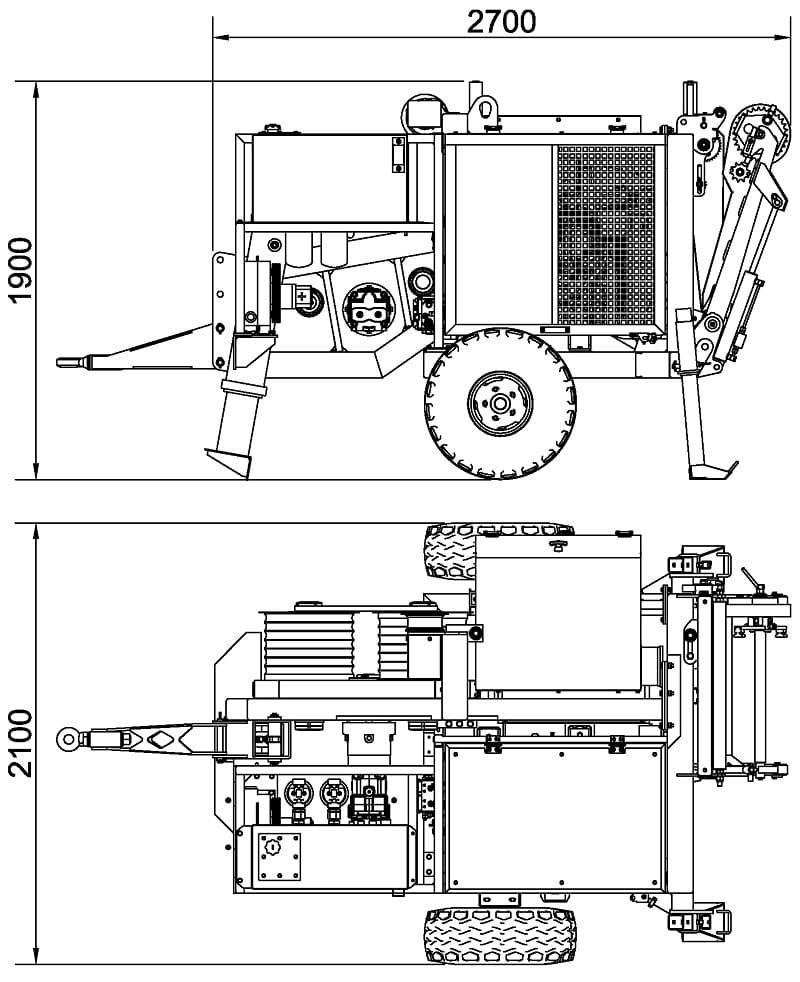

Characteristics
Bull-wheels diameter 400 mm
Max rope diameter 16 mm
Weight 2300 kg
Engine
Diesel (73 hp) 54 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
