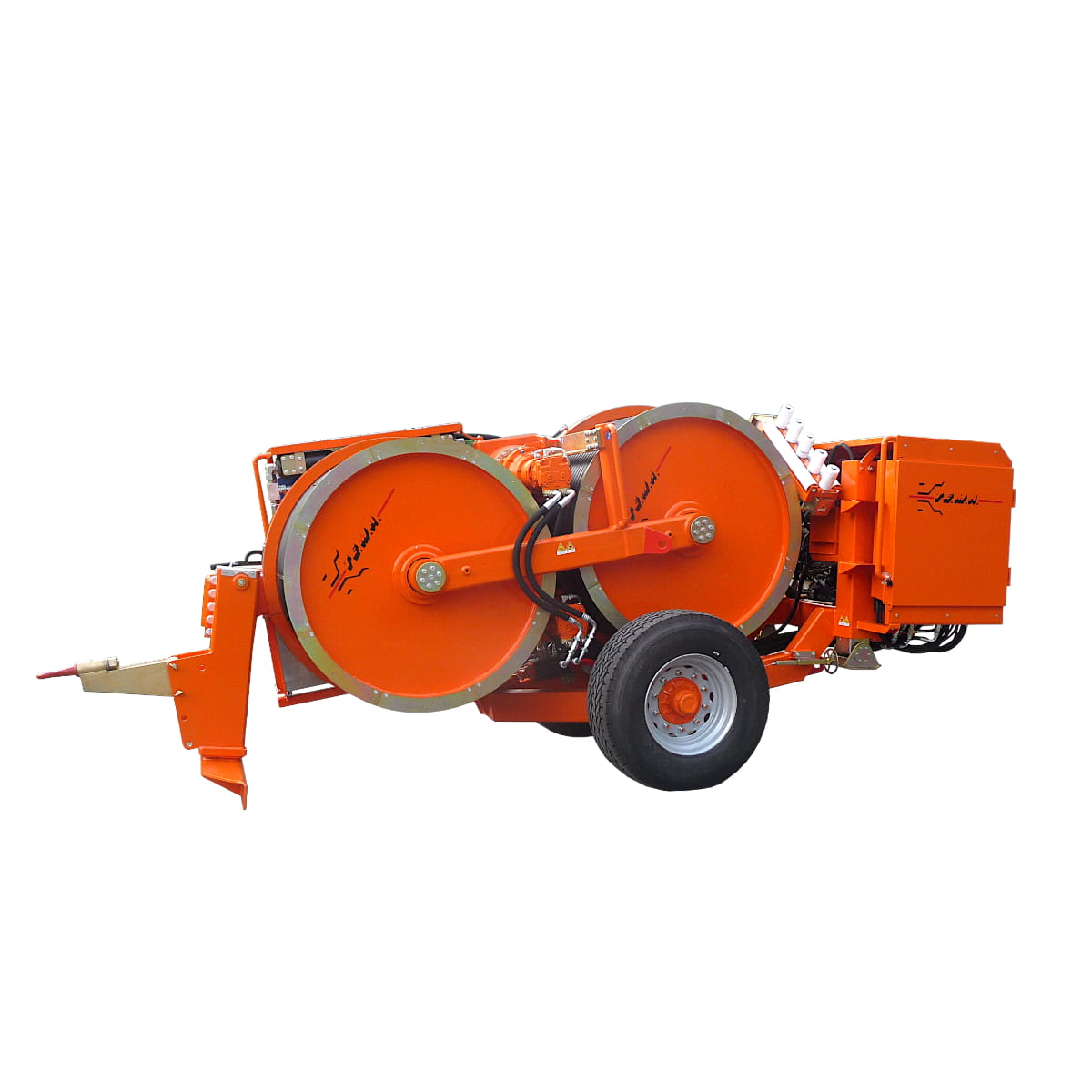

Digital hydraulic tensioner-puller 140 kN

Digital hydraulic tensioner-puller 140 kN capacity for stringing of up to 4 bundled conductors.

Standard features

• 1 hydraulic circuit with negative brake system
• Control panel equipped with LCD touch screen 7” display which includes:
preset for the maximum pulling force and instant indication, counter-meter,
speed indicator and worked hours.
• USB output for pulling data recording
• Radio control unit
• 4 sets of quick-release hydraulic connectors to drive up to 4 hydraulic driven
reel-stands or 1 reel-winder unit
• Adherence wheels with interchangeable nylon liners
• Rear independent hydraulic stabilizers
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments

Optional equipment

04-PT Radio control unit with display
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
14-PT Thermally treated steel adherence wheels
37-PT T4L remote monitoring system with GPS geolocation

Special features upon request

05-PT Additional hydraulic power take-off on reel-winder circuit
18-PT Multiple connection preset
20-PT Pre-heater (up to -30°C)
42-PT Engine emission standard
Stage IIIA - (85 hp) 63 kW

Tensioner performance
Max tension 140 kN
Max speed 5 km/h

Pull-back performance
Max pull 140 kN
Speed at max pull 0,7 km/h

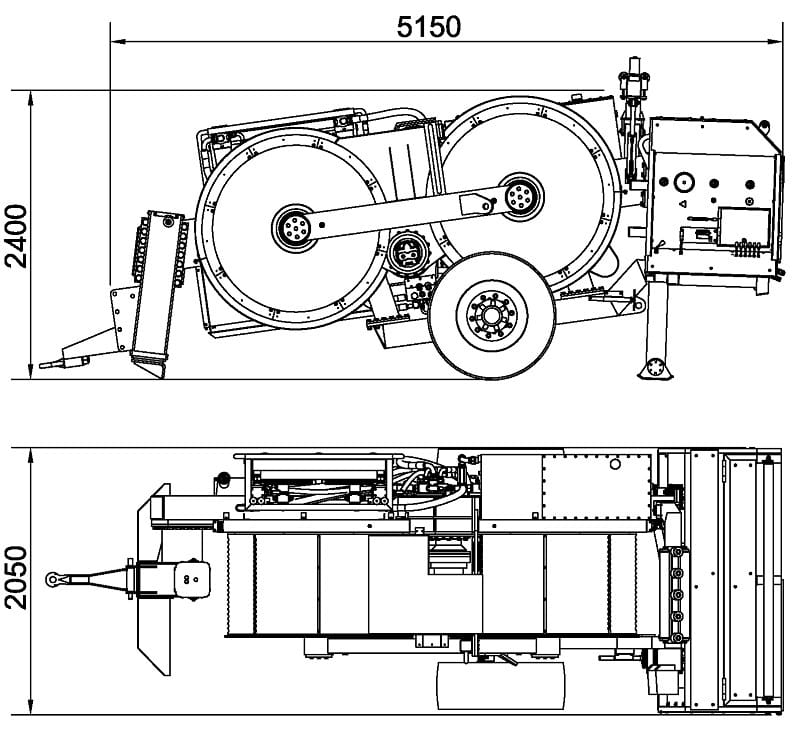

Characteristics
Adherence-wheels diameter 1500 mm
Also available with diameter 1800 mm
Max conductor diameter 40 mm
Weight 9000 kg

Engine
Diesel (73 hp) 54 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
