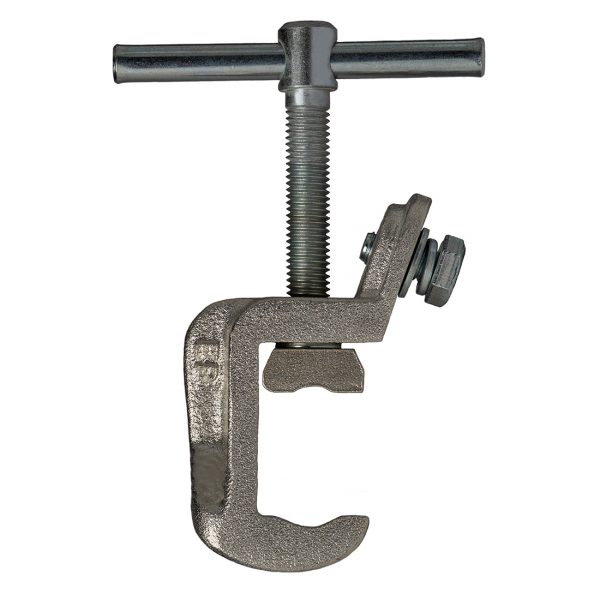

Earthing clamp for ball-type points (extended range)
Availability:
temporarily unavailable
On warehouse:
0
Producer:
-
Product code:
1510350260
Description
Earthing clamp for connection to a circuit conductor, a flat busbar, ball-type short-circuit points or a T-point.
Short-circuit rating: 20 kA/1 s
(When connected to a ball-type point type 161035, the short-circuit rating is 15 kA/1 s.)
Material: copper alloy (surface finish: Sn)
Weight: 0,69 kg
Connection to:

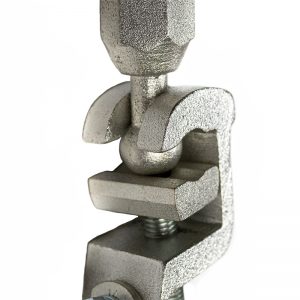

ball-type short-circuit point Ø 20 mm
flat busbar up to 30 mm wide
round conductor Ø 5–30 mm
T-point Ø 15 mm
Short-circuit rating: 20 kA/1 s
(When connected to a ball-type point type 161035, the short-circuit rating is 15 kA/1 s.)
Material: copper alloy (surface finish: Sn)
Weight: 0,69 kg
Connection to:
ball-type short-circuit point Ø 20 mm
flat busbar up to 30 mm wide
round conductor Ø 5–30 mm
T-point Ø 15 mm
