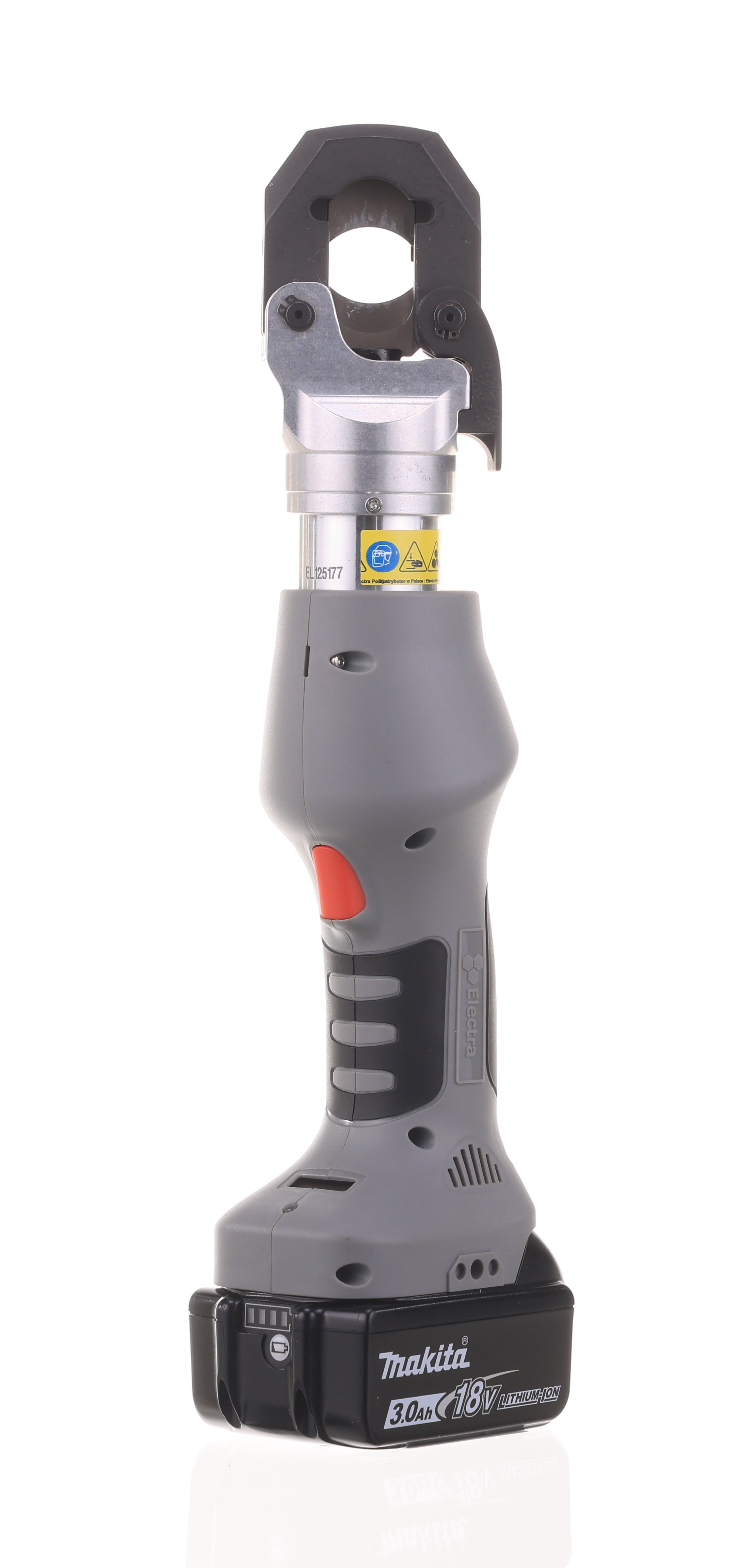

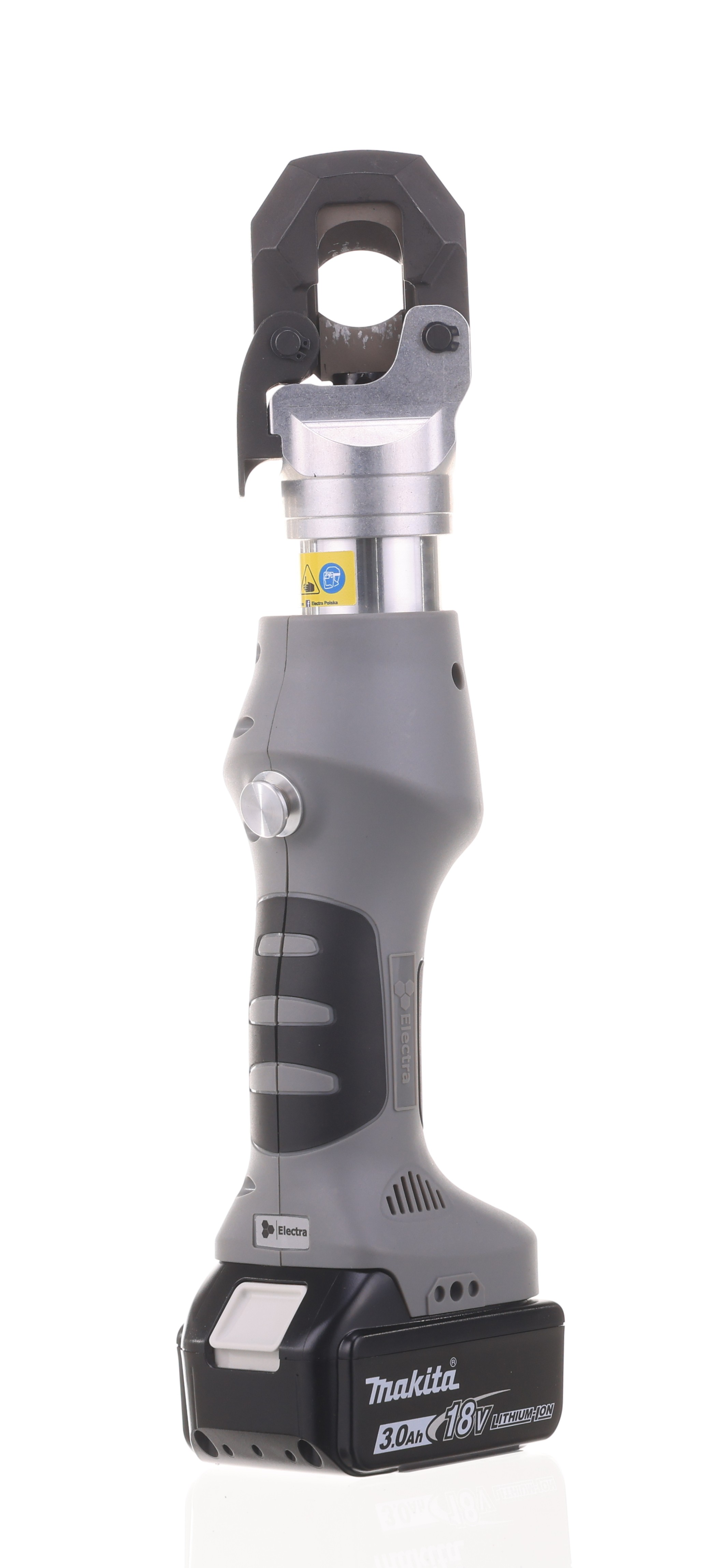

Electro-hydraulic cable cutters Al/Cu/AFL 25 mm 18,0V

Battery-powered cutting tool

Model: E00 NANO

Head type: Guillotine

Weight: 5.5 kg

Operating range:

• Al: 25 mm

• Cu: 25 mm

• Armoured cables: YES (25 mm)

• ACSR conductors (AFL): YES (25 mm)

Technical Specifications

• Operating pressure: 700 bar

• Force: 60 kN

• Rotating head: 360°

• Oil type: Biodegradable

• Operating temperature range: -20°C to +40°C

• Dimensions: 59 x 52 x 14 cm

Power Supply

• Battery: Makita Li-Ion 18.0 V, 3.0 Ah

• Charger with active cooling system: built-in fan cools the battery during charging

• Battery type: Lithium-Ion (Li-Ion)

• Battery capacity: 1.3–5.0 Ah (3.0 Ah battery included as standard)

• Charging time: approx. 22 min

• Charger power supply: 230 V

Features & Functions

• Battery charge indicators: LED charging status and battery capacity indicator

• LED display: provides battery data and crimping/cycle count

• Automatic pressure relief valve: (Automatic safety valve)

• Piston return: Manual / automatic

• Instant stop: immediate operation stop and piston return

• Worklight: LED for illuminating the work area (Night mode)

• Two-stage hydraulic system: double stage pump (idle/low pressure speed and high pressure speed)

• Composite handle

• Hanging/belt loop: for belt attachment or suspension

Kit Includes:

• E00 NANO battery-powered cutter

• Makita charger

• E18/5 battery (3.0 Ah capacity)

• Plastic carrying case

• User manual

Options:

• Additional battery

• Milwaukee battery adapter
