FTTH One blowing machine
Description
Blowing machine for subscriber fibre optic cables
Technical data
| Model | FTTH One |
|---|---|
| Supply voltage | 24 V |
| Maximum power | 120 W |
| Feeding force | 4 – 70 N |
| Feeding speed | 25 – 150 m/min |
| Fibre optic cable diameters | 0.5 – 5 mm |
| Microduct diameters | 5 – 12 mm |
| Weight | 8 kg |
Product description
Dimensions (L x W x H) 328 x 158 x 268 mm

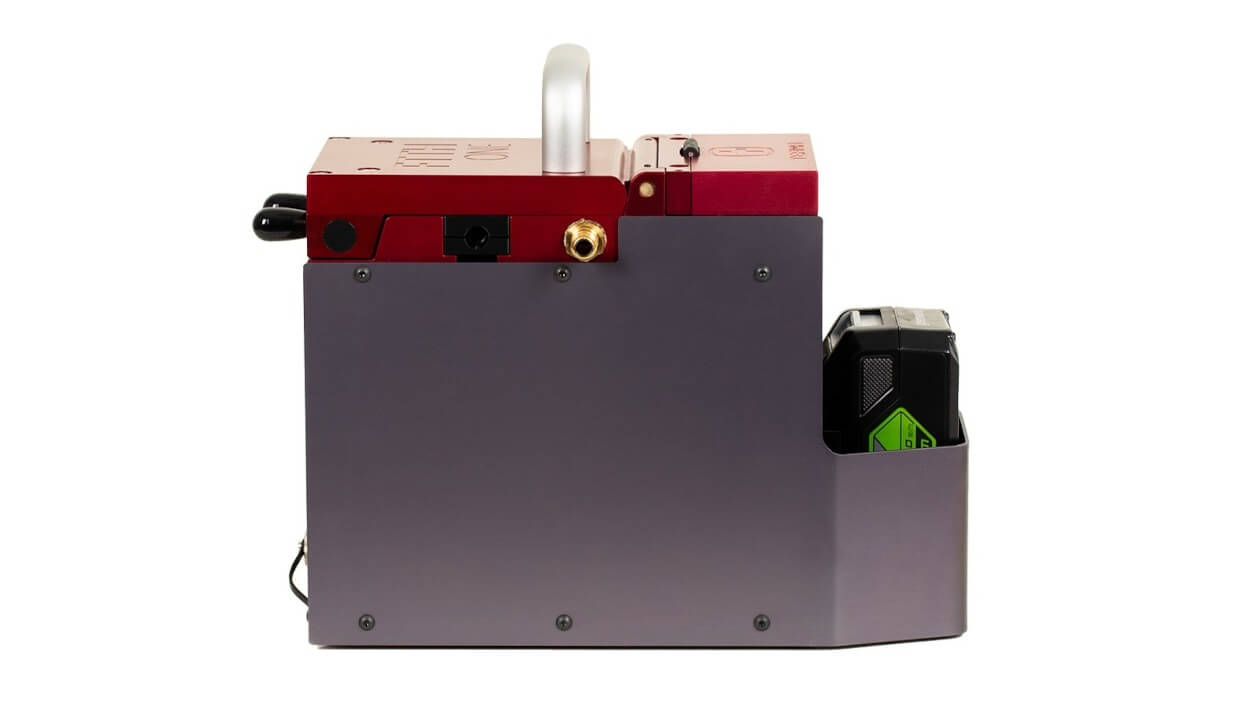

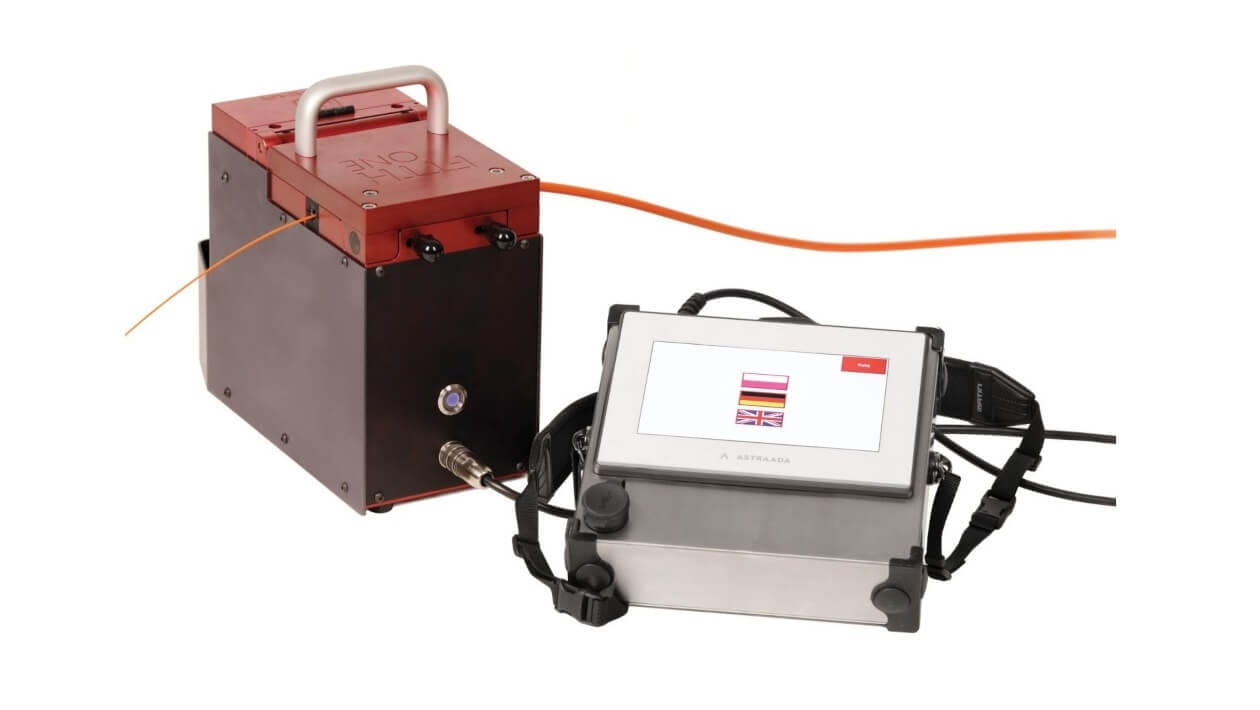

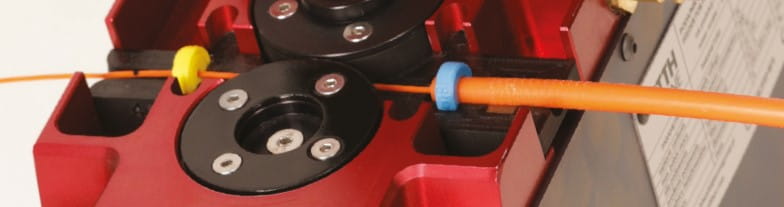

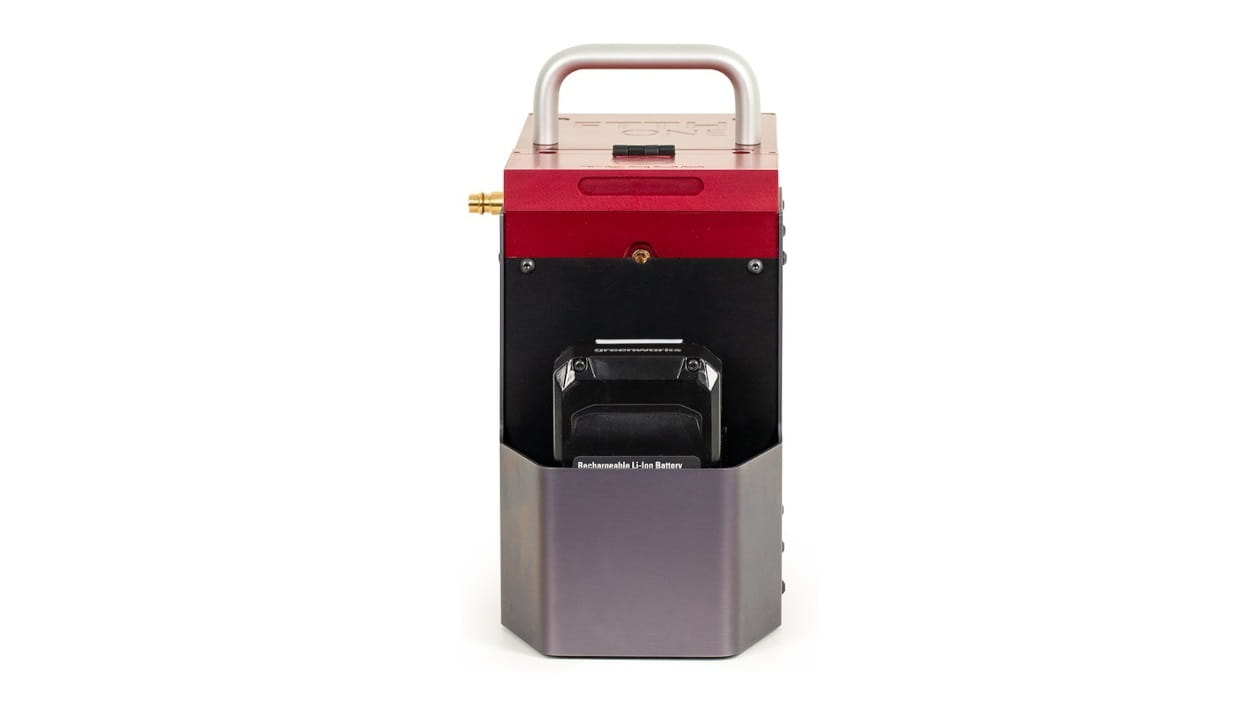

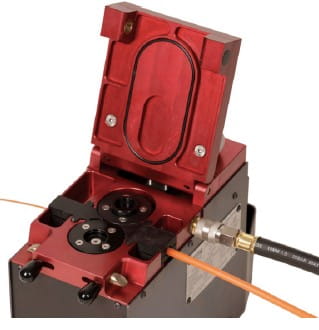

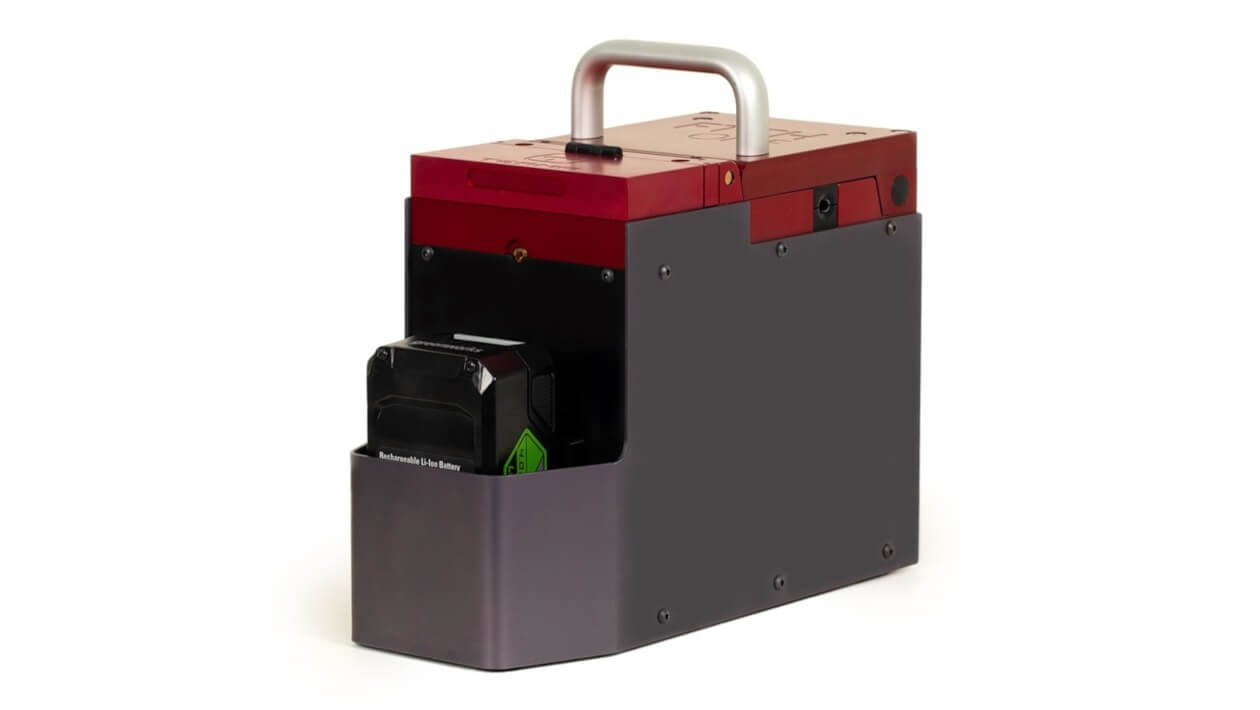

The FTTH One blower, with its fully adjustable speed and cable insertion force, is ideal for working with the thinnest subscriber fibre optic cables. Using a magnetic clutch, it protects the cable from damage when it encounters an obstacle by instantly disconnecting the drive. The device is controlled via a touch panel, which is also a data logger.
equipment dedicated to the most delicate subscriber fibre optic cables
effective protection against cable breakage thanks to a magnetic clutch
fully electric drive with battery power supply
separate adjustment of blowing force and speed
convenient control via a touch operator panel
recording of blowing process data - force, speed, length, pressure, date, time and GPS coordinates
Key features
- automatic stop when slippage is detected
- generation of blowing process reports
