Fall protection system for open manholes
Description
Fall protection system for open manholes
Technical data
| Model | AC90 |
|---|---|
| Structure weight | 8 kg |
| Grating weight | 7 kg |
| Dimension | 90x90 cm |
| Load capacity | 100 kg |
Product description
A simple and effective system that prevents accidental falls of tools, materials or people into open manholes.

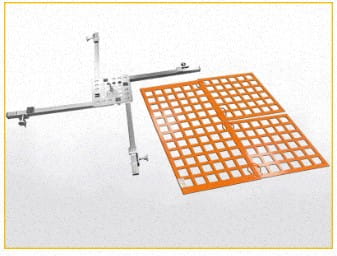

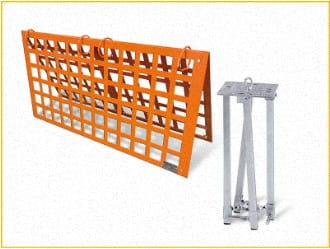

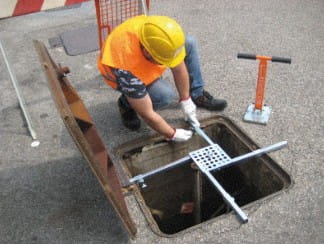

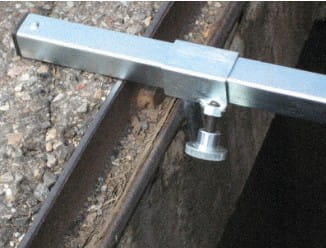

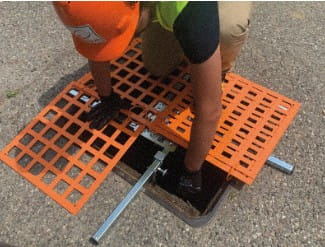

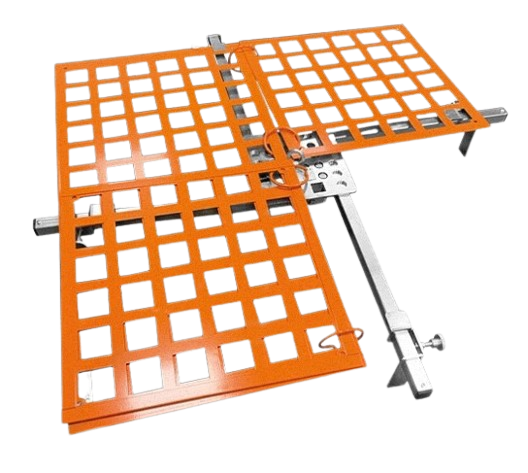

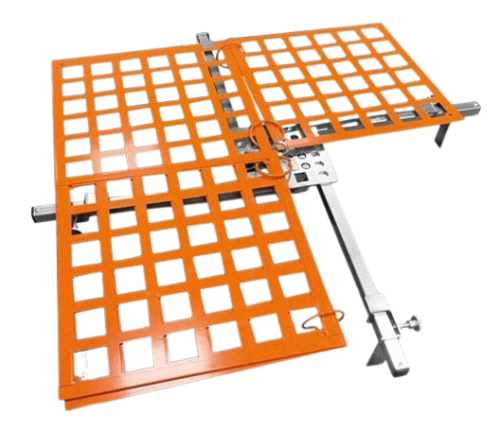

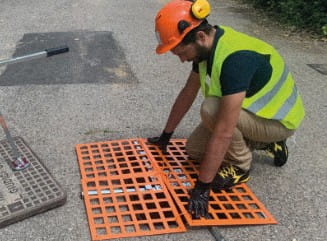

Use is practical and intuitive: the equipment consists of a lightweight but very durable foldable cross frame with 4 extendable and adjustable spokes that fit both square and round openings; 4 lower sliding braces are adjustable on the arms to keep the cross in the correct position and prevent movement; then a self-centring and foldable metal grid is placed on the cross, which prevents falls but allows air and light to pass through, and it can also be shifted to a position that allows passage and the presence of a ladder. If the operator needs to escape suddenly from inside, the whole assembly can be quickly removed by pushing.
