Fiber blowing machine MultiTyphoon
Description

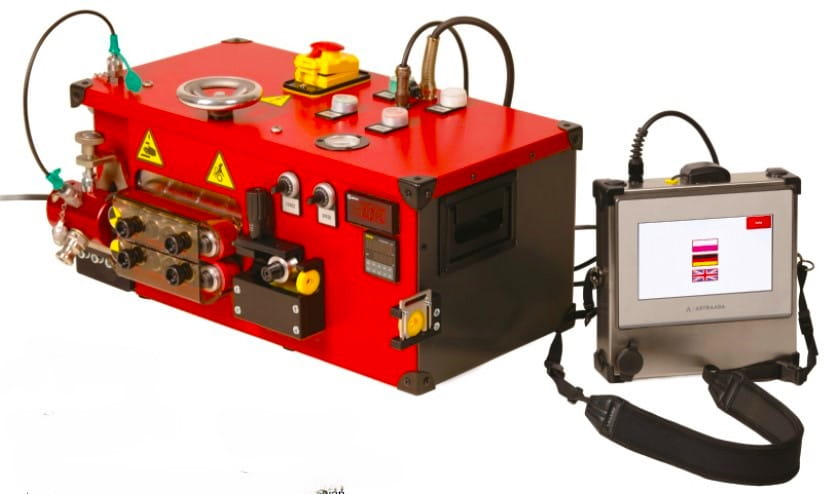

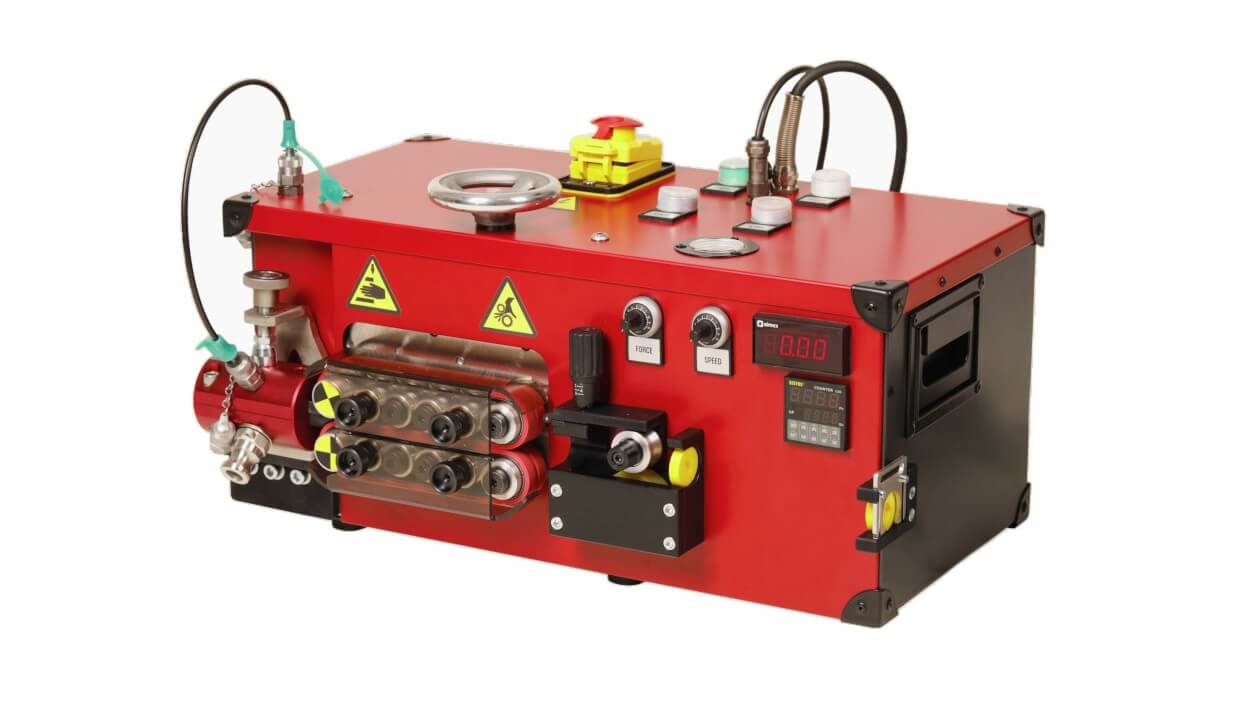

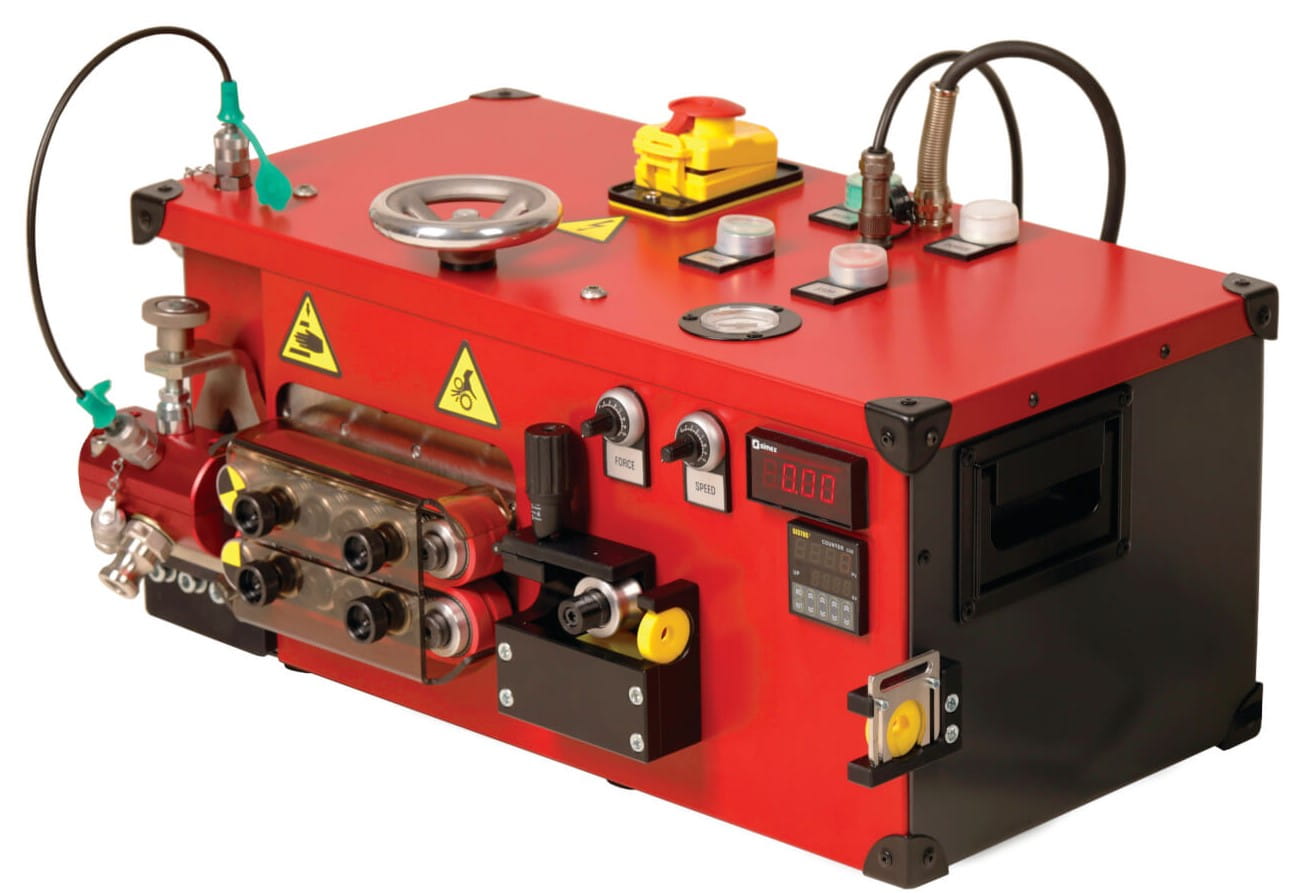

MultiTyphoon fibre blowing set
Supply voltage 230 V
Maximum power 1600 W
Conveying force 60 - 600 N
Feed speed 16 - 100 m/min
Fibre optic diameters 3 - 20 mm
Microduct diameters max. 8 pcs. - 10 mm
Dimensions (L x W x H) 590 x 350 x 350 mm
Weight 35 kg
MultiTank S
- blow-in protection with electronic control and independent programmable force and speed setting
- Fully electric drive allows for longer blowing distances, as all the air from the compressor is used to create aerodynamic forces on the cable.
- microprocessor control and constant reading of the pushing force of the cable shown on the display for the operator
- programmable counter enables automatic operation
- up to 400 m of cable can be installed without the use of a compressor, thanks to the all-electric drive
- blowing into microducts and HDPE pipes possible
- possibility to work at temperatures below 5°C without the risk of the drive freezing
- the force of the belts to the cable is realised by appropriately selected springs, which ensures safe working conditions for the cable regardless of the experience of the operator

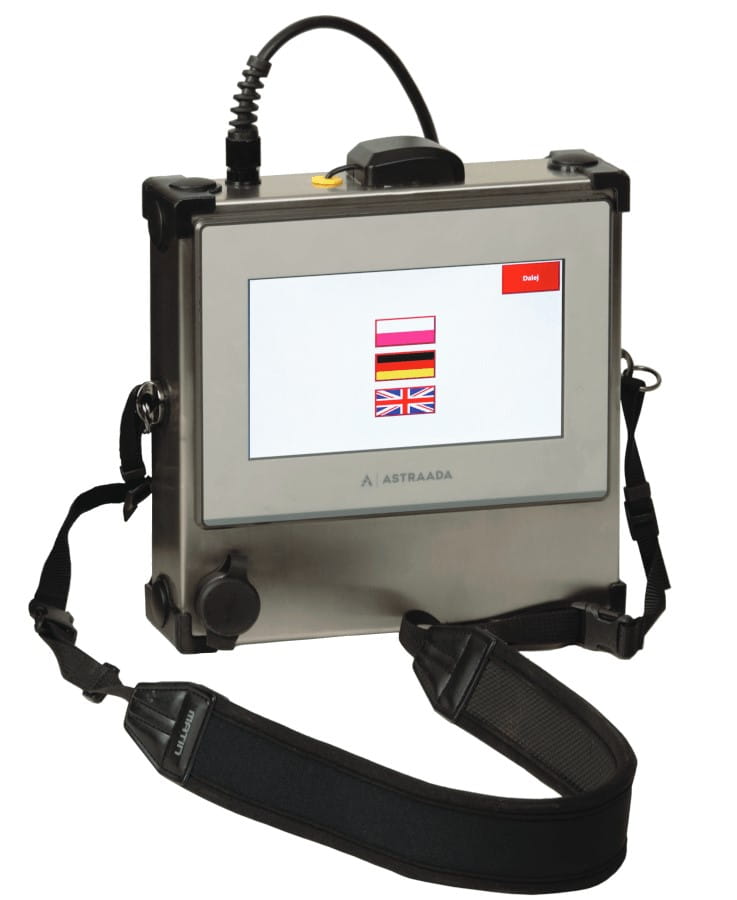

Recorder
At any time during operation, the feeder can be additionally equipped with a data logger which increases functionality by:
- recording of operating parameters: current force, speed and pressure of cable blowing as a function of the length of the blown fibre optic cable
- recording of permanent parameters: date and time, temperature, GPS, max. force set by the operator
- generation of reports from the above data presented in a chart
- access to reports from each device via a personalised web application
