GR-G drum and spool holder
Availability:
running out
Dispatched within:
24 hours
On warehouse:
1
Producer:
-
Product code:
GR-G 2,0
Description

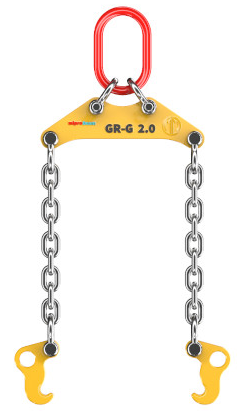

GR-G drum and spool holder
Load capacity
2000 kg
Meets the provisions of the Machinery Directive
2006/42/WE
Made according to harmonized standard
PN-EN 13155
Technical data
| Load capacity | 2000 kg |
|---|---|
| Meets the provisions of the Machinery Directive | 2006/42/WE |
| Made according to harmonized standard | PN-EN 13155 |
| Calibrated | manufacturer's mark, CE mark, serial number, year of manufacture |
| Weight | 9 kg |
Product description
The lifting beam is designed for lifting drums lying on their side. The element from which the lifting beam is suspended should be compatible with the master link and allow sufficient freedom of alignment of the mating elements. The holes in the drum should have a constant spacing and a constant diameter

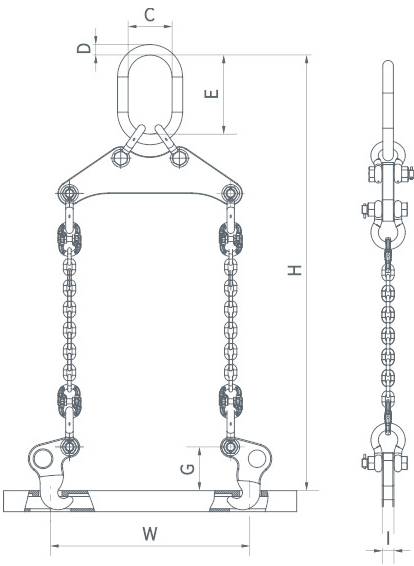

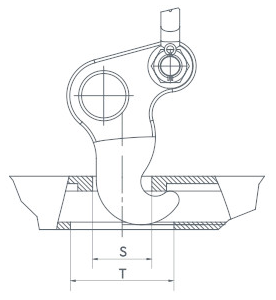

Dimensions H(743 mm) K(340 mm) T(70 mm) S(40 mm) G(74 mm) C(75 mm) D(18 mm) E(135 mm) I(20 mm)
