GR-H Drum and Reel Holder
Availability:
temporarily unavailable
Dispatched within:
production 30 days
On warehouse:
0
Producer:
-
Product code:
GR-H 4,0
Description
GR-H Drum and Reel Holder
Load capacity
4000 kg
Meets the provisions of the Machinery Directive
2006/42/WE
Made according to harmonized standard
PN-EN 13155
Technical data
| Load capacity | 4000 kg |
|---|---|
| Meets the provisions of the Machinery Directive | 2006/42/WE |
| Made according to harmonized standard | PN-EN 13155 |
| Weight | 80 kg |
Key features

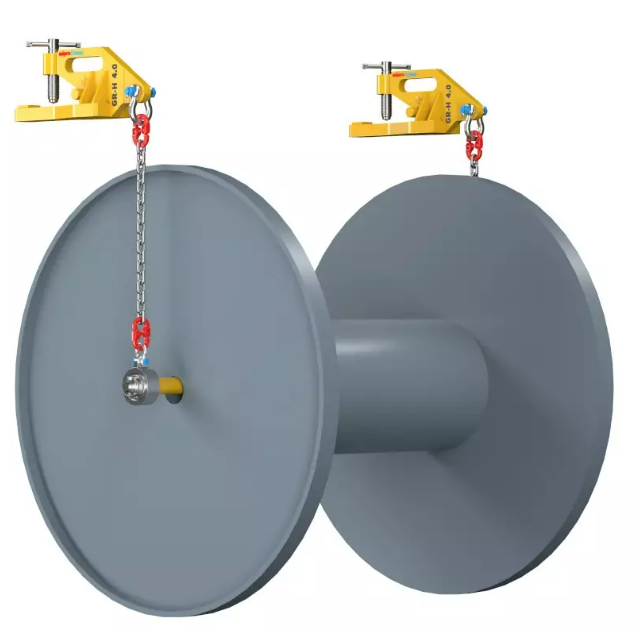

- The sling is used for lifting cable drums in the horizontal axis using the bucket of a construction machine.

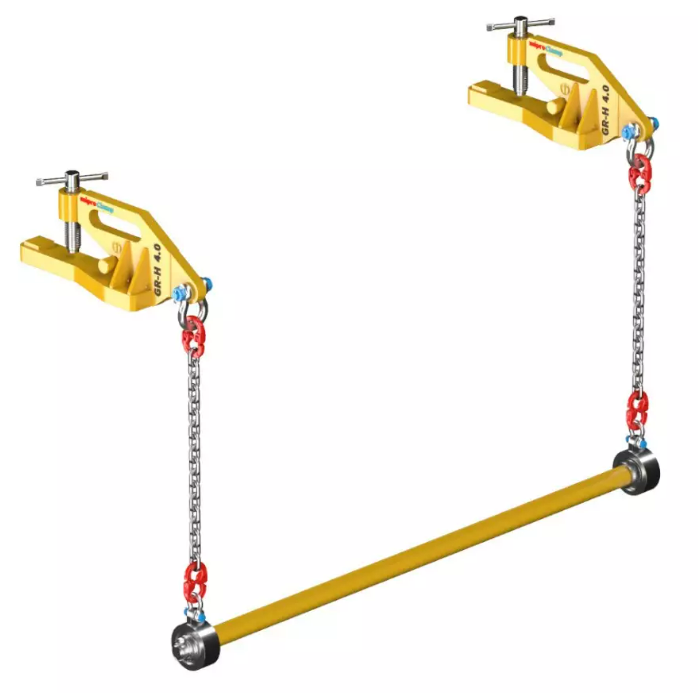

- The sling allows the cable to be unrolled from the suspended drum thanks to the use of slide bearings.
- The width of the cable drum must not exceed 1400 mm and the drum must have a through hole with a diameter of more than 65 mm

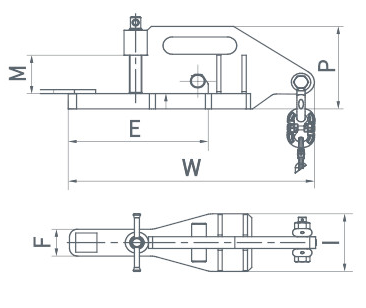

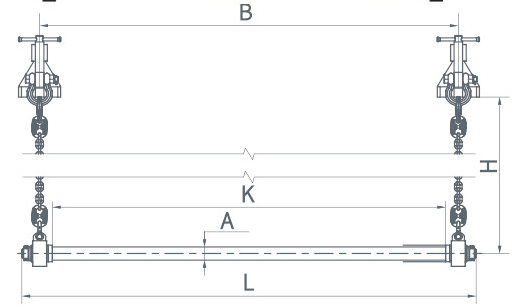

- Dimensions L(1617mm) K(1400mm) B(1491mm) A(51mm ) H(1200mm) W(584mm) E(333mm) P(215mm) M(100mm) I(150mm) F(70mm)
