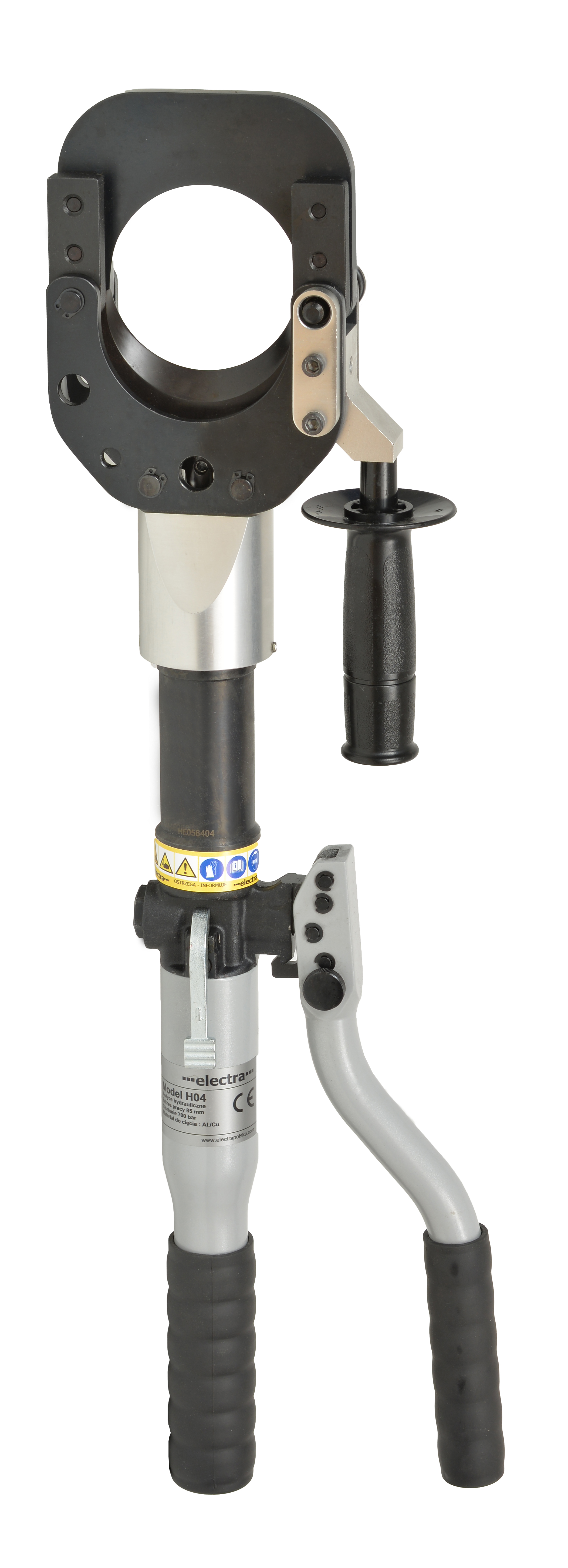

Hydraulic cable cutter Al/Cu 85 mm
Description
Hydraulic cable cutter Al/Cu 85 mm
Technical data
| Weight | 6.4 kg |
|---|---|
| Operating range at | -20 to +40 degrees C |
| Height | 683 mm |
| Working pressure | 700 bar |
| Pressure | 60 kN |
| Drive | manual hydraulic |
| Cutting of Al/Cu cables | 85 mm |
| Working range | |
| Al/Cu | 85 mm |
| Oil capacity required | 147 cm³ |
Product description
Manual hydraulic tool designed specifically for cutting copper and aluminium cables with a maximum overall diameter of 85 mm.
The blades are made of special high strength steel strength, heat-treated to ensure long service life.
The head rotates 180 degrees to allow the operator to work in the most comfortable position and can be easily opened, to allow running cables to be cut.
The H04 has an automatic safety valve that cuts off the oil pressure when the cutting process is complete;
The pressure release valve can also be operated at any stage of work by pressing the button manually
Key features
- Head closed type
- Biodegradable oil
- Head rotating through 180 degrees
