Hydraulic cable cutter Al/Cu/ACSR 45 mm St 20 mm
Description
Hydraulic cable cutter Al/Cu/ACSR 45 mm St 20 mm
Technical data
| Model | H01 |
|---|---|
| Weight | 5.8 kg |
| Working pressure | 700 bar |
| Pressure | 60 kN |
| Material | cutting Al/Cu/AFL |
| Working range ACSR | 45 mm, St 20 mm |
| Working range | |
| Al./Cu/AFL | 45 mm |
| Wire rope | 6x7, 6x12, 6x19 max 24 mm |
| Reinforced rod | 20 mm |
Product description

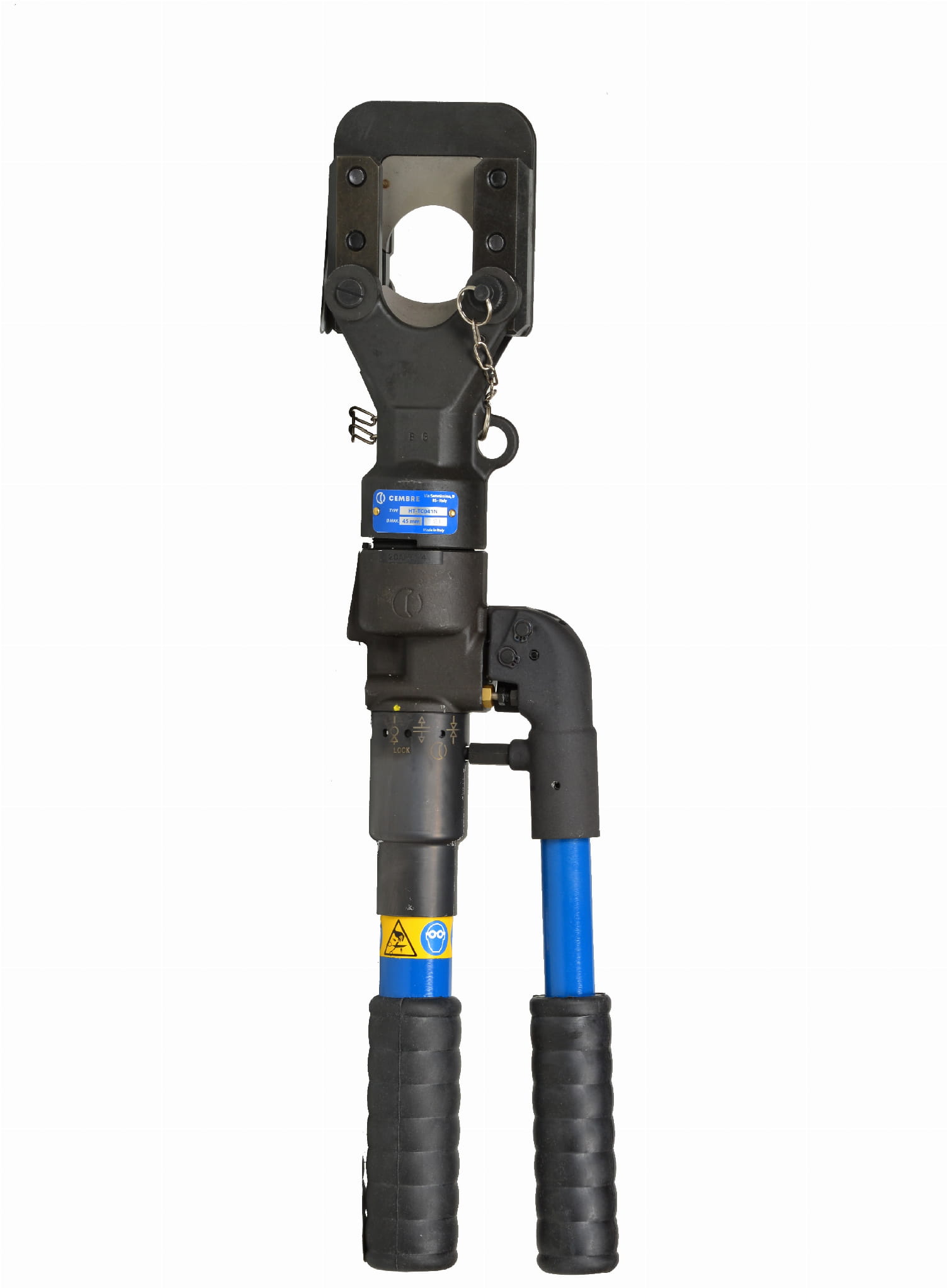

A hand-held hydraulic tool designed specifically For cutting copper, aldrey, aluminum, aluminum-steel , wires , cables and wire ropes, copper and steel rods with a maximum total diameter of 45 mm.
The blades are made of special high strength steel strength, heat-treated to ensure long service life.
The head rotates 180 degrees to allow the operator to work in the most comfortable position and can be easily opened, to allow running cables to be cut.
The H01 model has an automatic safety valve for shutting off the oil pressure when the process is complete cutting; the pressure release valve can also be operated at any stage of operation by manually pressing a button
Key features
- Head closed type
