Hydraulic cable head Al/Cu 65 mm
Availability:
running out
Dispatched within:
24 hours
On warehouse:
4
Producer:
Product code:
G08/1
Description
Hydraulic head
Pressure
60 kN
Working pressure
700 bar
Operating range at
-20 to +40 degrees C
Technical data
| Model | G08/1 |
|---|---|
| Working pressure | 700 bar |
| Pressure | 60 kN |
| Operating range at | -20 to +40 degrees C |
| Armoured cable | 45 mm |
| Working range | |
| Al/Cu | max 65 mm |
| Armoured cables | 45 mm |
| Oil capacity required | 45 cm³ |
| Designed for railway power supply cable | 500 mm² |
Product description

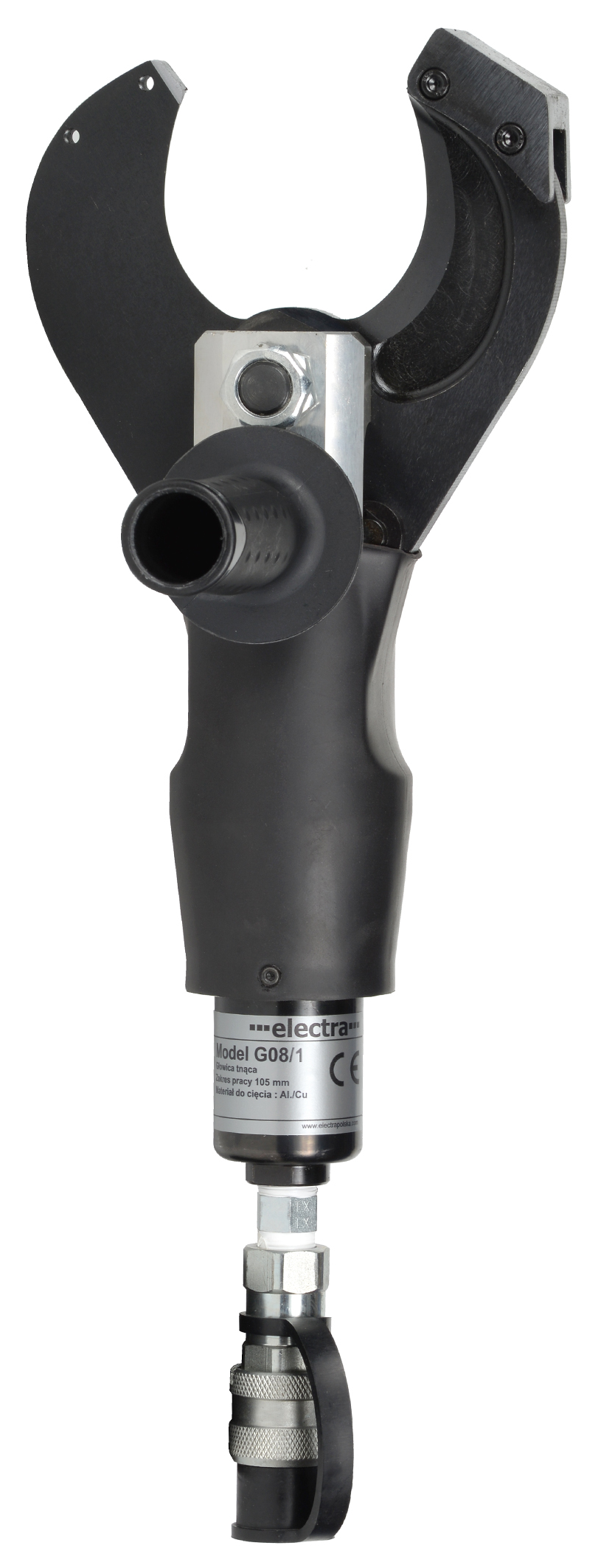

Hydraulic cutting head designed specifically for cutting copper and aluminium cables with a maximum overall diameter of 65 mm. The head is fitted with an automatic quick coupler for connecting an Electra hydraulic pump with a working pressure of max. 700 bar.
Key features
- Open type head
- Biodegradable oil
- diameter of 61.5 mm
