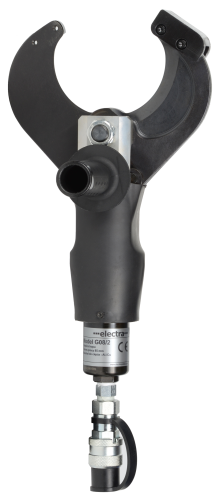

Hydraulic cable head Al/Cu 85 mm
Availability:
running out
Dispatched within:
24 hours
On warehouse:
6
Producer:
Product code:
G08/2
Description
Hydraulic head
Pressure
60 kN
Working pressure
700 bar
Operating range at
-20 to +40 degrees C
Technical data
| Model | G08/2 |
|---|---|
| Working pressure | 700 bar |
| Pressure | 60 kN |
| Operating range at | -20 to +40 degrees C |
| Armoured cable | 65 mm |
| Working range | |
| Al/Cu | max 85 mm |
| Armoured cables | 65 mm |
| Oil capacity required | 66 cm³ |
Product description
Hydraulic cutting head designed specifically for cutting copper and aluminium cables with a maximum overall diameter of 85 mm. The head is fitted with an automatic quick coupler for connecting an Electra hydraulic pump with a working pressure of max. 700 bar. Open type head
Key features
- Biodegradable oil
