Hydraulic cable head Al/Cu/ACSR 45 mm

Availability: running out

Dispatched within: 24 hours

On warehouse: 4

Delivery: The price does not include any possible payment costs check the delivery methods

Price: €772.00

Regular price:

772.00

quantity pcs

product unavailable

add to wish list

Producer: Electra Polska

Product code: G02/1

Description

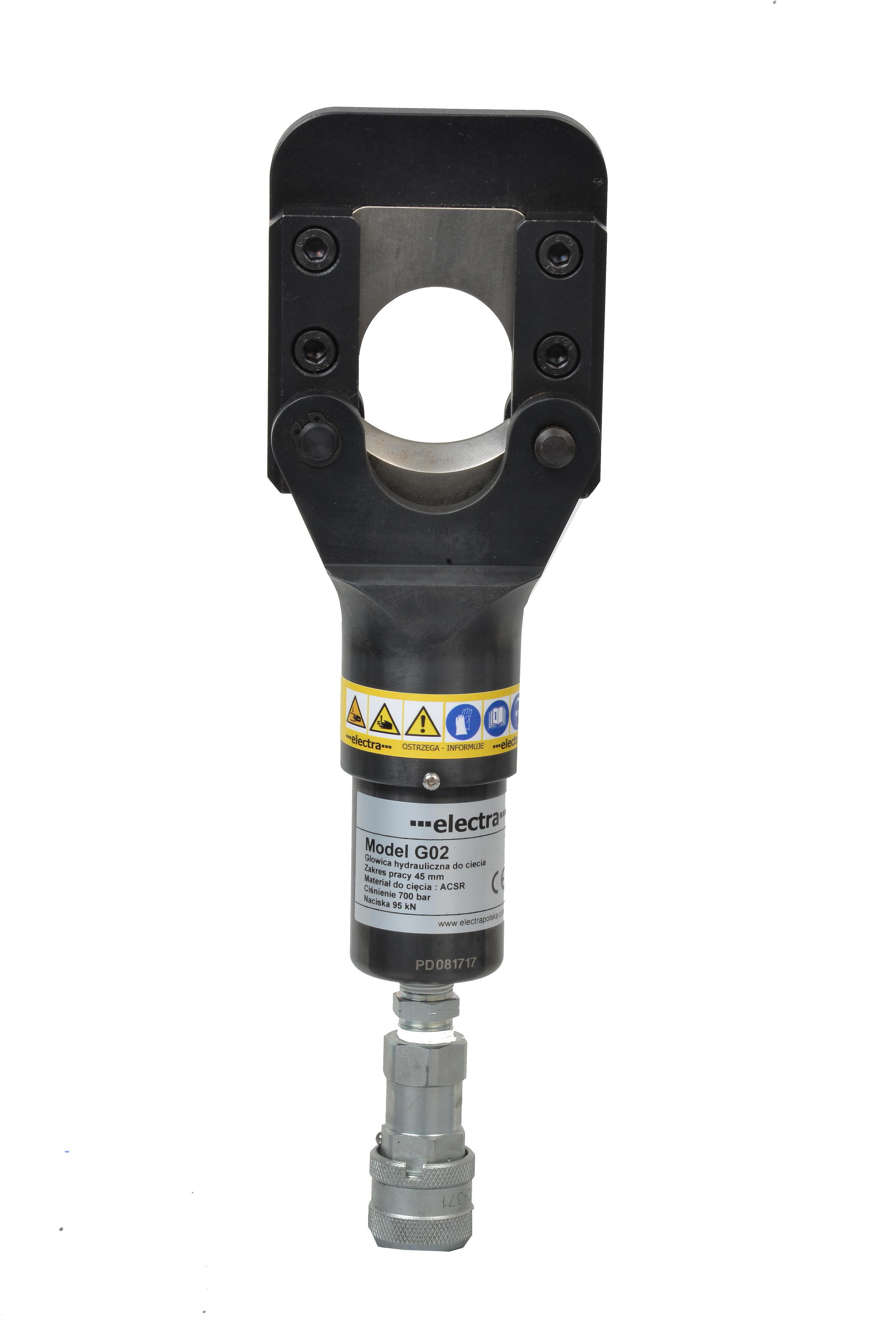

Hydraulic cutting head complete with quick coupler
automatic for connection to any hydraulic pump
Electra with an operating pressure of 700 bar max.
Bolt locking head
Weight 4.5 kg
Working range
Al./Cu/AFL 45 mm
Wire rope 6x7 , 6x12 , 6x19 max 25 mm
Working pressure 700 bar
Pressure 100 kN
Required oil capacity 70 cc
Biodegradable oil
Operating range at -20 to +40 degrees C
Height 346 mm
