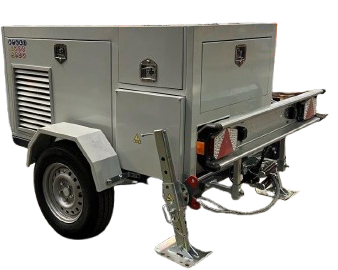

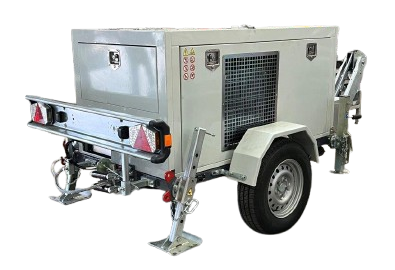

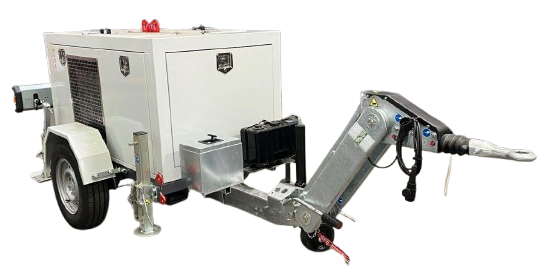

Hydraulic cable winch 30 kN
Description
PARAMETERS FEATURES AND OPTIONS
Maximum load 30 kN
Speed at maximum load 14 m/min
Maximum speed 60 m/min
Force at maximum speed 10 kN
Capstans 200 mm
Weight without rope 1250 kg
Approval for road travel up to 80 km/h
ROPE - price does not include rope
Rope dedicated to the machine (option to choose from)
- 10 mm in the 700 m section.
- 8 mm in the 1000 m section.
ENGINE
Diesel (25.0 HP) 19 kW
Cooling: liquid
Start - electric
DIMENSIONS
Length 3200 mm
Height 1500 mm
Width 1700 mm
FEATURES AND OPTIONS
Standard functions:
- one hydraulic circuit with negative system brake

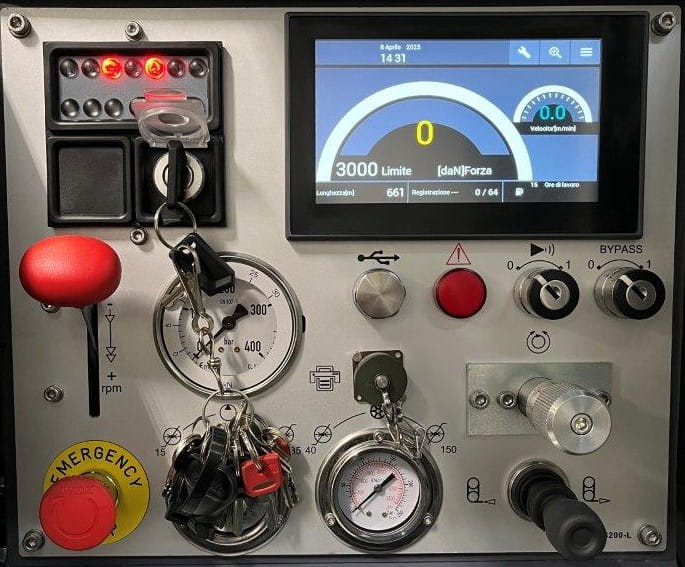

- Control panel equipped with a 7" LCD touch screen display that includes: settings for maximum pulling force and immediate indication of force, counter, speed indicator Number of operating hours
- USB output for data recording
- Remote control c/w console 5 m cable
- Road set 1600 kg (80 km/h)
- Leveled hook for lifting the winch
ADDITIONAL EQUIPMENT - OPTIONS
Rope to choose from as separate equipment
1908 - Steel rope 6x36 in 1000 m section.
1910 - Steel rope 6x36 in 700 m section.
1010 - Anti-twist rope 10 mm in 700 m section.
Additional possible options to be added at the stage of ordering for production
03-PW Remote control with console - 10-meter cable
04-PW Radio control unit
20-PW Dynamic speed control of the force pull
32-PW Printer with accessories
24-PW Self-propelled, radio-controlled crawler chassis
