Producer: Electra Polska

Product code: G26

Description

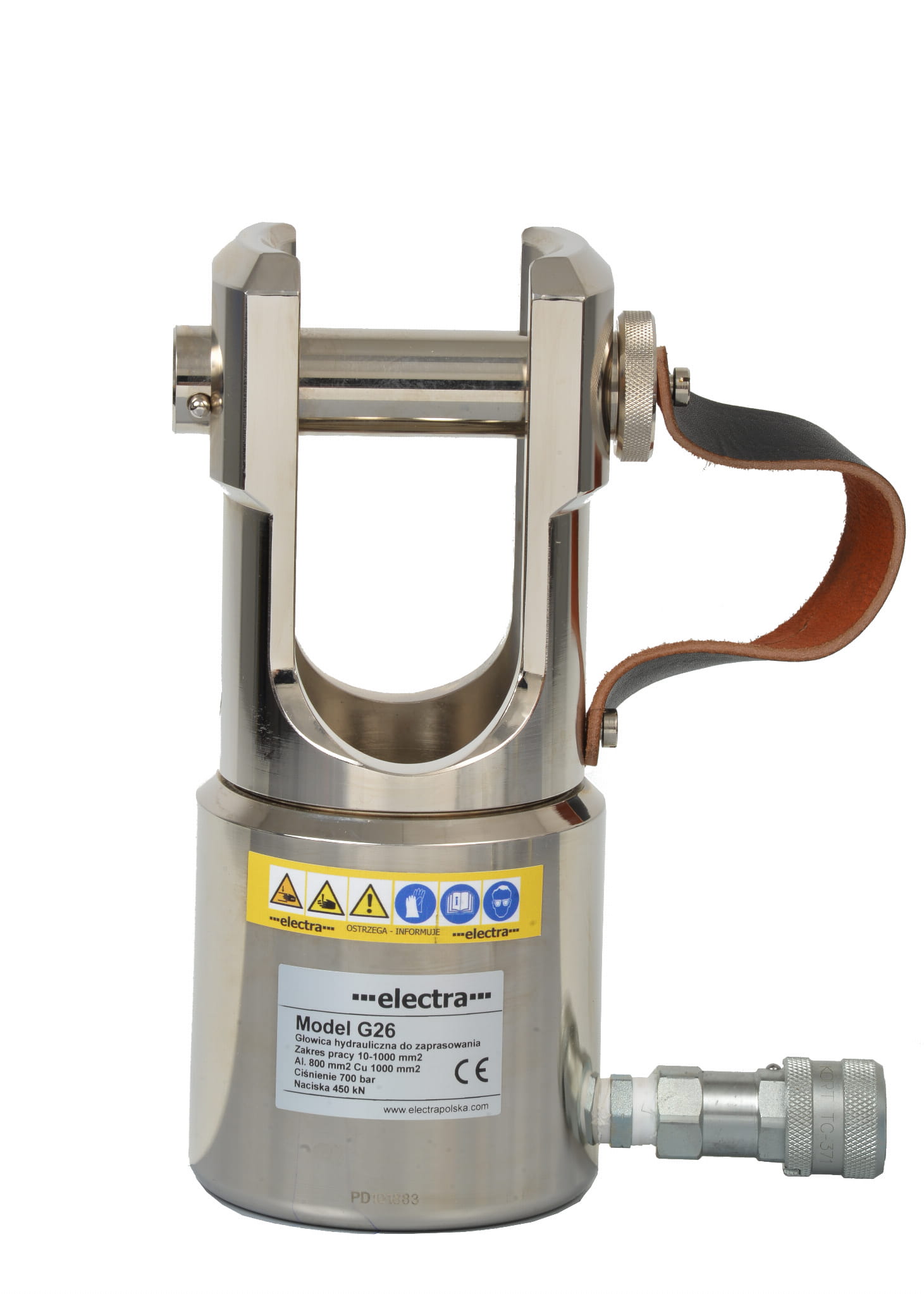

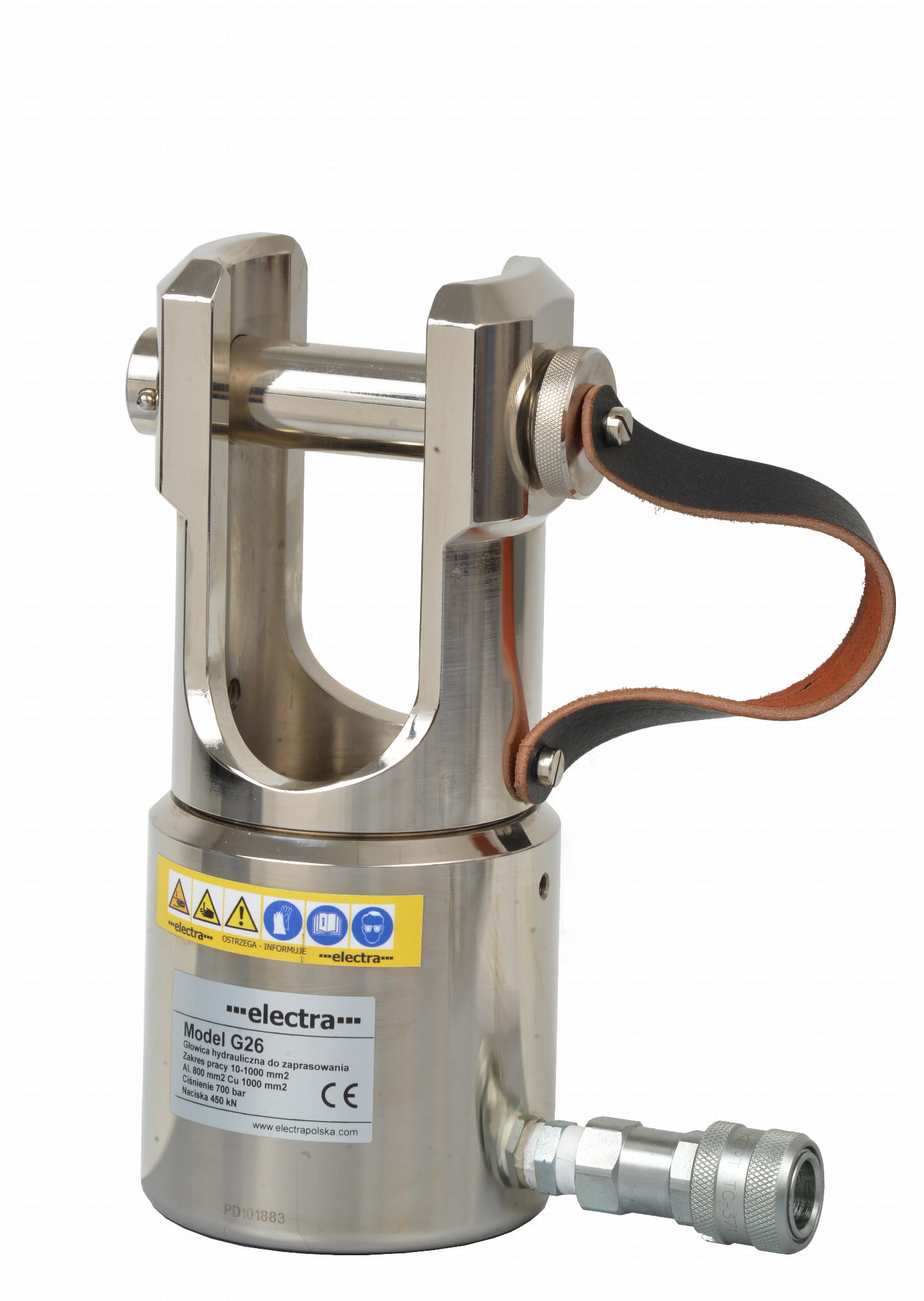

Model G26
Hydraulic head
Die series 26
“U” series die head
Weight 10.6 kg
Working range
Al.DIN max 800 mm2
Cu DIN max 1000 mm2
AFL max 8-525 mm2
Working pressure 700 bar
Pressure 450 kN
Oil capacity required 226 cc
Biodegradable oil
Operating range at -20 to +40 degrees C
Height 285 mm
Options :
Die series 26 ( page 124 ) Die available at https://electrasklep.pl/pl/c/Seria-26-450-kN/73
G26/1 Adapter for die series 23 ( max Cu 400 mm2 )
Recommended pumps ( page 173-174-175 )
