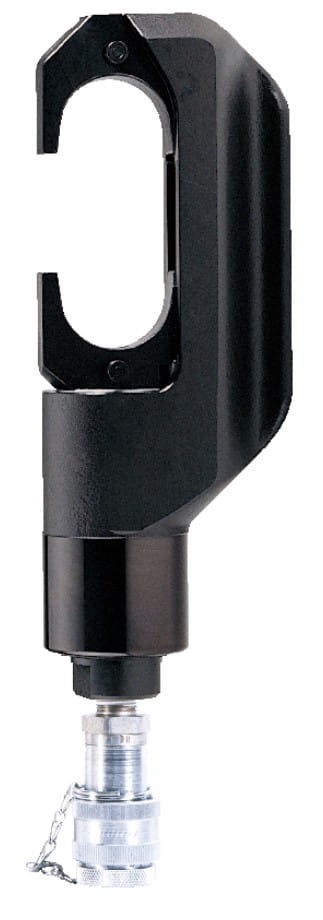

Hydraulic crimping head 120-500 mm2
Availability:
temporarily unavailable
Dispatched within:
24 hours
On warehouse:
0
Producer:
Electra Polska
Product code:
G24
Description
Model G24
Hydraulic head
Die series 24
“C” series die head
Weight 5.6 kg
Working range Al max 500 mm2 Cu max 625 mm2 AFL max 6-240 mm2
Working pressure 700 bar
Pressure 150 kN
Oil capacity required 68 cc
Biodegradable oil
Operating range at -20 to +40 degrees C
Height 320 mm
Works with all Electra 700 bar pumps
(page 173-176 )
Options :
Option - M24 series dies as below
G24/1 Adapter for 23 series dies ( max 400 mm2 ).
