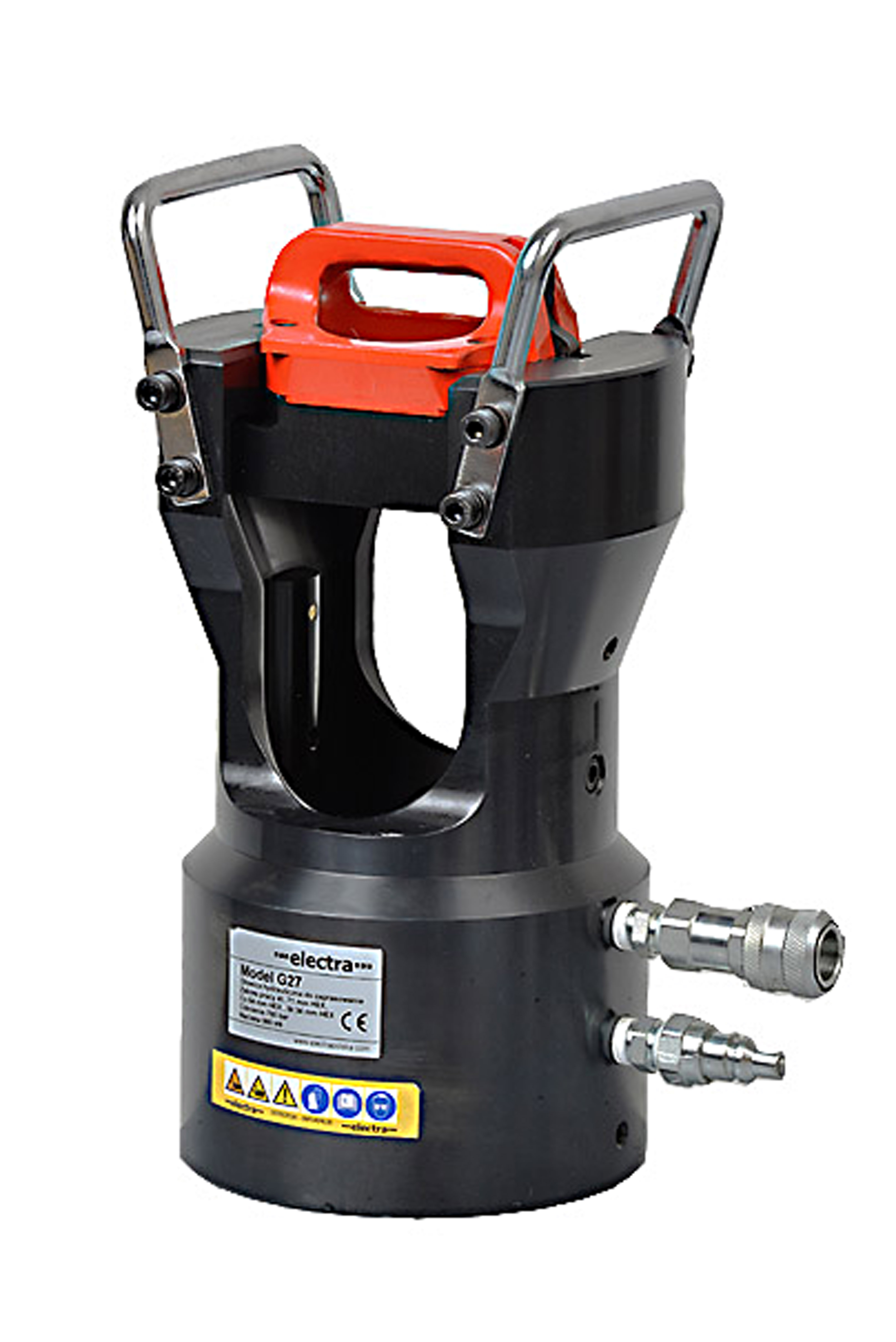

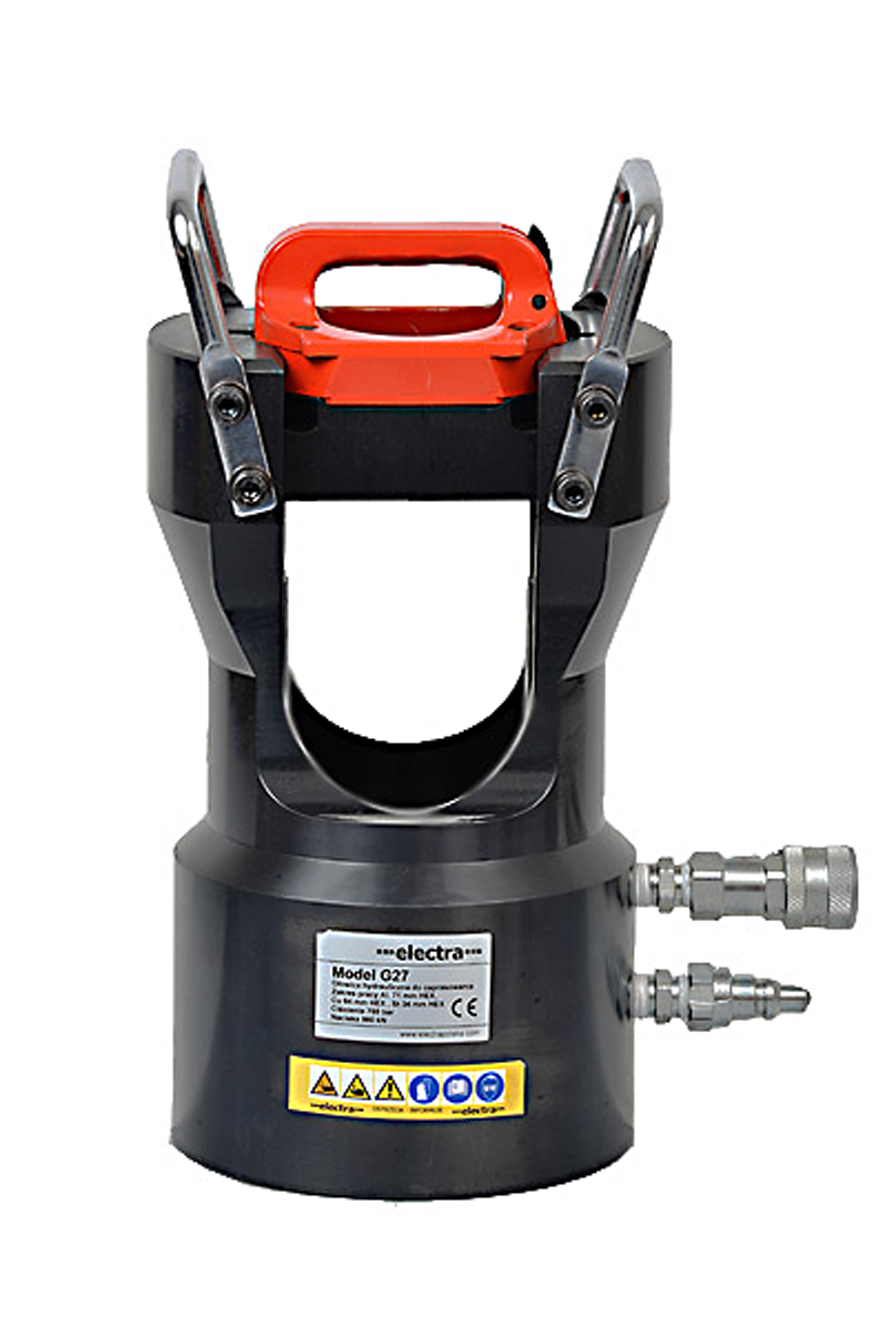

Hydraulic crimping head 980 kN
Availability:
running out
Dispatched within:
24 hours
On warehouse:
2
Producer:
Product code:
G27
Description
Model G27
Pressure
980 kN ( 100 tons )
Die series
27
Height
364 mm
Technical data
| Die series | 27 |
|---|---|
| Weight | 31.4 kg |
| Working pressure | 700 bar double hydraulic circuit |
| Pressure | 980 kN ( 100 tons ) |
| Operating range at | -20 to +40 degrees C |
| Height | 364 mm |
| Country of origin | Poland |
| Working range | |
| Al max hex | 71 mm |
| Cu max hex | 64 mm |
| St max hex | 34 mm |
| Required oil capacity | 315 cm³ |
Key features
- Hydraulic head
- “U” series die head
- Biodegradable oil
- Option - 27 series dies available dies at https://electra-cabling.com/en_GB/c/Series-27-1000-kN/355
