Hydraulic drum jack 10 000 kg
Description
Hydraulic cable drum jacks, 600 series, with solid shaft axle
Technical data
| Axle length | 240 cm |
|---|---|
| Drum handling | up to 3600 mm |
Product description
Solid base with hydraulic cylinders - lifting drums with a load of 10 tonnes
Two columns with bearing supports under the solid axle make drum rotation easier
The stability of the structure makes it easier to work in heavy terrain on the construction site, speeding up work when setting up the equipment. 90 mm axle with thrust plates preventing the drum from moving during operation
Easy-to-operate drum lifting with foot-pumped cylinders Axles with 90 mm diameter plates
Key features
- Base made of stable profile that does not cause sinking in the field
- Structure made of high-grade steel powder-coated in RAL 2000 color
- Multi-stage adjustment of the lifting height using bearing supports for the jack axle, variable in 10 cm steps
The set includes
Two bases, working axle, two bearing supports, two drum thrust plates

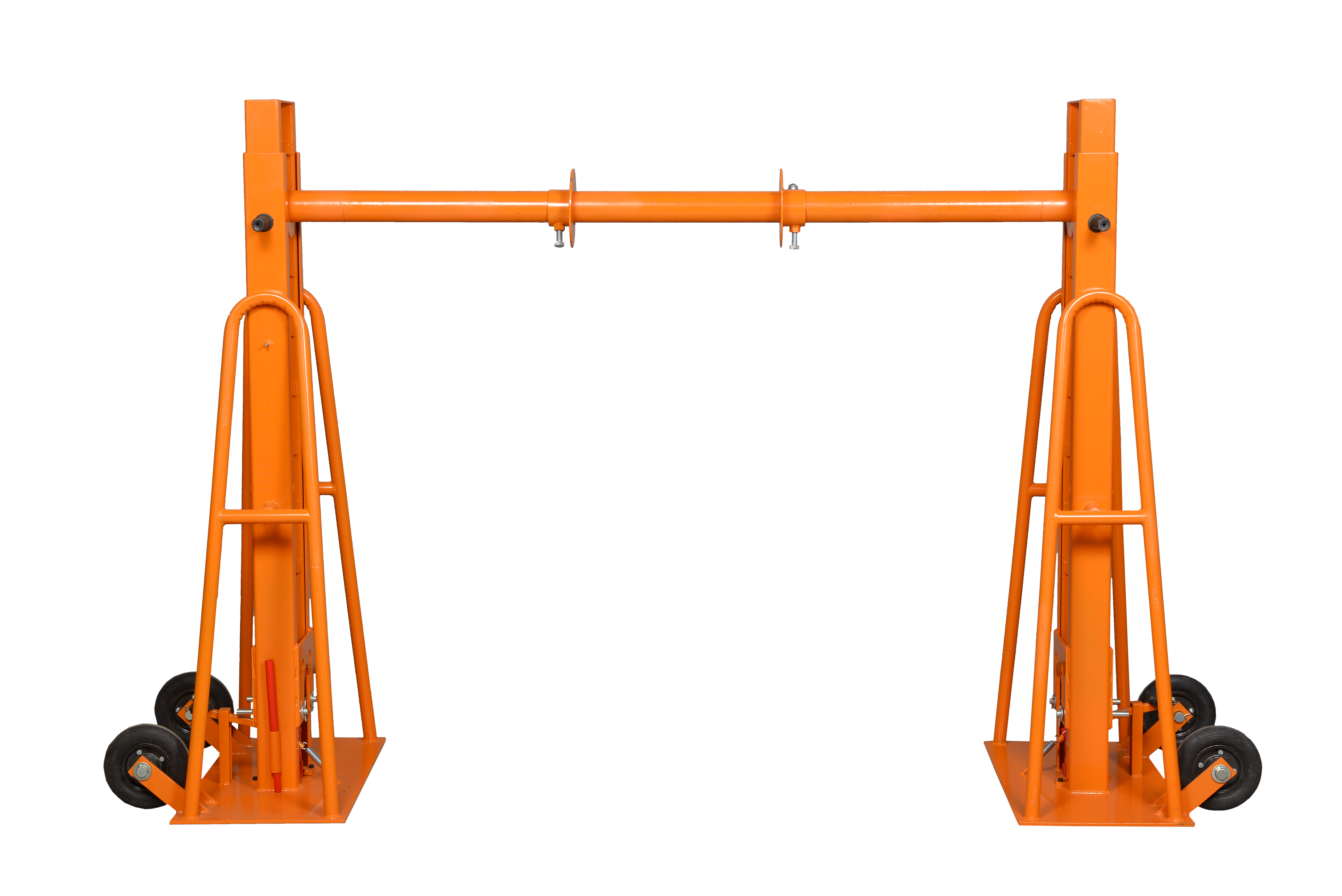

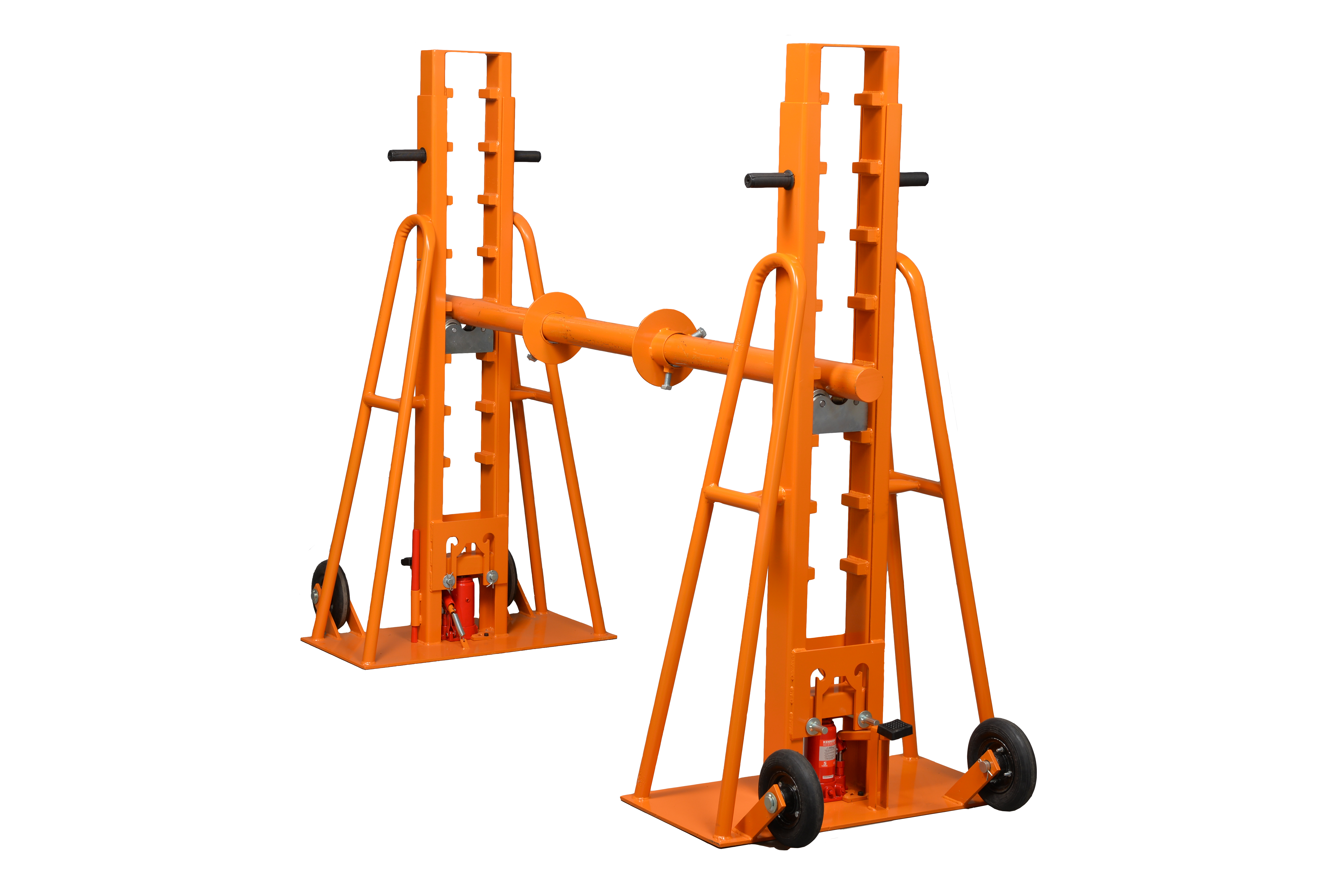

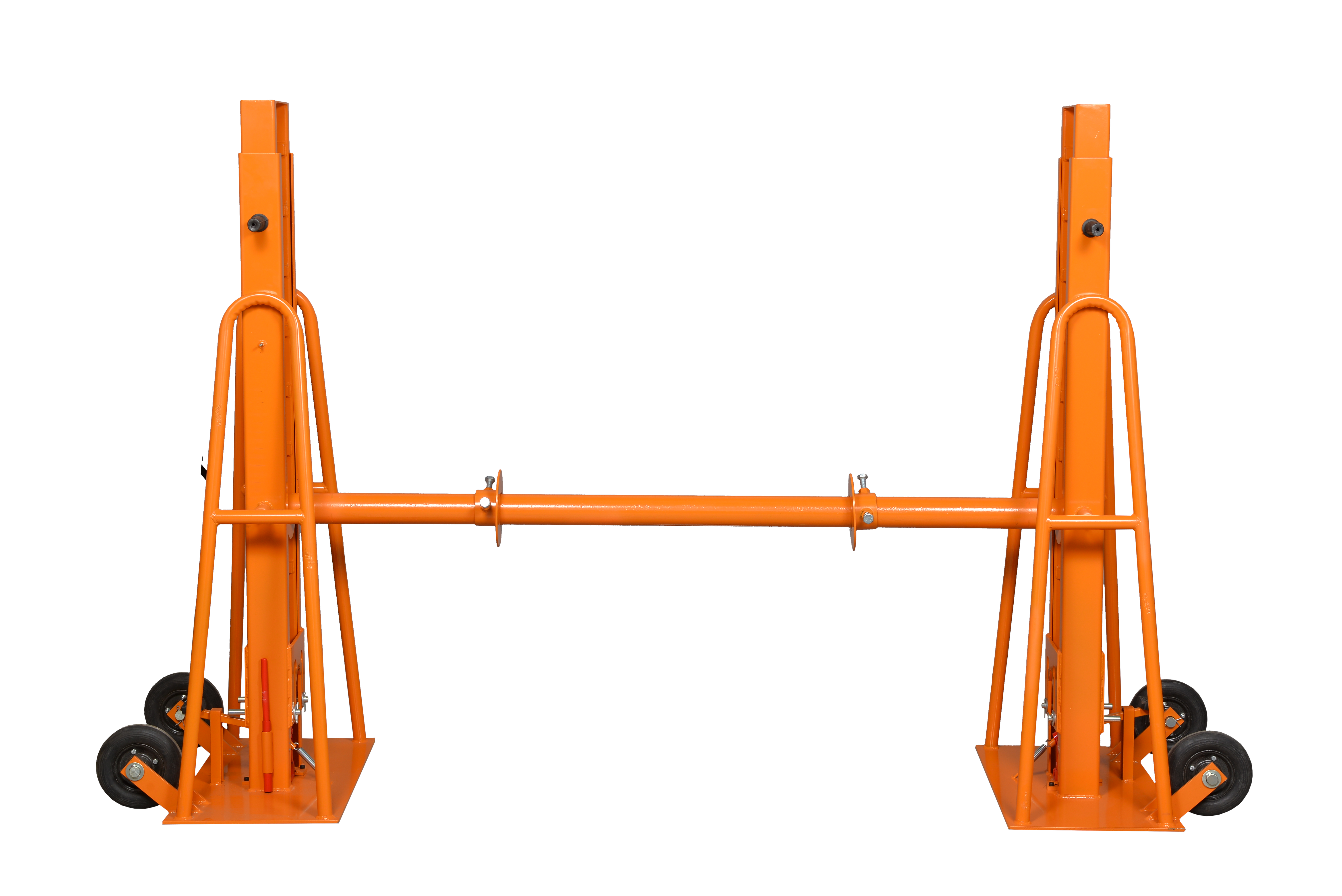

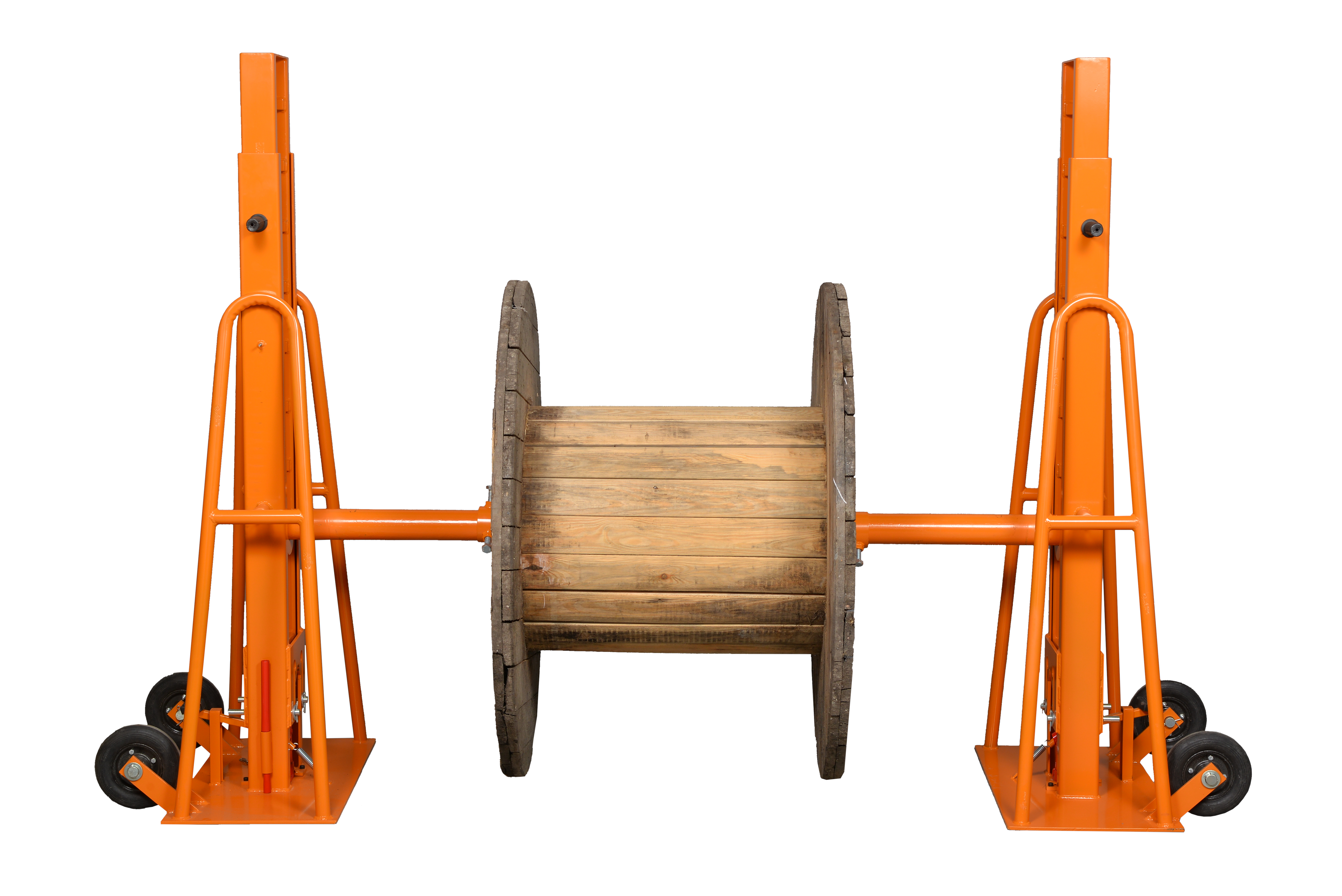

Cable drum jack
| Working load WL | 10 tons |
|---|---|
| Drum range | 900- 3600 mm |
- Axle 90 mm 2400 mm
- Bearing supports
| Base dimensions | 210x90x63 cm |
|---|---|
| Weight | 2 columns without axle 320 kg |
