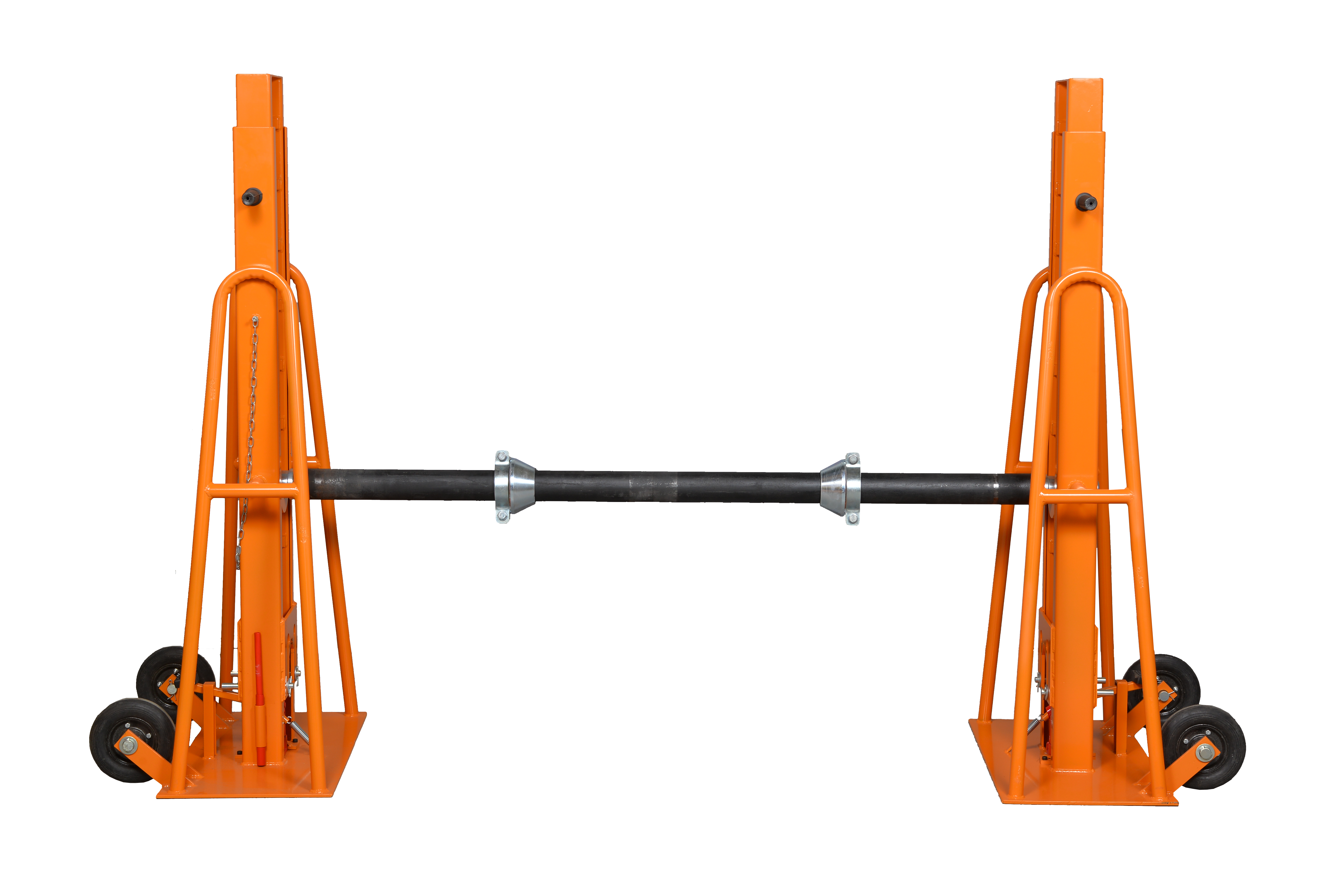

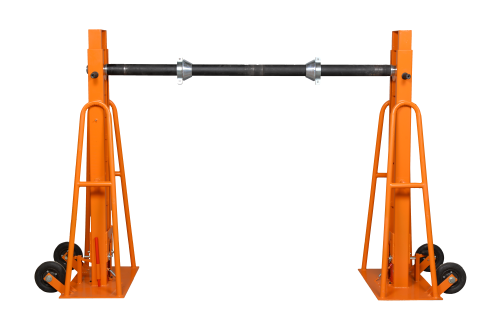

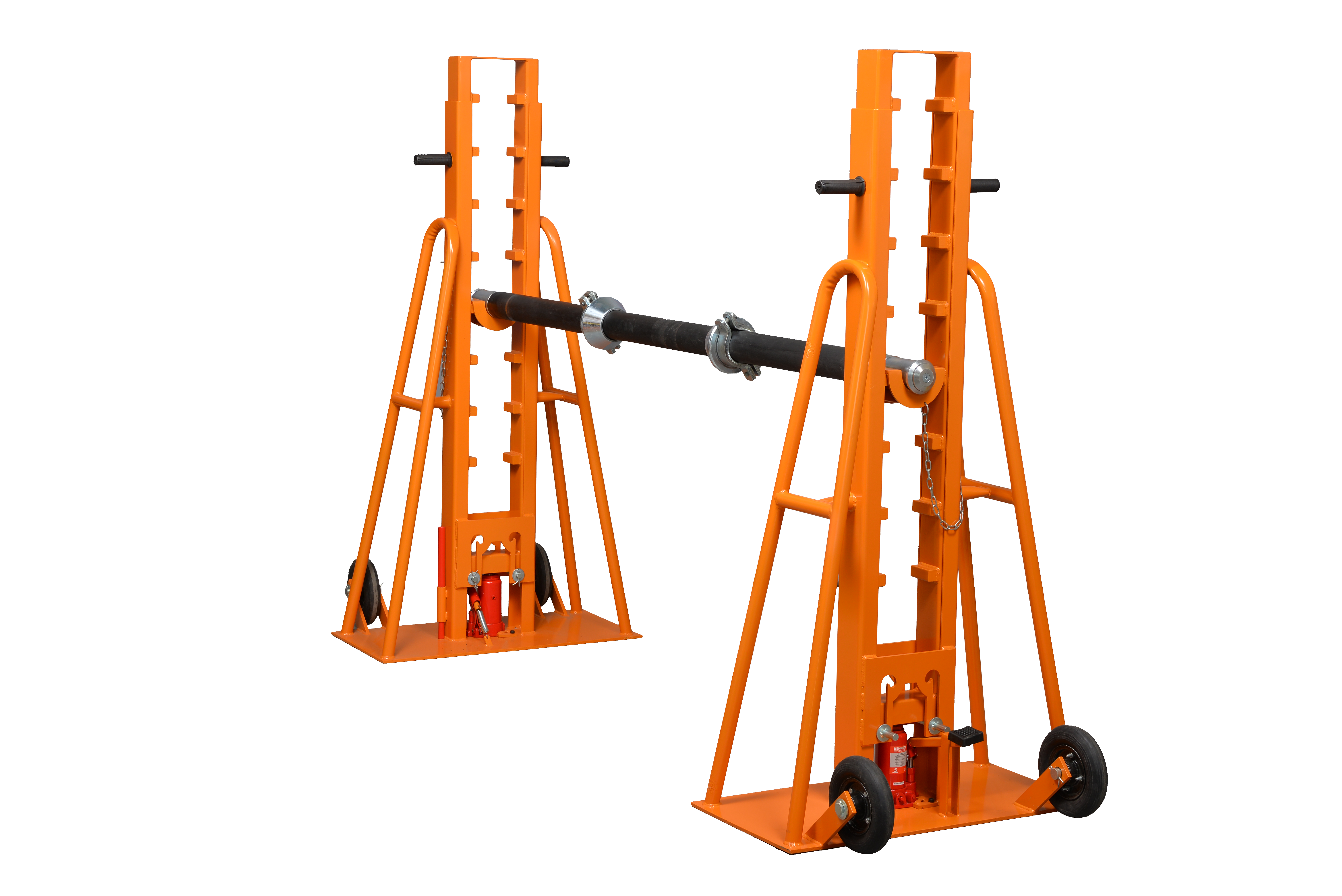

Hydraulic drum jack 10 000 kg
Description
Hydraulic cable drum jacks, 700 series, with solid shaft axle with bearings
Technical data
| Drum handling | up to 3400 mm drum diameter |
|---|
Product description
Solid base with hydraulic cylinders - lifting drums with a load of 10 tonnes
Two columns with bearing supports under the solid axle make drum rotation easier
The stability of the structure makes it easier to work in heavy terrain on the construction site, speeding up work when setting up the equipment. 90 mm axle with cones preventing the drum from moving during operation
Key features
- Base made of stable profile that does not cause sinking in the field
- Structure made of high-grade steel powder-coated in RAL 2000 color
- Multi-stage adjustment of the lifting height using supports variable in height in 10 cm steps
- (bed) on which the axle with bearing ends is placed
- Easy to operate drum lifting by foot-pumped cylinders
- Axle with cones, diameter 90 mm, length 2400 mm
Hydraulic jack for drums
Maximum load – 10 000 kg
| Two cylinders | 10 t |
|---|---|
| Dedicated for drums | 900 -3400 mm |
| Max drum width | about 200 cm |
Axle - length 240 cm, axle diameter 90 mm
| Dimensions | 1820x800x450 (one column) |
|---|---|
| Weight of the set | 330 kg |
The set includes
Two bases, working axle with bearings at the ends, two axle supports (bed), two drum thrust cones
