Hydraulic drum jack 2000 kg
Availability:
temporarily unavailable
Dispatched within:
24 hours
On warehouse:
0
Producer:
Product code:
K500/2
Description

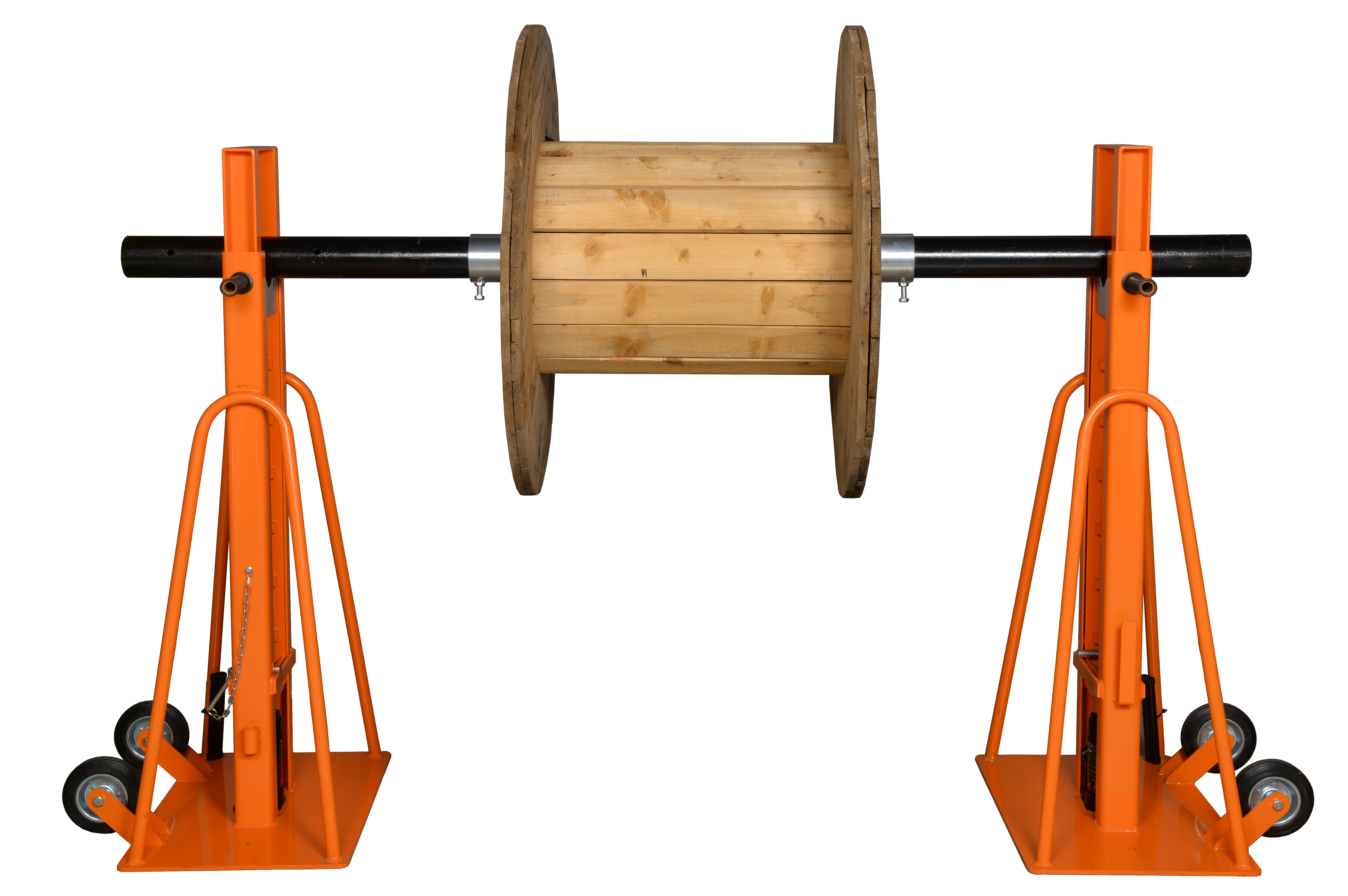

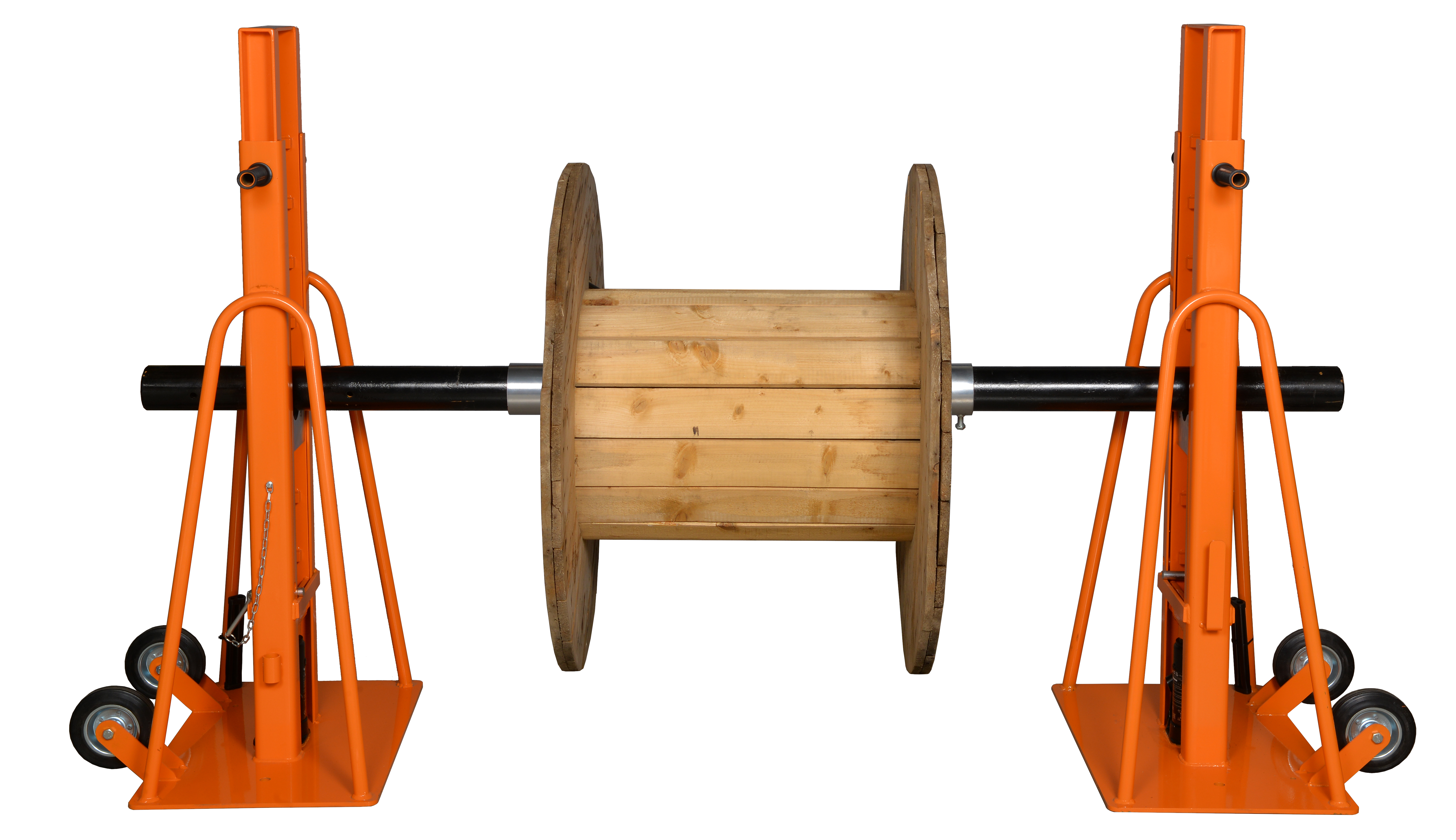

Hydraulic jack for drums 2000 kg
Technical data
| Stand dimensions | |
|---|---|
| Base | 300x500 mm |
| Height | 960 mm |
| Supporting axle | thick-walled pipe Ø 48 mm, length 1.5 m |
| Axle supports | roller type |
| Load capacity of the set | 2 t. |
| Minimum drum diameter | 500 mm. |
| Maximum drum diameter | 1600 mm |
| Maximum drum width | 1100 mm |
| Weight of a single stand | 34 kg |
| Axle weight | 11 kg |
| Weight of the set with axle | 79 kg |
Product description
Technical data
Key features
- the stand is equipped with 2 wheels ø 125 mm
- powder-coated structure
The set includes

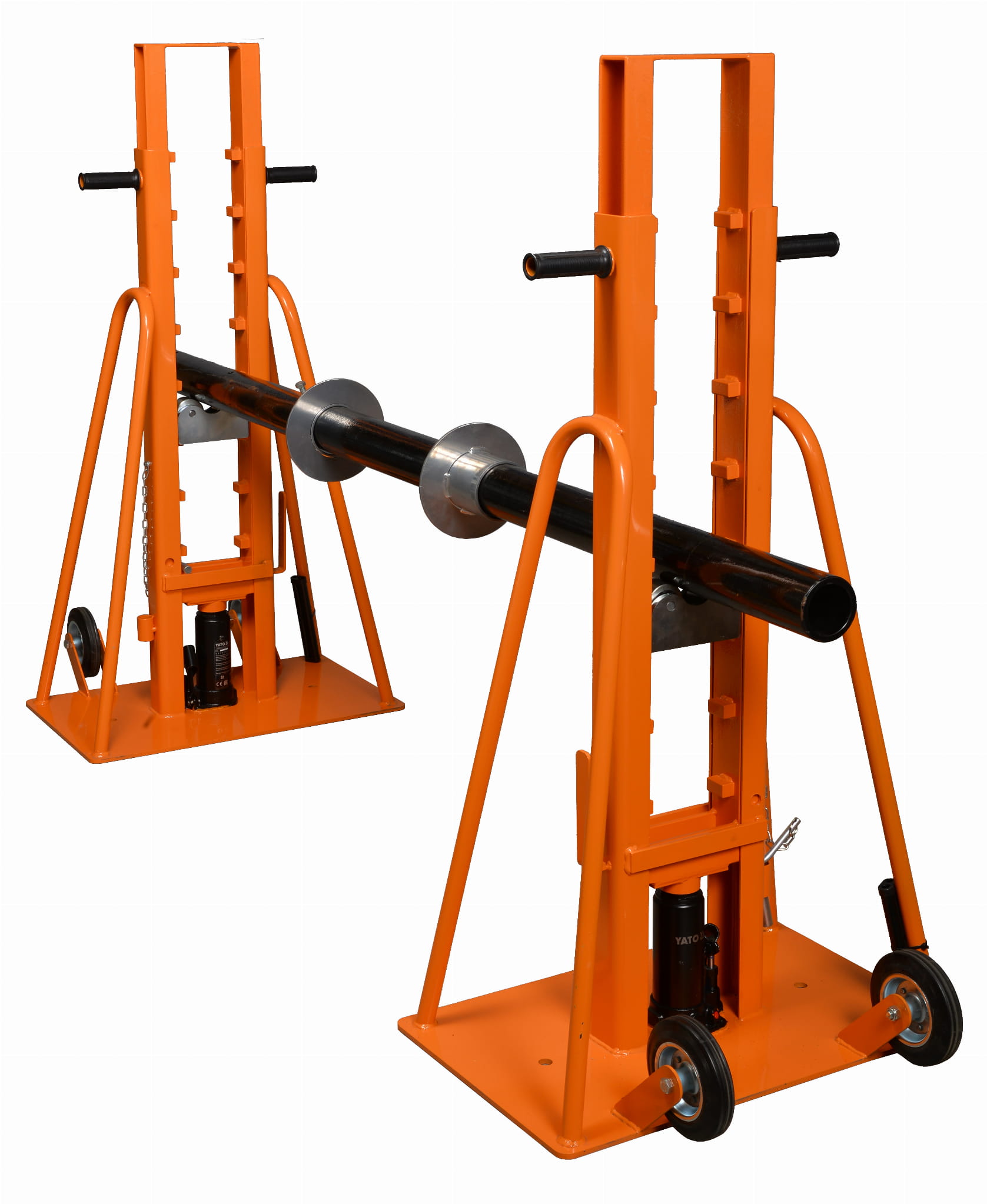

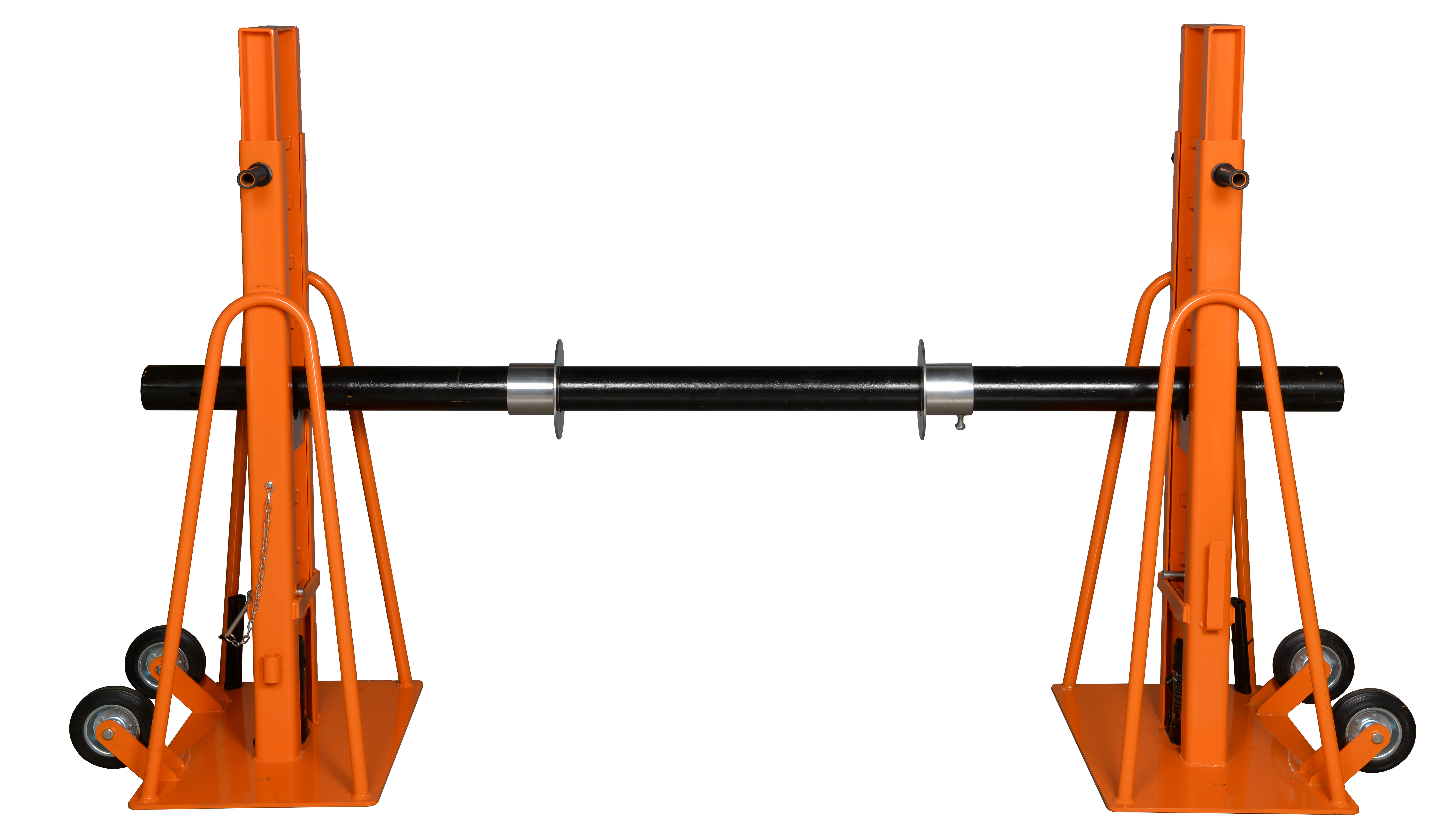

Two stands with sliders and supports.
- Two W-1600 hydraulic cylinders (single jack load capacity 1600 kg).
- S19 socket wrench

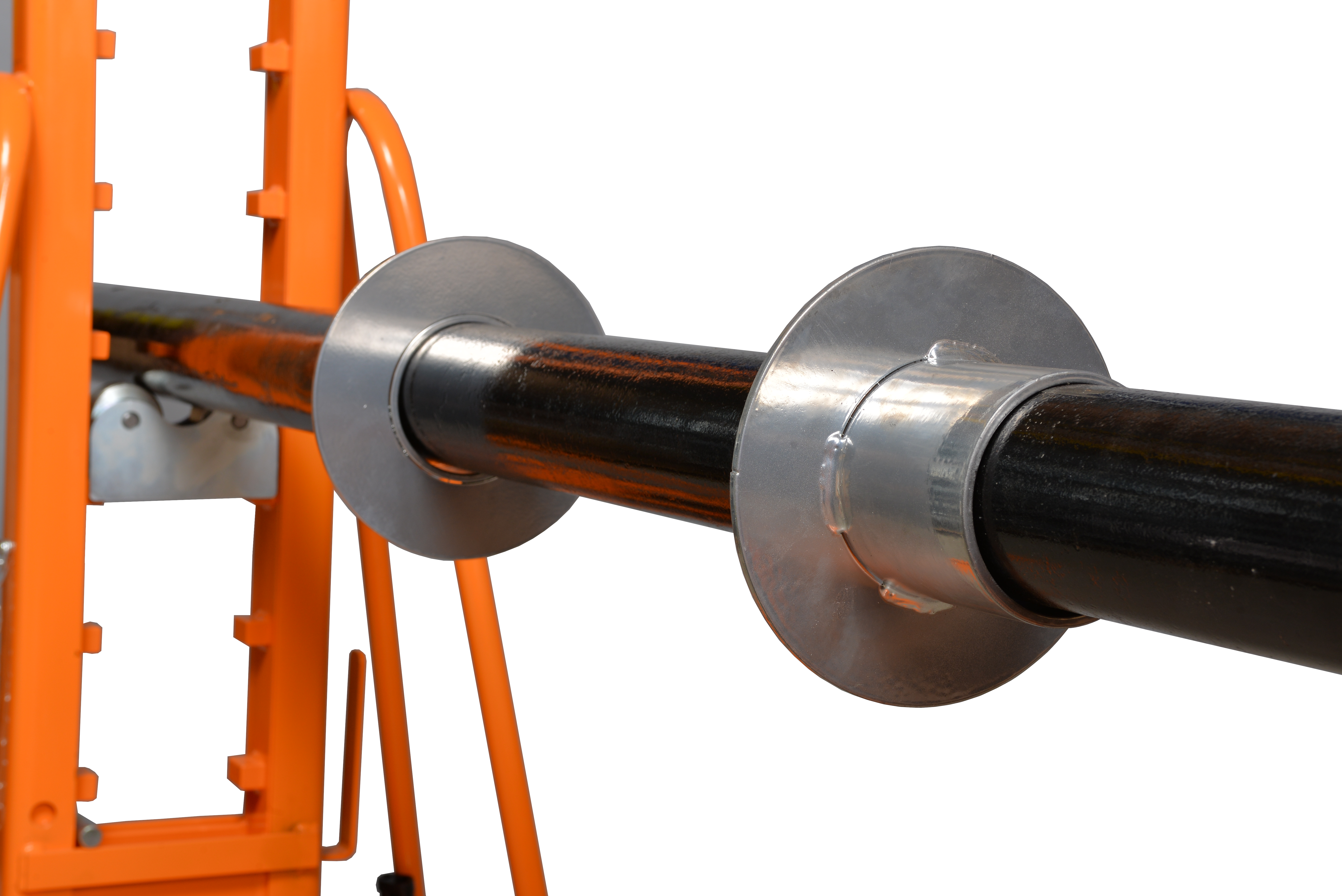

- Supporting axle – ø 48, L=1.5 m, equipped with 2 bushings (centring in the range of 48-80 mm and preventing the drum from moving during rewinding)
