Hydraulic drum jack 40 000 kg
Availability:
temporarily unavailable
Dispatched within:
production 90 days
On warehouse:
0
Producer:
Product code:
K900/40
Description

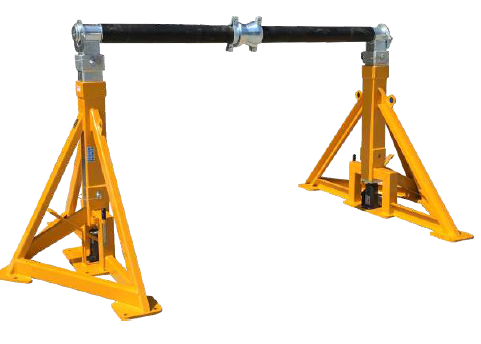

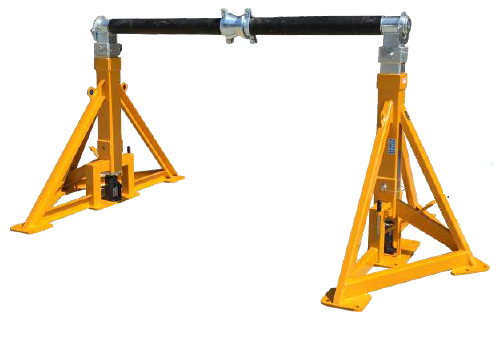

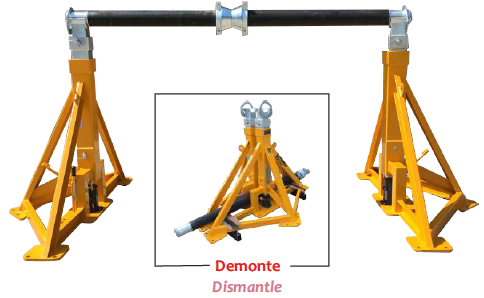

Hydraulic jacks for cable drums
Technical data
| Base dimensions | 2110x810 mm for the 30/40 ton version |
|---|
Key features
- Robust base with hydraulic cylinders - 40 ton version
- Two columns with profiled bed for axle . Solid shaft axle with bearing ends ( swivel )
- Stability of the structure facilitates work in heavy terrain on the construction site speeding up the work of disassembly equipment .
- Base made of stable profile in the shape of a triangle
- Structure made of high-grade steel powder-coated in RAL 2000 color
- Multi-stage lifting height adjustment of large hydraulic cylinders
- Solid shaft axle finished with bearing pivot ends
- K900/40 - axle diameter 127 mm - length 2800 mm
- Easy to operate drum lifting by foot-pumped cylinders
- Cone-shaped protection of the drum to prevent sliding within the working range
Set includes
Two bases, working axle bearing on ends , two conical protections
