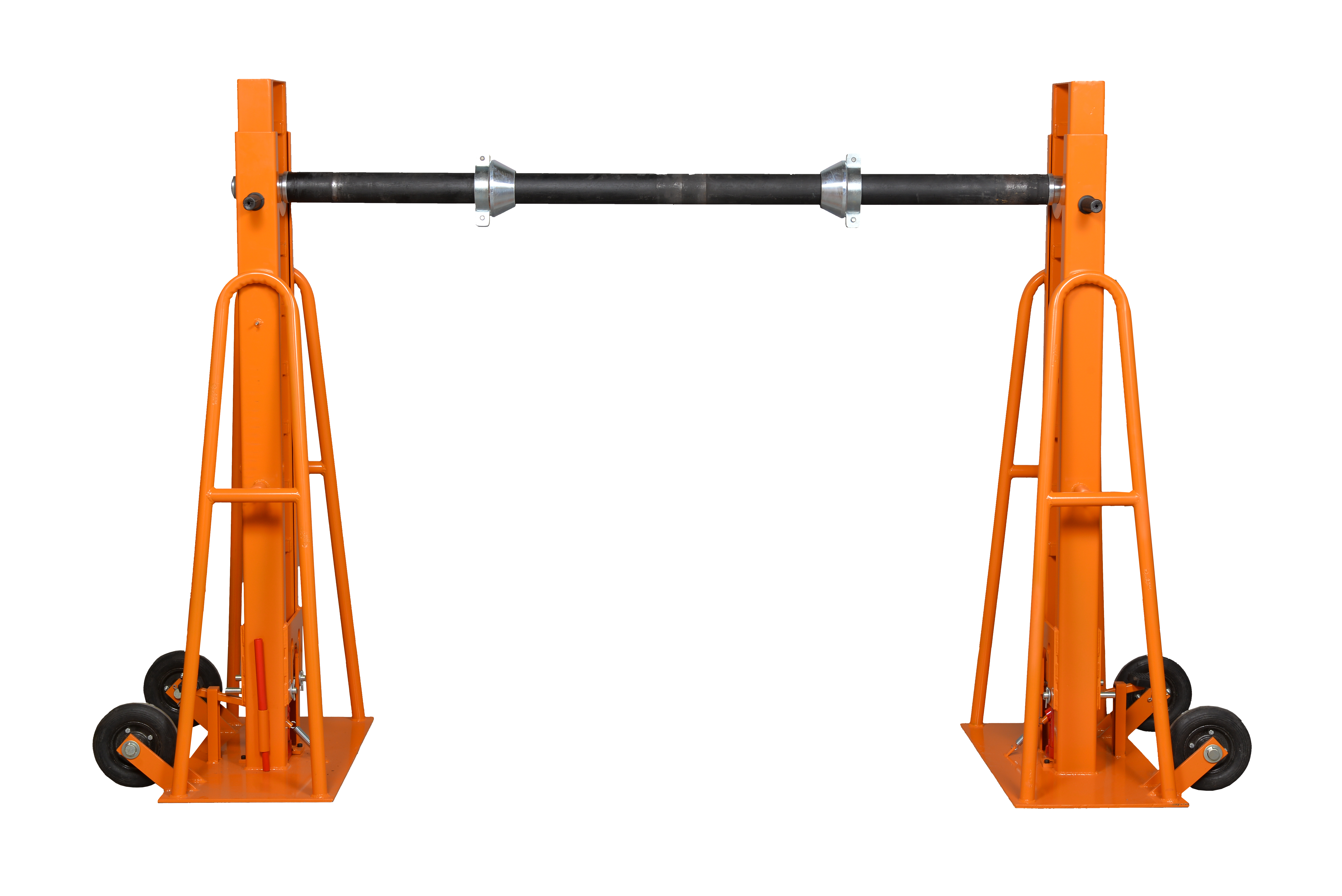

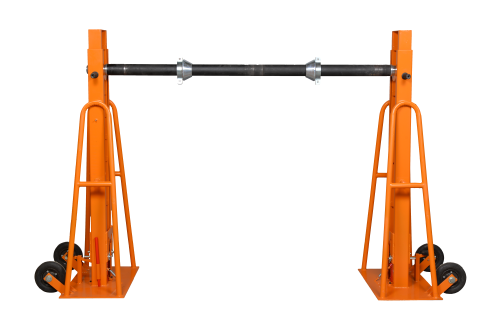

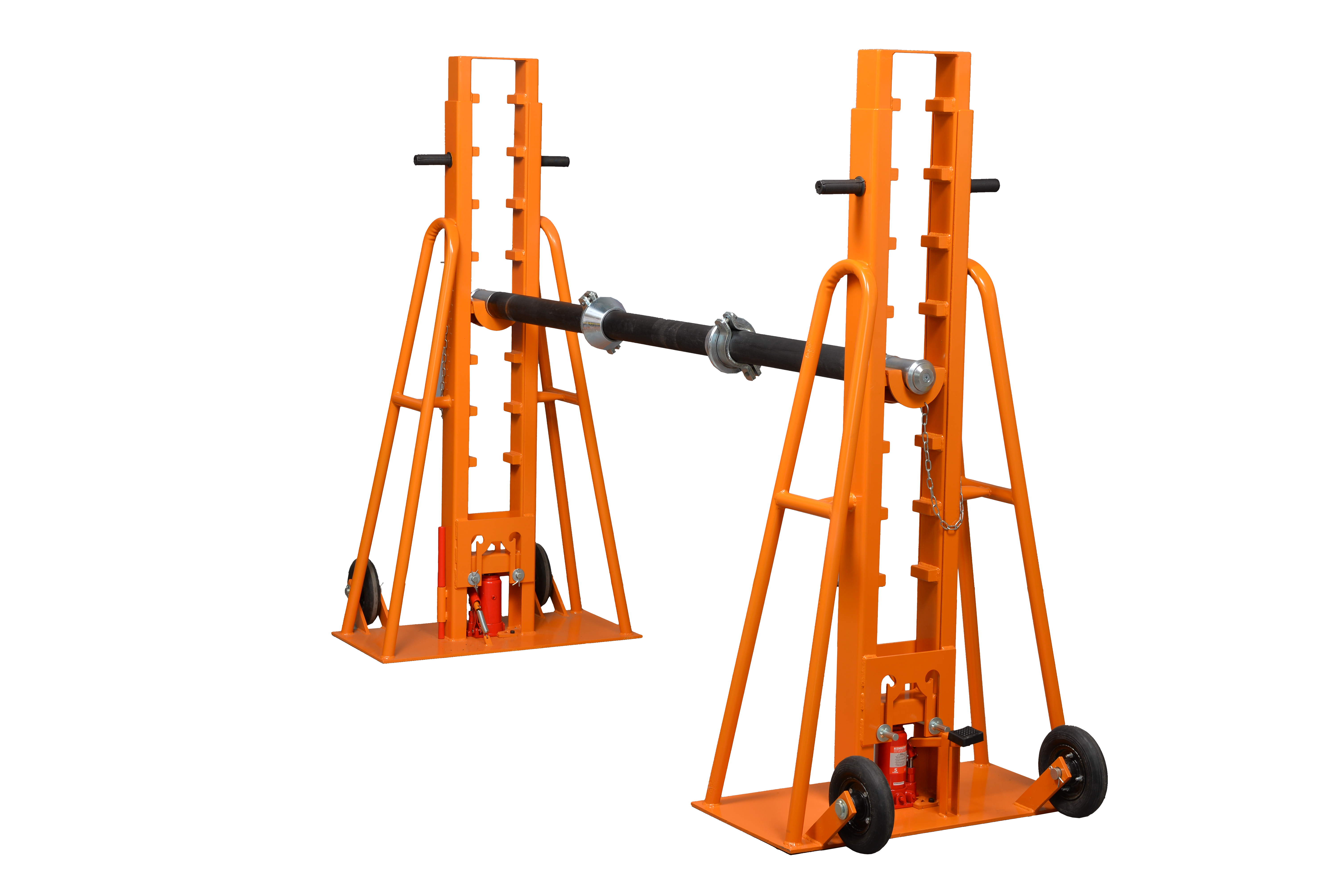

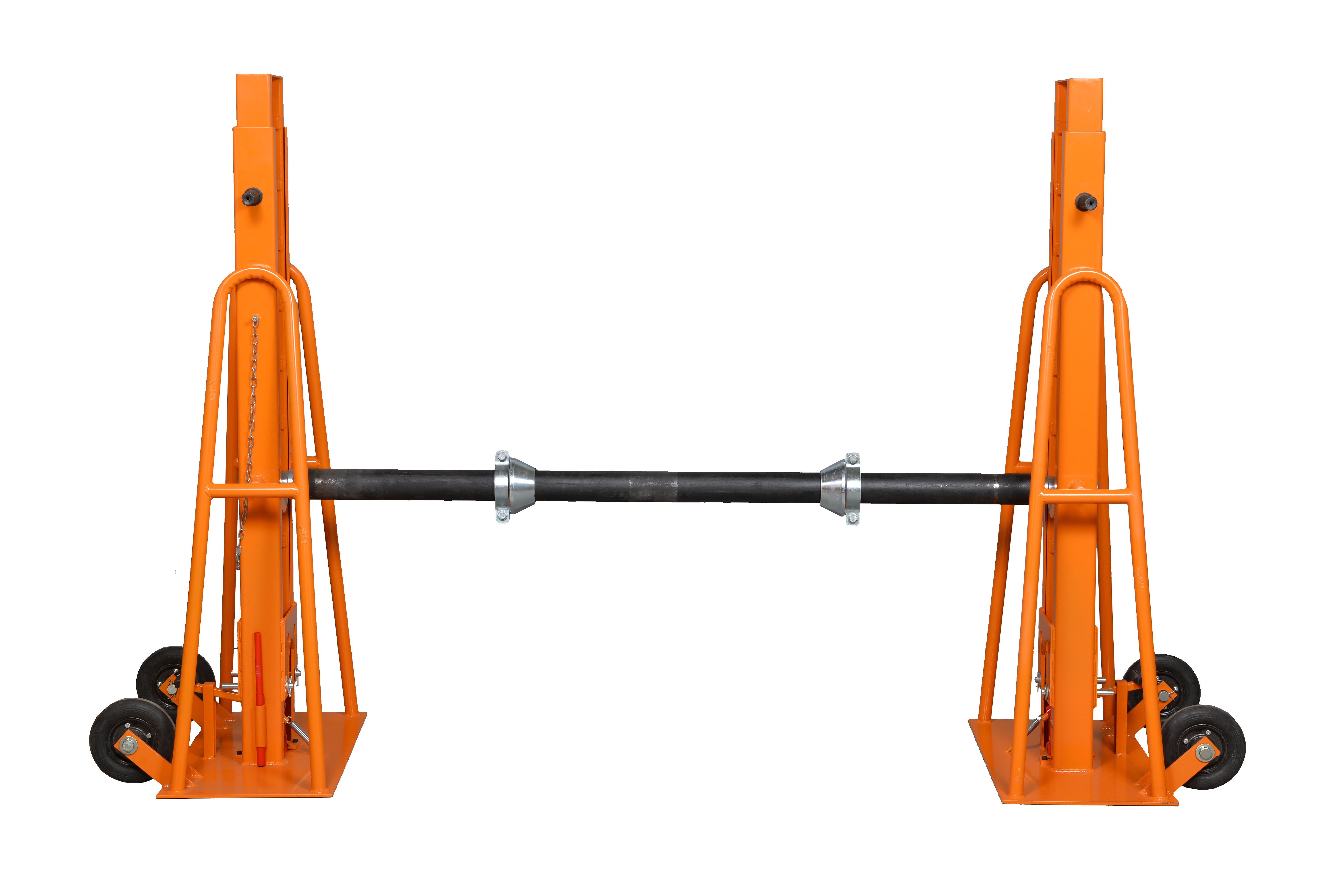

Hydraulic drum jack 5000 kg
Description
Hydraulic cable drum jacks, 700 series, with solid shaft axle with bearings
Technical data
| Drum handling | up to 3200 mm drum diameter |
|---|---|
| Axle with cones | 70 mm 2000 mm |
Product description
Solid base with hydraulic cylinders - lifting drums with a load of 5 tonnes
Two columns with bearing supports under the solid axle make drum rotation easier
The stability of the structure makes it easier to work in heavy terrain on the construction site, speeding up work when setting up the equipment. 70 mm axle with cones preventing the drum from moving during operation
Key features
- Base made of stable profile that does not cause sinking in the field
- Structure made of high-grade steel powder-coated in RAL 2000 color
- Multi-stage adjustment of the lifting height using supports variable in height in 10 cm steps
- (bed) on which the axle with bearing ends is placed
- Easy to operate drum lifting by foot-pumped cylinders
Cable drum jack
| Working load WL | 5 tonnes |
|---|---|
| Drum range | 900- 3200 mm |
Axle 70 mm 2000 mm
| Base dimensions | 1400x600x800 mm |
|---|---|
| Weight of set | 200 kg |
The set includes
Two bases, working axle with bearings at the ends, two axle supports (bed), two drum thrust cones
