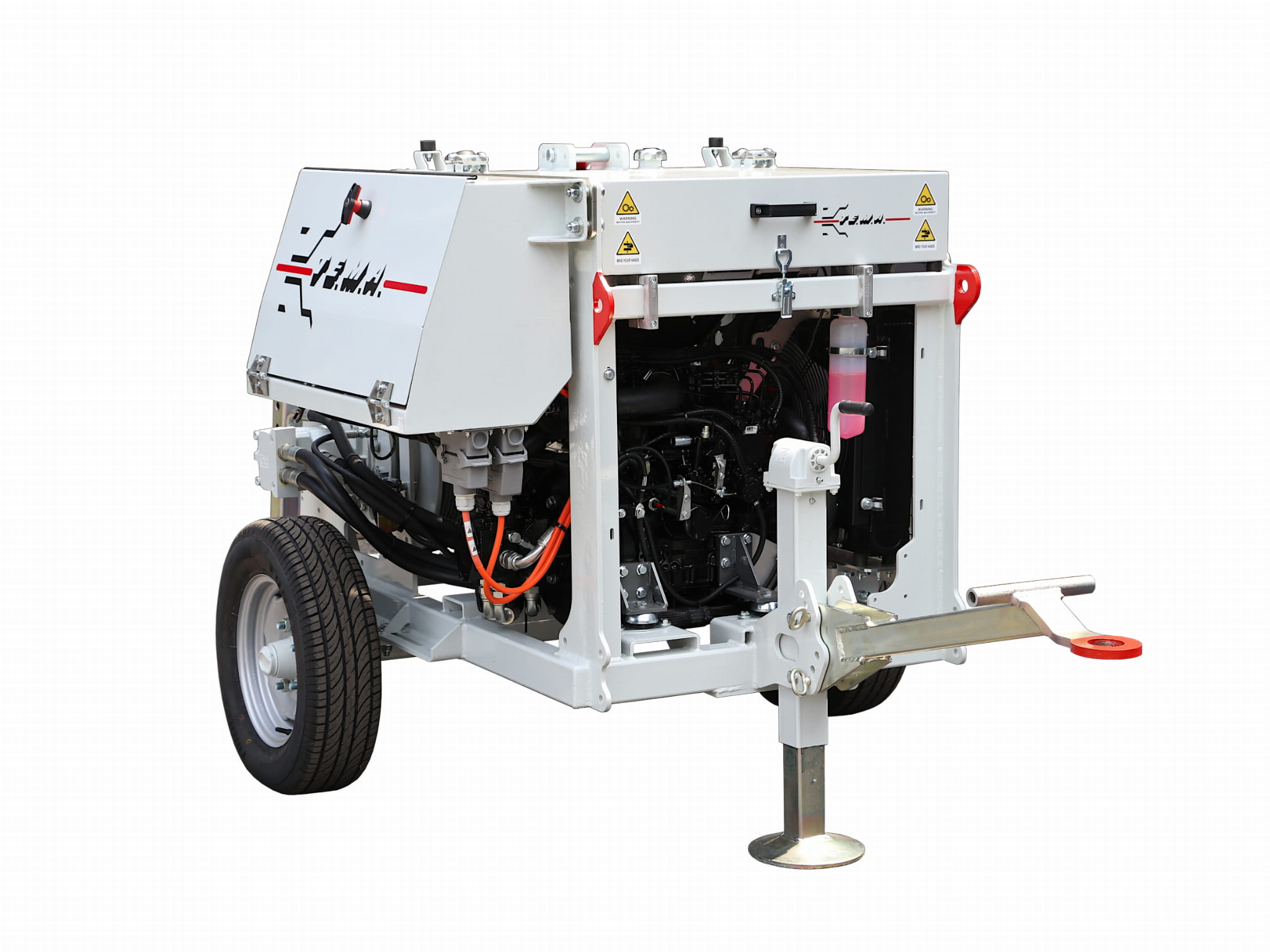

Hydraulic front drum winch 30 kN capacity
Availability:
zapytaj o cenę
On warehouse:
0
Producer:
Tema Italy
Product code:
109T2
- ask about price
-
ask about product
-
recommend to a friend
Description
Drum dimensions ø
350/510 x 620 mm
Drum capacity
350 m rope Ø 13 mm
Weight without rope
840 kg
Technical data
| Drum dimensions ø | 350/510 x 620 mm |
|---|---|
| Drum capacity | 350 m rope Ø 13 mm |
| Weight without rope | 840 kg |
| Performance | |
| Max pull | 30 kN |
| Max speed | 65 m/min |
| Speed at max pull | 18 m/min |
Engine
Diesel (25 hp) 19 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
Standard features
- 1 hydraulic circuit with negative brake system

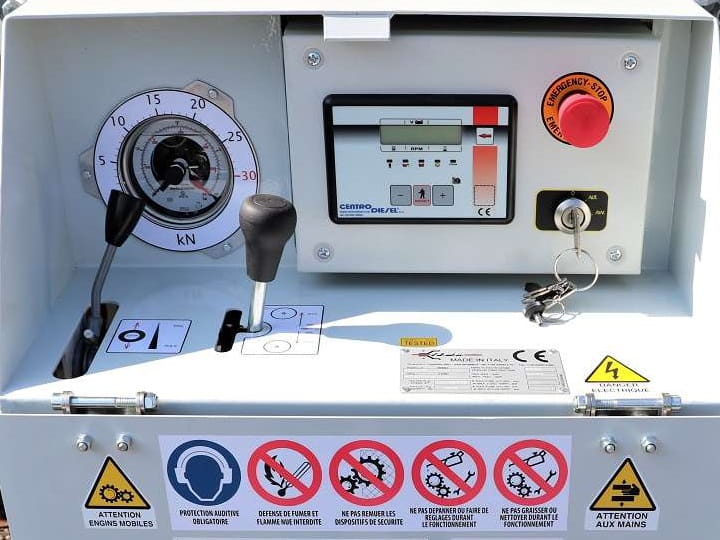

- 1 dynamometer for direct reading of pulling value with load-limiter device
- Independent mechanical stabilizers (30 kg)
- Rigid axle with tyres for towing up to 30 km/h (76 kg)
- Balanced top lifting point and anchoring attachments
Optional equipment
11-PW Road trailer kit (66 kg)
14-PW Large groove capstan 10 kN Capacity with rope-holder clamp (41 kg)
Special features upon request
03-PW Remote control unit c/w console 5 m cable (22 kg)
04-PW Radio control unit (10 kg)
13-PW Pre-heater (up to -30°C) (45 kg)
