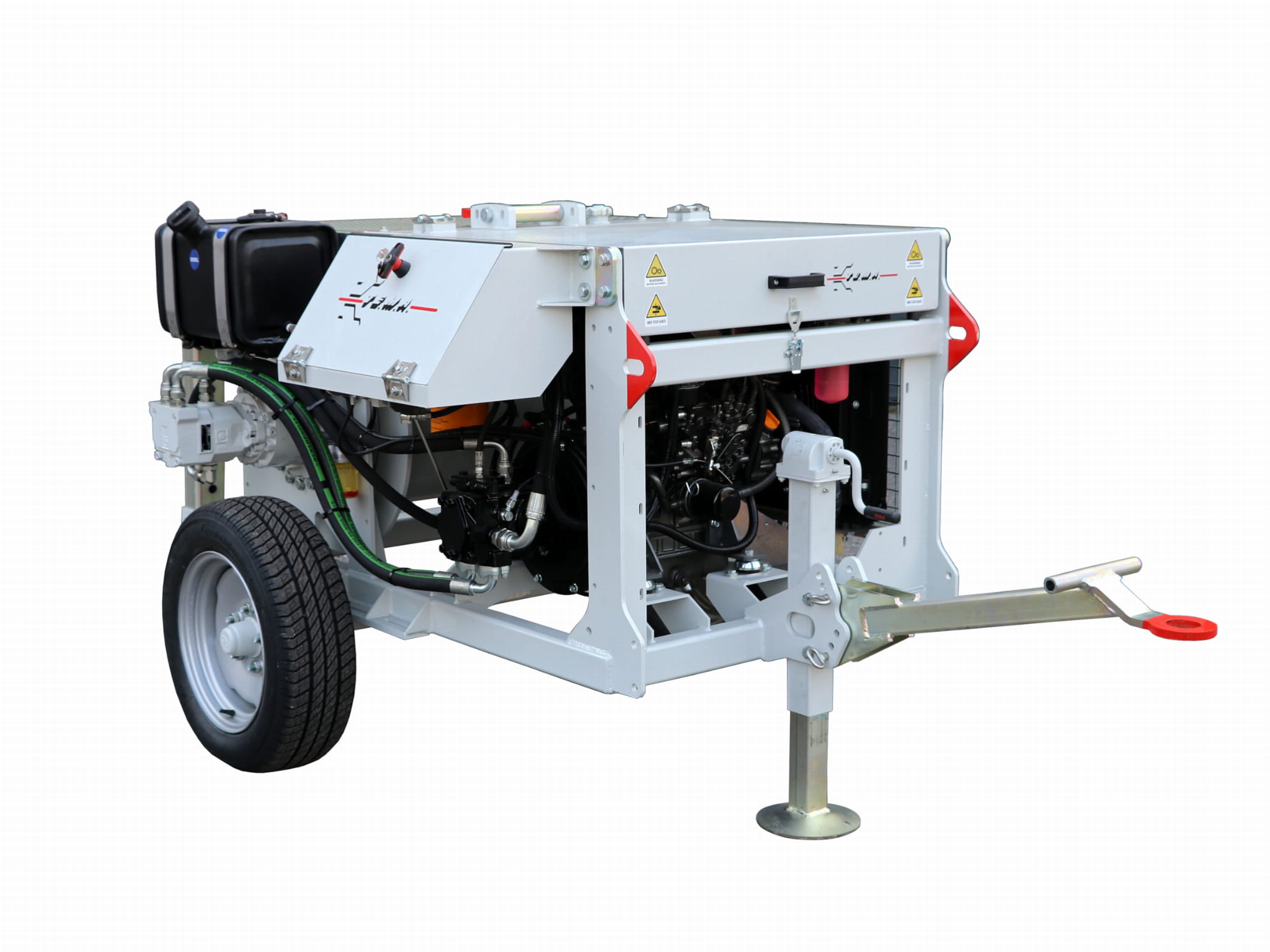

Hydraulic front drum winch 55 kN capacity
Availability:
zapytaj o cenę
On warehouse:
0
Producer:
Tema Italy
Product code:
109T5
- ask about price
-
ask about product
-
recommend to a friend
Description
Drum dimensions ø
450/660 x 700 mm
Drum capacity
350 m rope 18 mm
Weight without rope
1100 kg
Technical data
| Drum dimensions ø | 450/660 x 700 mm |
|---|---|
| Drum capacity | 350 m rope 18 mm |
| Weight without rope | 1100 kg |
| Performance | |
| Max pull | 55 kN |
| Max speed | 85 m/min |
| Speed at max pull | 15 m/min |
Engine
Diesel (36,5 hp) 27 kW
Cooling liquid
Emission standard - (UE)2016/1628 Stage V
Standard features
- 1 hydraulic circuit with negative brake system
- 1 dynamometer for direct reading of pulling value with load-limiter device
- Independent mechanical stabilizers (30 kg)
- Rigid axle with tyres for towing up to 30 km/h (76 kg)
- Balanced top lifting point and anchoring attachments
Optional equipment
11-PW Road trailer kit
14-PW Large groove capstan with rope-holder clamp
A - 10 kN Capacity
B - 30 kN Capacity
Special features upon request
03-PW Remote control unit c/w console 5 m cable (22 kg)
04-PW Radio control unit (10 kg)
36-PW Engine emission standard Stage IIIA - (36,5 hp) 27 kW
