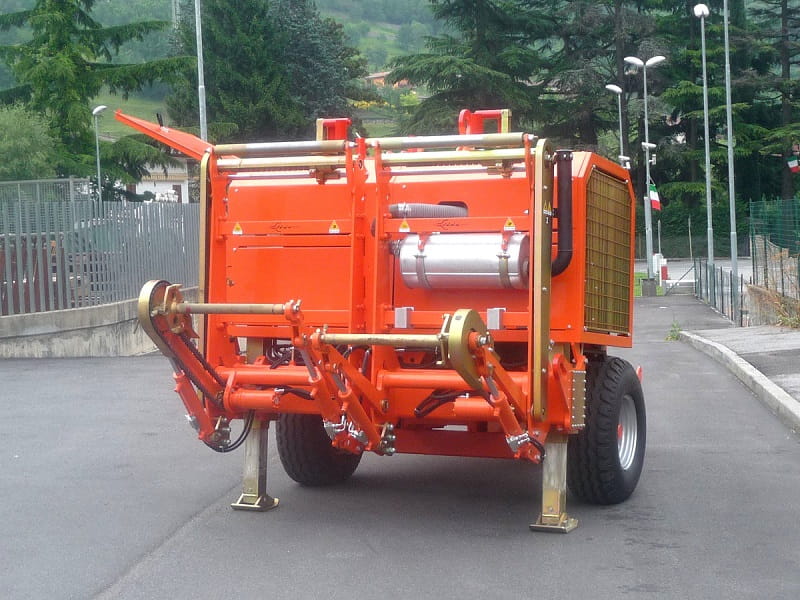

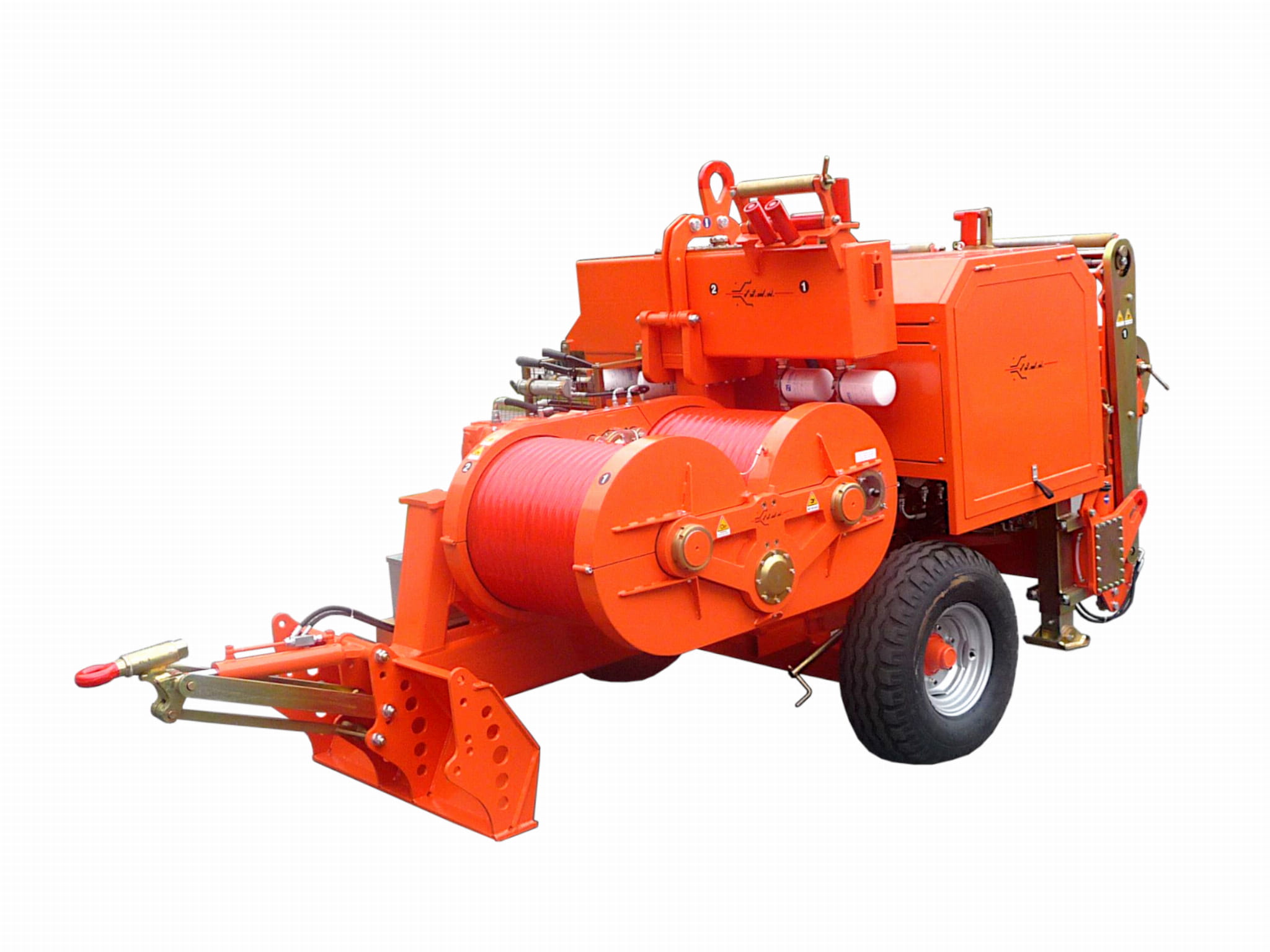

Hydraulic puller 100 kN capacity for one or two ropes for overhead stringing operations
Availability:
zapytaj o cenę
On warehouse:
0
Producer:
Tema Italy
Product code:
107R5.2
- ask about price
-
ask about product
-
recommend to a friend
Description
Bull-wheels diameter
550 mm
Max rope diameter
22 mm
Technical data
| Bull-wheels diameter | 550 mm |
|---|---|
| Max rope diameter | 22 mm |
| Weight | 5400 kg |
| Performance | |
| Max pull | 2x50 or 1x100 kN |
| Max speed | 5 km/h |
| Speed at max pull | 2 km/h |
| Engine | |
| Remote control unit c/w console | 5 m cable |
Engine
Diesel (143 hp) 105 kW
Cooling Liquid
Emission standard (UE)2016/1628 Stage V
Standard features
- 2 hydraulic circuits with negative brake system
- 2 dynamometers for direct reading of pulling value with load-limiter devices
- Thermally treated steel bull-wheels
- 2 automatic independent reel-winders for steel reel 1100÷1400 mm
- Rigid axle with tyres for towing up to 30 km/h
- Balanced top lifting point and anchoring attachments
Optional equipment
01-PW Preset for digital data recorder, counter-meter and speedometer
04-PW Radio control unit
05-PW Rope holder clamp (hydraulic)
07-PW Hydraulic power take-off for remote reel-winder
Special features upon request
13-PW Pre-heater (up to -30°C)
18-PW Counter-meter device
20-PW Dynamic speed pulling force control
36-PW Engine emission standard Stage IIIA - (125 hp) 93 kW
