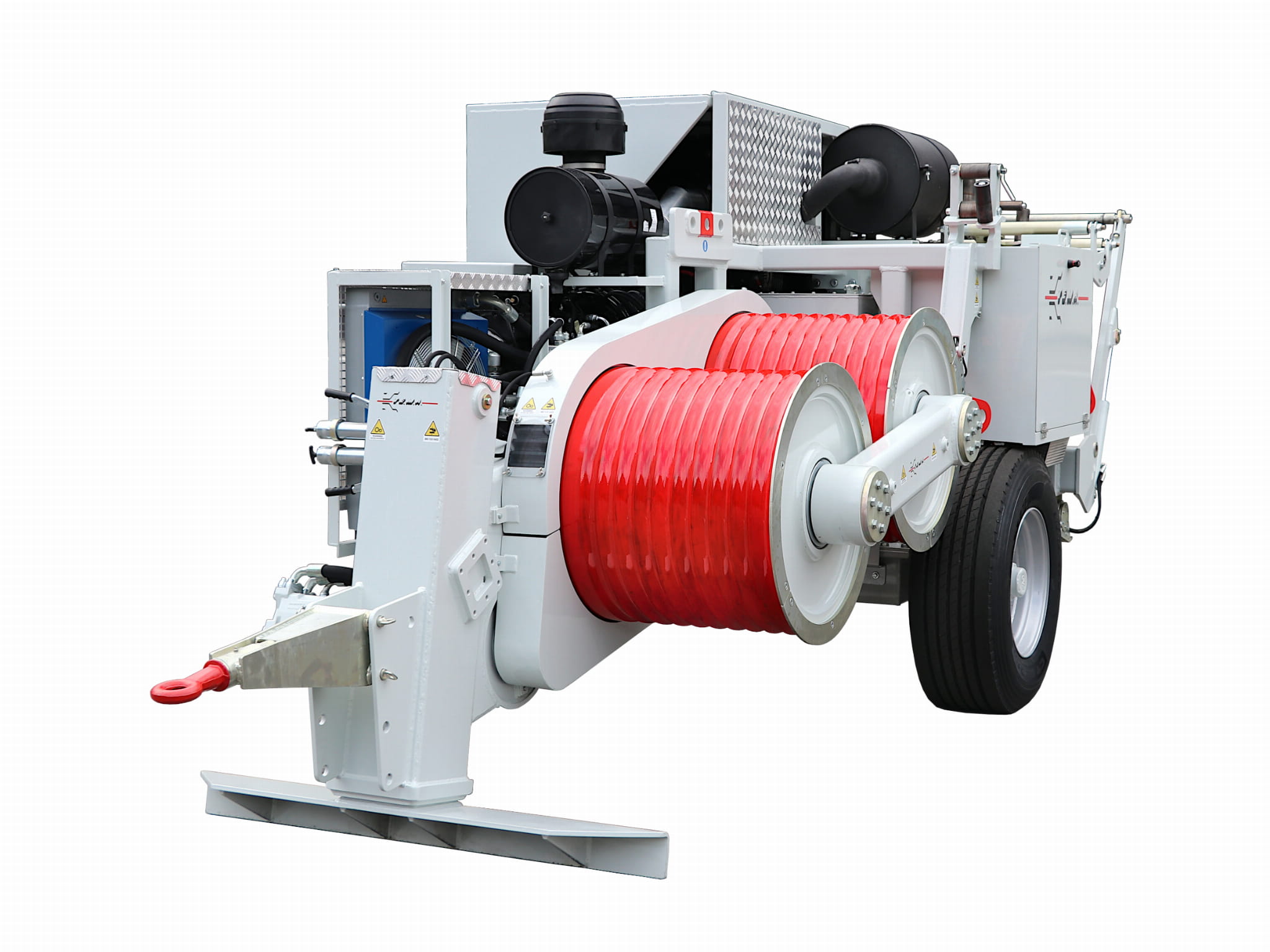

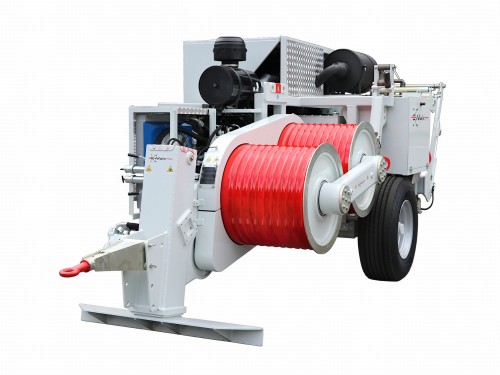

Hydraulic puller 240 kN capacity for single rope pulling on overhead stringing operations
Availability:
zapytaj o cenę
On warehouse:
0
Producer:
Tema Italy
Product code:
107R24
- ask about price
-
ask about product
-
recommend to a friend
Description
Bull-wheels diameter
800 mm
Max rope diameter
32 mm
Technical data
| Bull-wheels diameter | 800 mm |
|---|---|
| Max rope diameter | 32 mm |
| Weight | 9300 kg |
| Performance | |
| Max pull | 240 kN |
| Max speed | 4,5 km/h |
| Speed at max pull | 2,2 km/h |
Engine
Diesel (365 hp) 272 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage IIIA
Standard features
- 1 hydraulic circuit with negative brake system
- 1 dynamometer for direct reading of pulling value with load-limiter device
- Dynamic speed pulling force control
- Thermally treated steel bull-wheels
- Automatic reel-winder suitable for steel reel 1100÷1400 mm
- Remote control unit c/w console 5 m cable
- Front hydraulic stabilizer
- 2 back hydraulic stabilizers
- Rigid axle with tyres for towing up to 30 km/h
- Balanced top lifting point and anchoring attachments
Optional equipment
01-PW Preset for digital data recorder, counter-meter and speedometer
04-PW Radio control unit
05-PW Rope holder clamp (hydraulic)
07-PW Hydraulic power take-off for remote reel-winder
Special features upon request
13-PW Pre-heater (up to -30°C)
18-PW Counter-meter device
35-PW Engine emission standard Stage V - (272 hp) 210 kW
