Hydraulic puller 25 kN capacity for single rope pulling on overhead stringing operations as well as underground cabling
Availability:
zapytaj o cenę
On warehouse:
0
Producer:
Tema Italy
Product code:
107R2
- ask about price
-
ask about product
-
recommend to a friend
Description

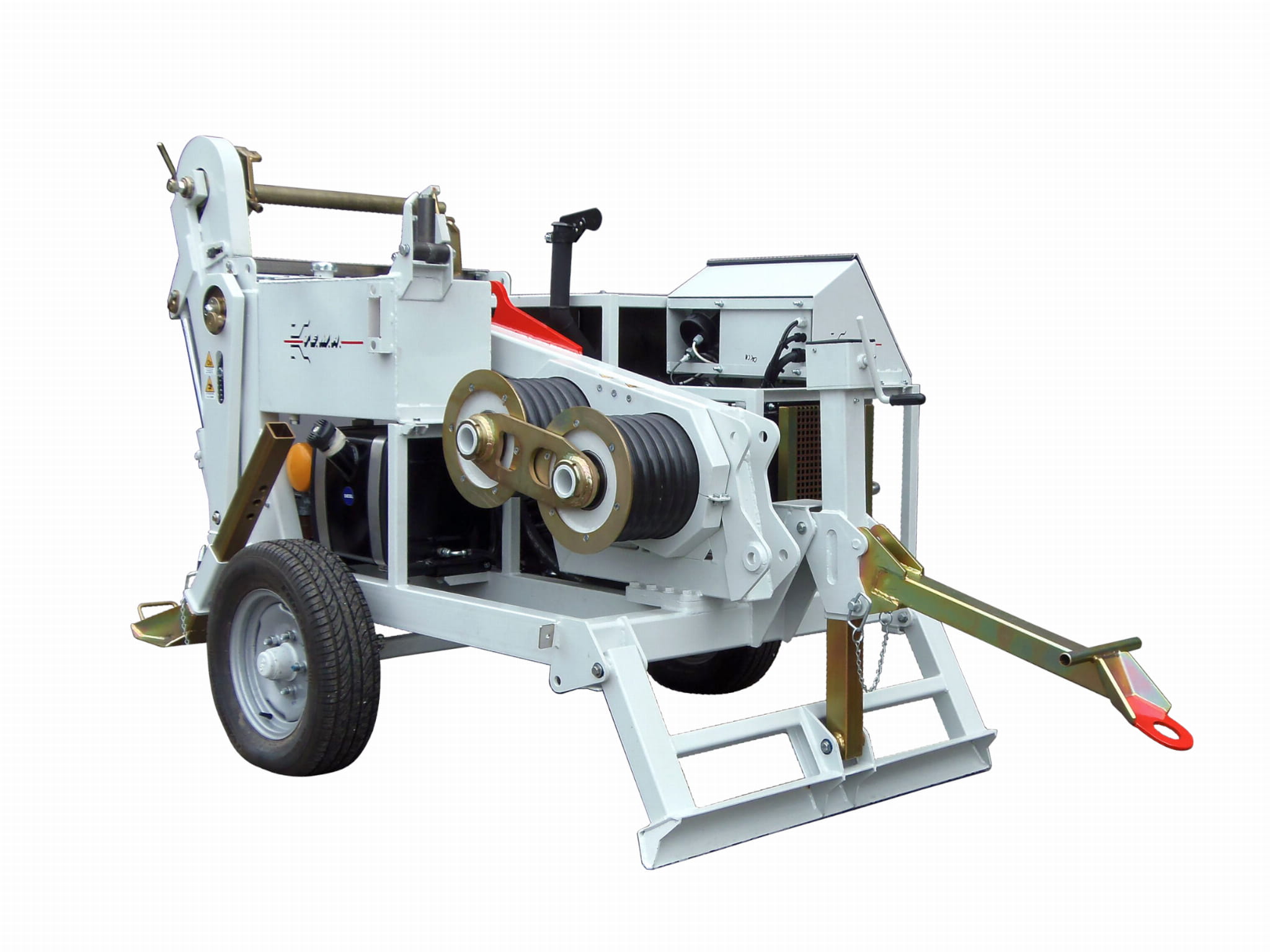

Hydraulic winch for overhead and underground cable lines, model 107R2

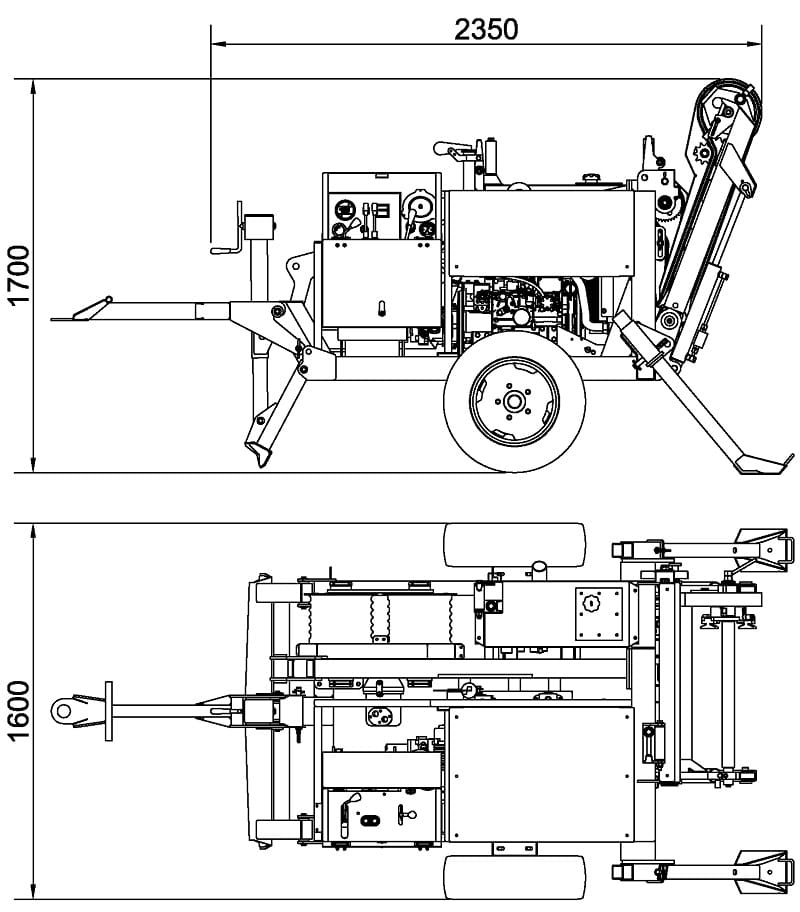

Length
2350 mm
Width
1600 mm
Height
1700 mm
Technical data
| Maximum load | 25 kN |
|---|---|
| Speed at maximum tension | 1.5 km/h |
| Maximum speed | 5.0 km/h |
| Force at maximum speed | 7.5 kN |
| Capstans | 250 mm |
| Maximum rope diameter | 10 mm |
| Weight | 950 kg |
| Length | 2350 mm |
| Height | 1700 mm |
| Width | 1600 mm |
Key features
- Performance
- Max pull 25 kN
- Max speed 5 km/h
- Speed at max pull 1,5 km/h
- Characteristics
- Bull-wheels diameter 250 mm
- Max rope diameter 10 mm
- Engine
- Diesel (25 hp) 18,6 kW
- Cooling Liquid
- Emission standard - (UE)2016/1628 Stage V
- Standard features
- 1 hydraulic circuit with negative brake system
- 1 dynamometer for direct reading of pulling value with load-limiter device
- Thermally treated steel bull-wheels
- Automatic reel-winder suitable for steel reel 1100÷1400 mm
- Rigid axle with tyres for towing up to 30 km/h
- Balanced top lifting point and anchoring attachments
- Optional equipment
- 01-PW Preset for digital data recorder, counter-meter and speedometer
- 11-PW Road trailer kit
- 18-PW Digital counter-meter device
