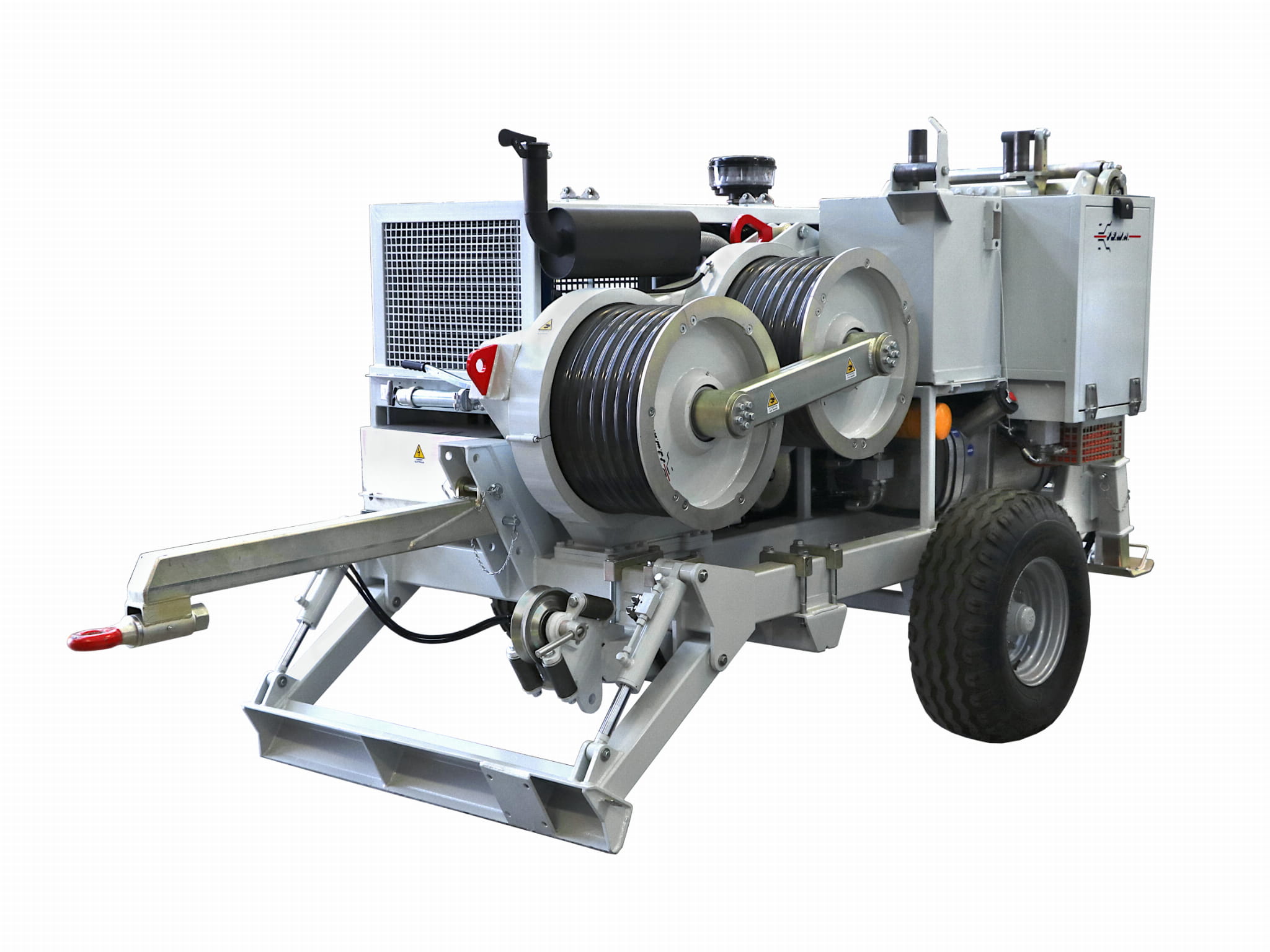

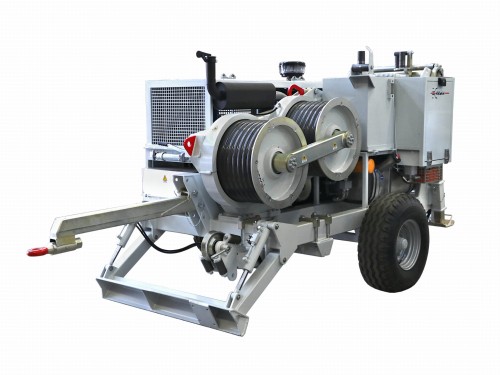

Hydraulic puller 70 kN capacity for single rope pulling on overhead stringing operations as well as underground cabling
Availability:
zapytaj o cenę
On warehouse:
0
Producer:
Tema Italy
Product code:
107R7
- ask about price
-
ask about product
-
recommend to a friend
Description
Bull-wheels diameter
400 mm
Max rope diameter
16 mm
Technical data
| Bull-wheels diameter | 400 mm |
|---|---|
| Max rope diameter | 16 mm |
| Weight | 2400 kg |
| Performance | |
| Max pull | 70 kN |
| Max speed | 5 km/h |
| Speed at max pull | 1,5 km/h |
Engine
Diesel (73 hp) 54 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
Standard features
- 1 hydraulic circuit with negative brake system
- 1 dynamometer for direct reading of pulling value with load-limiter device
- Thermally treated steel bull-wheels
- Automatic reel-winder suitable for steel reel 1100÷1400 mm

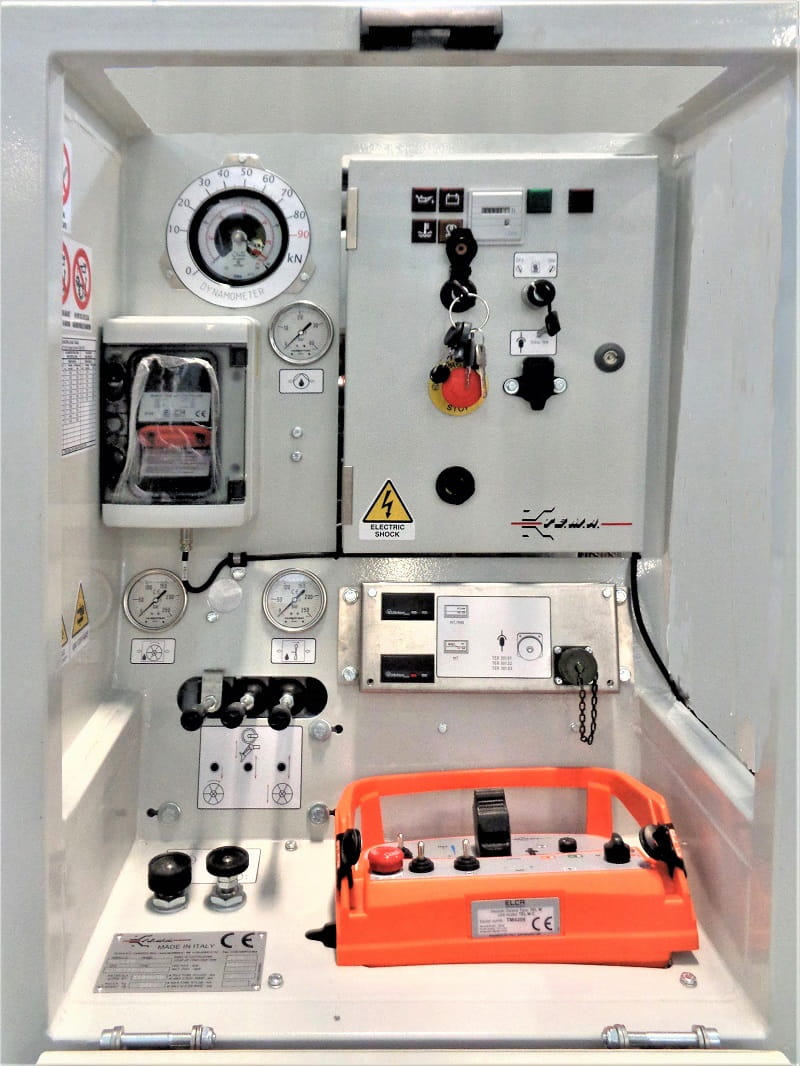

- Remote control unit c/w console 5 m cable
- Rigid axle with tyres for towing up to 30 km/h
- Balanced top lifting point and anchoring attachments
Optional equipment
01-PW Preset for digital data recorder, counter-meter and speedometer
05-PW Rope holder clamp (hydraulic)
06-PW Roller guiding device for underground laying
07-PW Hydraulic power take-off for remote reel-winder
Special features upon request
04-PW Radio control unit
13-PW Pre-heater (up to -30°C)
18-PW Counter-meter device
20-PW Dynamic speed pulling force control
36-PW Engine emission standard Stage IIIA - (85 hp) 63 kW
