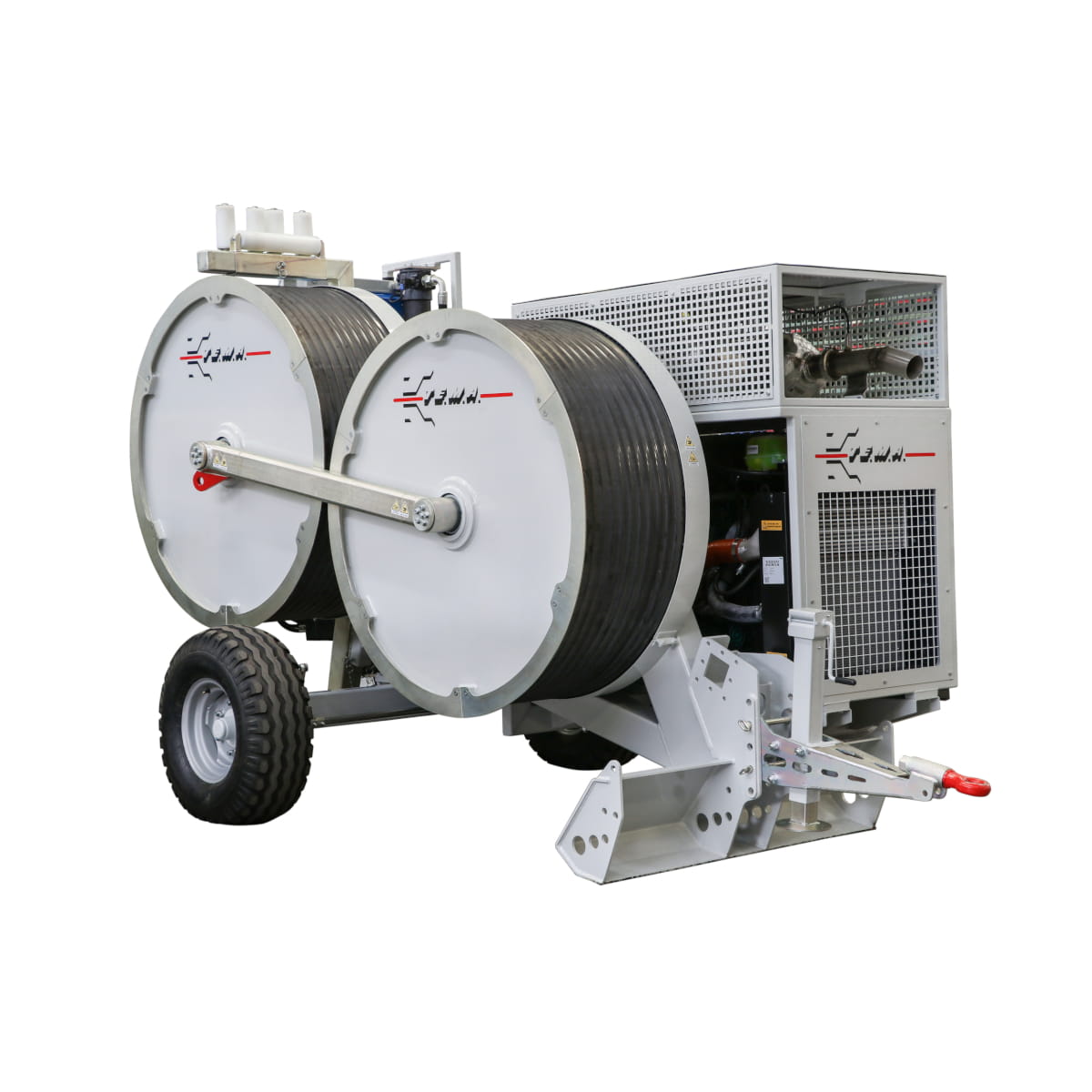

Hydraulic puller-tensioner 100 kN

Hydraulic puller-tensioner 100 kN capacity for single/double conductors and OPGW cable stringing operations.

Standard features
• 1 hydraulic circuit with negative brake system
• 1 dynamometer for direct reading of pulling value with load-limiter device
(puller-mode)
• 1 counter-meter device
• 2 sets of quick-release hydraulic connectors to drive up to 2 hydraulic driven
reel-stands or 1 reel-winder unit
• Thermally treated steel adherence wheels
• Gear box (2 speed)
• Remote control unit c/w console 5 m cable
• Hydraulic stabilizers
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments

Optional equipment
01-PT Preset for digital data recorder, counter-meter and speedometer
04-PT Radio control unit
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
15-PT Adherence wheels with interchangeable nylon liners
18-PT Multiple connection preset

Special features upon request
02-PT Dynamic speed pulling force control
05-PT Additional hydraulic power take-off for reel-winder unit
20-PT Pre-heater (up to -30°C)

Puller performance
Max pull 100 kN
Max Speed 5 km/h
Speed at max pull 2,4 km/h

Tensioner performance
Max tension 100 kN
Max speed 5 km/h

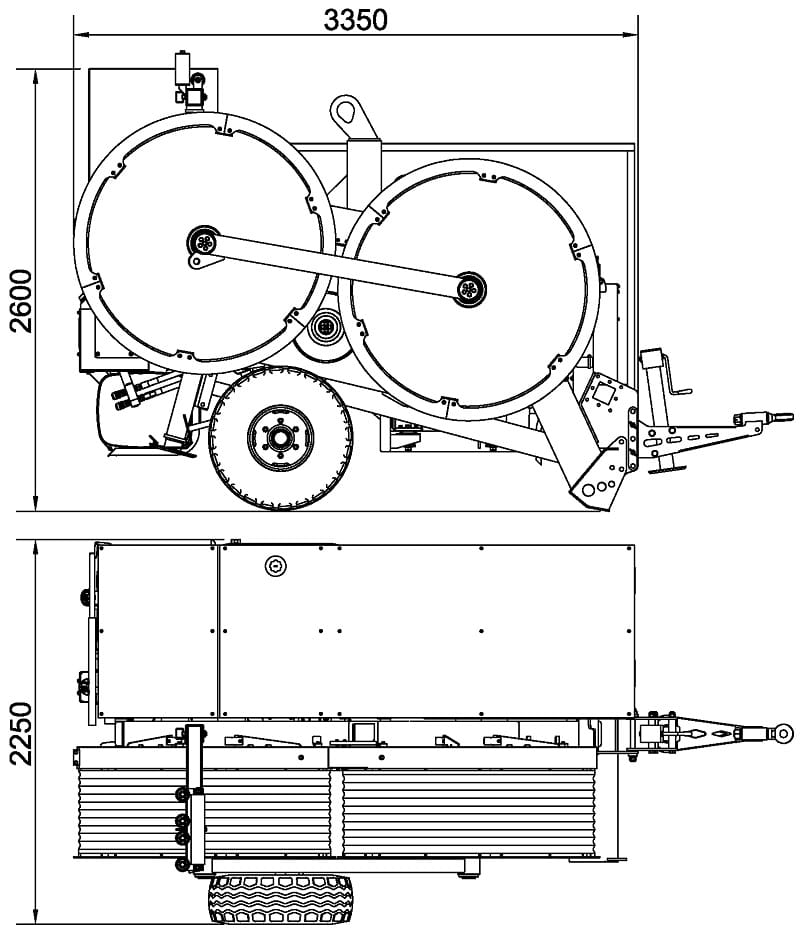

Characteristics
Adherence-wheels diameter 1500 mm
Also available with diameter 1800 mm
Max conductor diameter 40 mm
Max rope diameter 24 mm
Weight 5100 kg

Engine
Diesel (143 hp) 105 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
