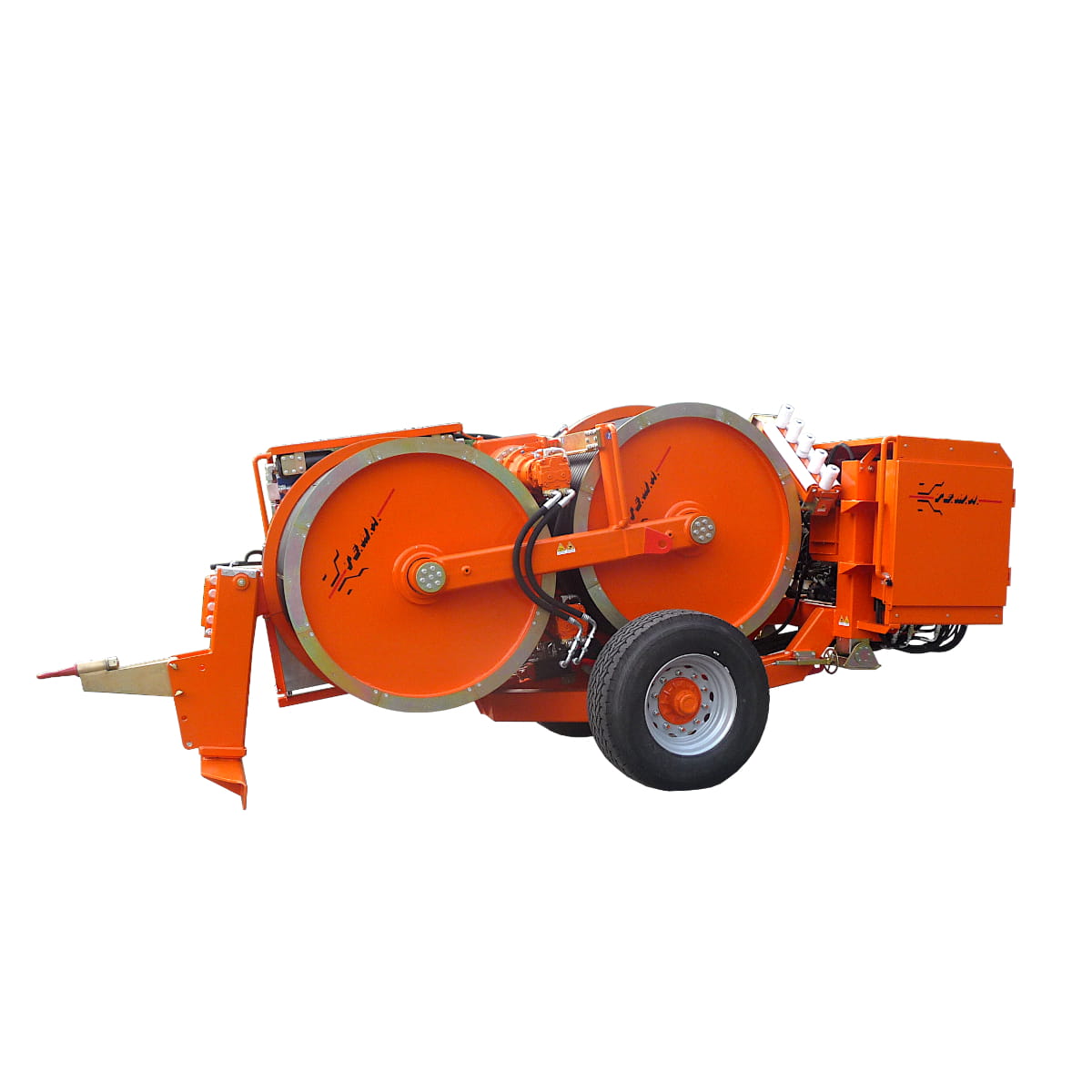

Hydraulic puller-tensioner 140 kN

Hydraulic puller-tensioner 140 kN capacity for stringing of up to 4 bundled conductors.

Standard features
• 1 hydraulic circuit with negative brake system
• 1 dynamometer for direct reading of pulling value with load-limiter device
(puller-mode)
• 1 counter-meter device
• 4 sets of quick release hydraulic connectors to feed up to 4 remote reelstands
or 1 reel-winder unit
• Thermally treated steel adherence wheels
• Remote control unit c/w console 5 m cable
• Rear independent hydraulic stabilizers
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments

Optional equipment
01-PT Preset for digital data recorder, counter-meter and speedometer
04-PT Radio control unit
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
15-PT Adherence wheels with interchangeable nylon liners
18-PT Multiple connection preset

Special features upon request
02-PT Dynamic speed pulling force control
05-PT Additional hydraulic power take-off for reel-winder unit
20-PT Pre-heater (up to -30°C )
42-PT Engine emission standard Stage IIIA – (175 hp) 129 kW

Puller performance
Max pull 140 kN
Max speed 5 km/h
Speed at max pull 2,2 km/h

Tensioner performance
Max tension 140 kN
Max speed 5 km/h

Characteristics
Adherence-wheels diameter 1500 mm
Also available with diameter 1800 mm
Max conductor diameter 40 mm
Max rope diameter 24 mm
Weight 9200 kg

Engine
Diesel (218 hp) 160 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
