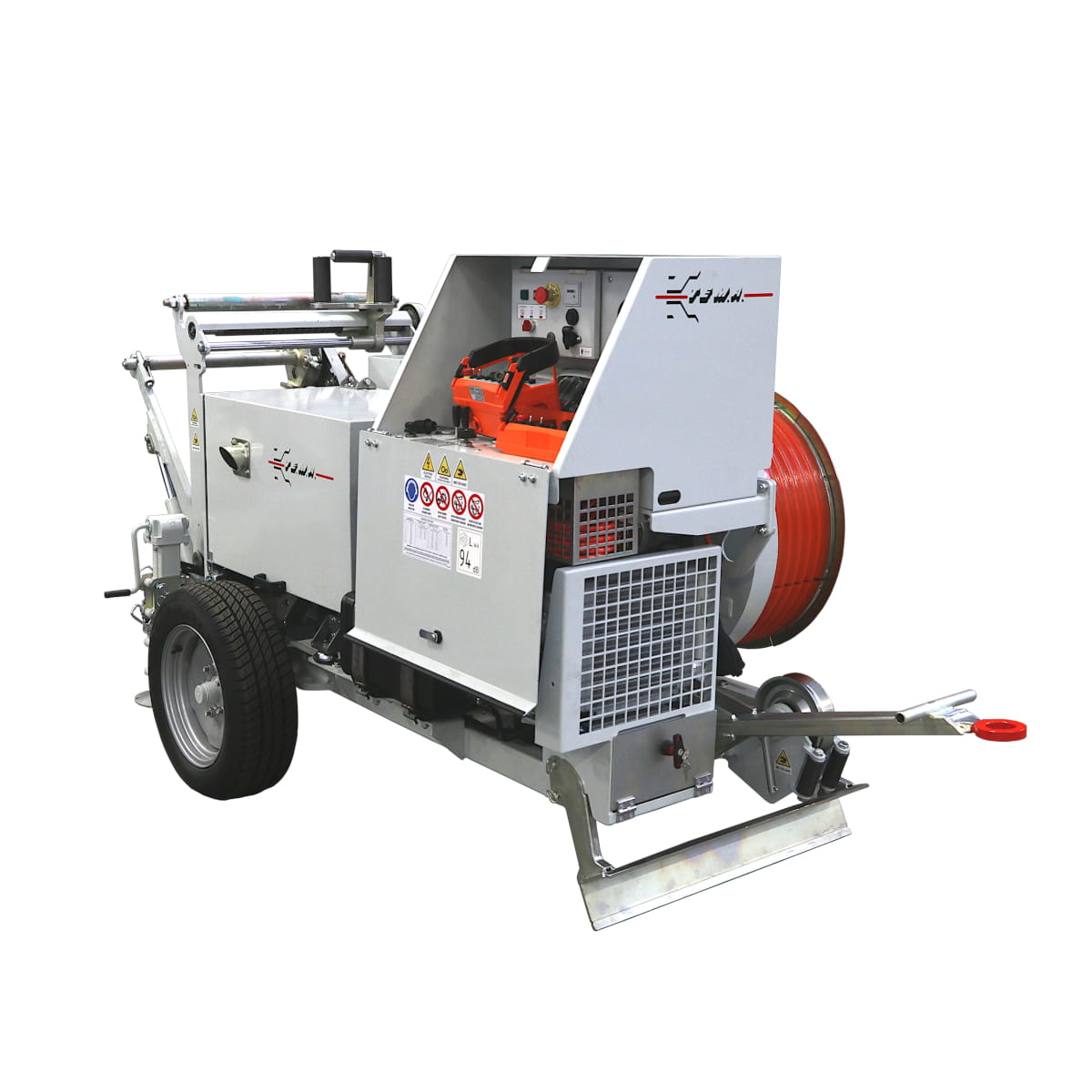

Hydraulic puller-tensioner 25 kN

Hydraulic puller-tensioner 25 kN capacity for single conductor stringing operations.

Standard features
• 1 hydraulic circuit with negative brake system
• 1 dynamometer for direct reading of pulling value with load-limiter device
(puller-mode)
• 1 counter-meter device
• 1 sets of quick-release hydraulic connectors to drive up to 1 hydraulic driven
reel-stands or 1 reel-winder unit
• Dismountable in 2 heli-portable parts < 1100 kg each
• Reel-winder suitable for steel reel 1100÷1400 mm (240 kg)
• Thermally treated steel adherence wheels
• Rear independent mechanical stabilizers
• Rigid axle with tyres for towing up to 30 km/h (70 kg)
• Balanced top lifting point and anchoring attachments

Optional equipment
01-PT Preset for digital data recorder, counter-meter and speedometer
03-PT Remote control unit c/w console 5 m cable
04-PT Radio control unit
08-PT Conductor/rope holder clamp (hydraulic)
34-PT Adherence wheels with interchangeable adiprene liners

Special features upon request
02-PT Dynamic speed pulling force control
13-PT Road trailer kit
20-PT Pre-heater (up to -30°C)
26-PT Puller version

Puller performance
Max pull 25 kN
Max speed 3,2 km/h
Speed at max pull 1,2 km/h

Tensioner performance
Max tension 25 kN
Max speed 5 km/h

Characteristics
Adherence-wheels diameter 660 mm
Max conductor diameter 23 mm
Max rope diameter 18 mm
Weight 1400 kg

Engine
Diesel (25 hp) 19 kW
Cooling Liquid
Emission standard (UE)2016/1628 Stage V
