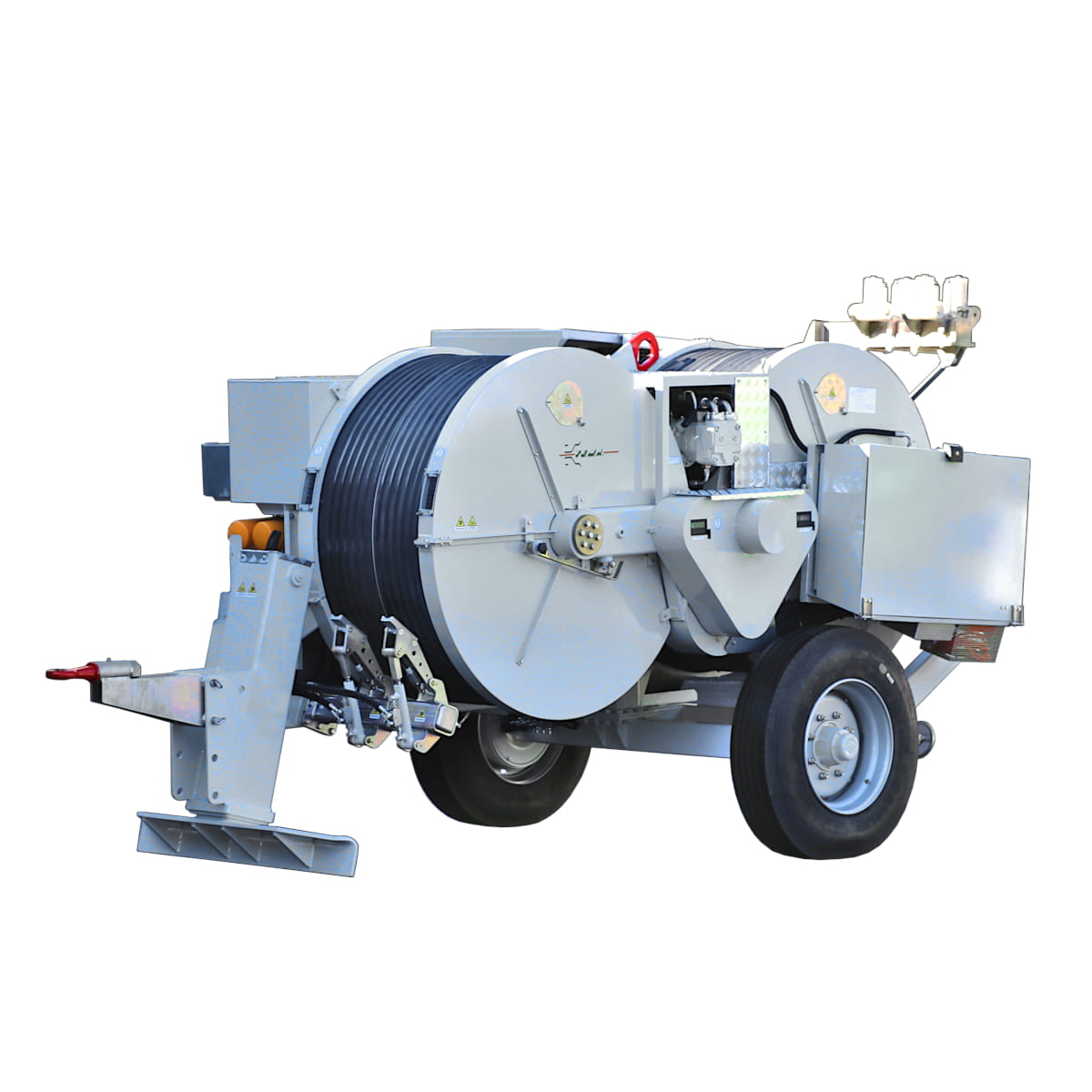

Hydraulic puller-tensioner 2x50 kN

Hydraulic puller-tensioner with two independent hydraulic circuits, 2x50 kN or 1x100 kN capacity for stringing of up to 2 bundled conductors as well as OPGW cable.

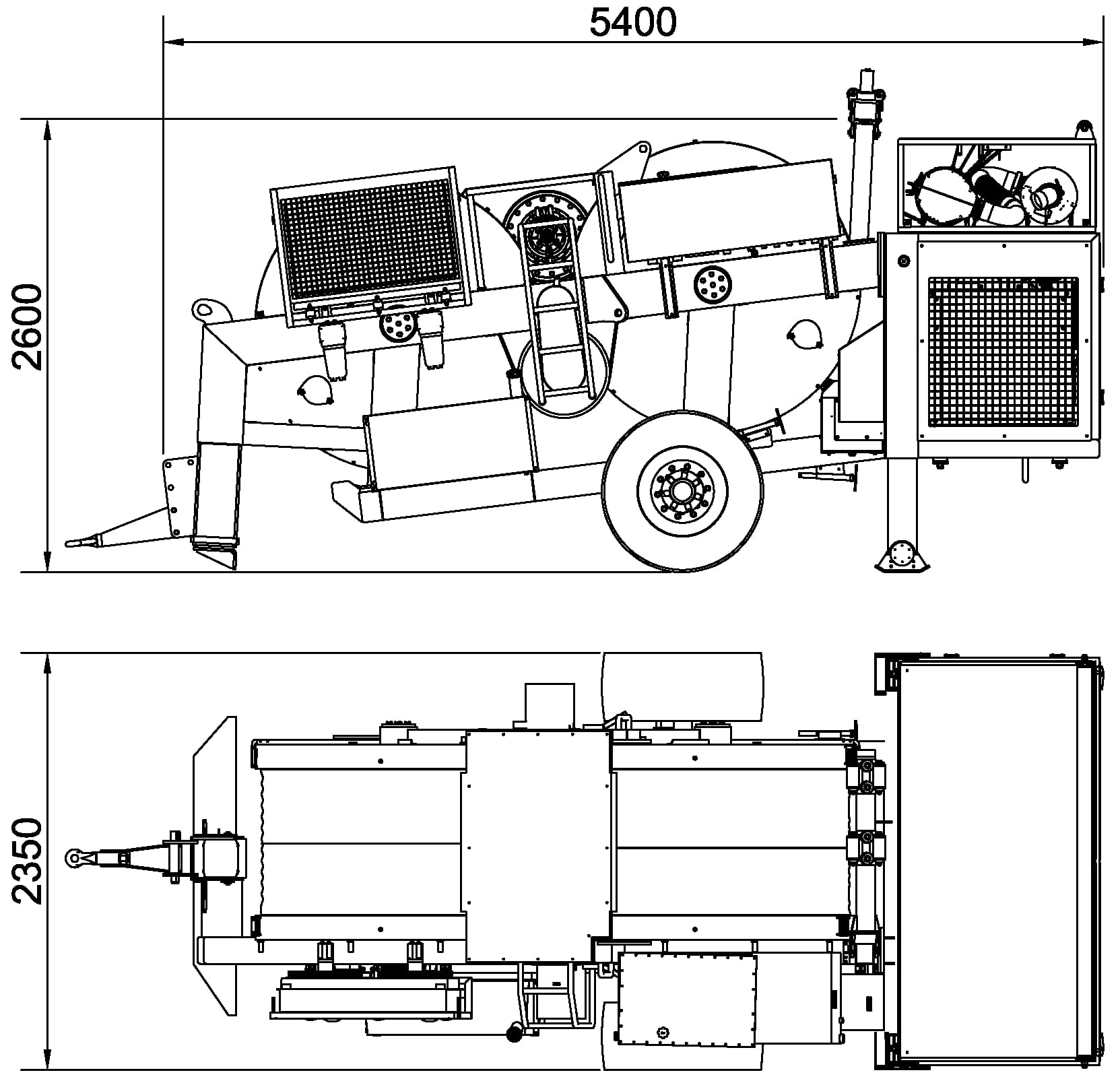

Technical data

Standard features

• 2 hydraulic circuits with negative brake system
• Mechanical capstans coupling
• 2 dynamometers for direct reading of pulling value with load-limiter devices (puller-mode)
• 2 counter-meter devices
• 2 sets of quick-release hydraulic connectors to drive up to 2 hydraulic driven reel-stands or 1 reel-winder unit
• Thermally treated steel adherence wheels
• Gear box (2 speed) for 1 circuit
• Remote control unit c/w console 5 m cable
• Hydraulic stabilizers
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments

Optional equipment

01-PT Preset for digital data recorder, counter-meter and speedometer

04-PT Radio control unit

07-PT Hydraulic power take-off for press

08-PT Conductor/rope holder clamp (hydraulic)

15-PT Adherence wheels with interchangeable nylon liners

16-PT Mechanical adherence-wheels coupling system by clutch

18-PT Multiple connection preset

Special features upon request

02-PT Dynamic speed pulling force control

05-PT Additional hydraulic power take-off on reel-winder circuit

20-PT Pre-heater (up to -30°C)

21-PT Additional gear box (2 speed)

42-PT Engine emission standard Stage IIIA - (125 hp) 93 kW

Engine

Diesel (143 hp) 105 kW

Cooling Liquid

Emission standard - (UE)2016/1628 Stage V
