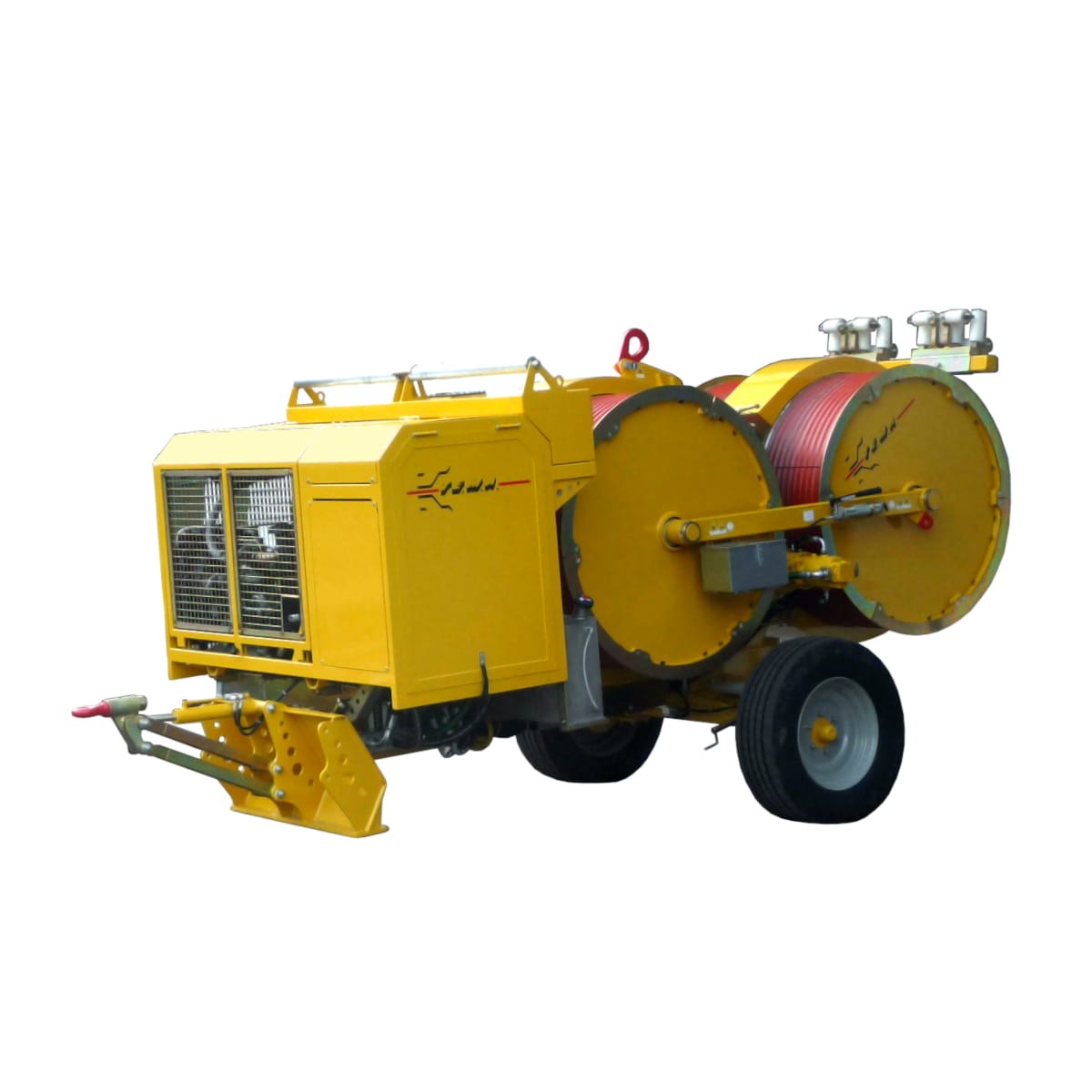

Hydraulic puller-tensioner 2x75 kN
- ask about price
-
ask about product
-
recommend to a friend
Description
Hydraulic puller-tensioner with two independent hydraulic circuits, 2x75 kN or 1x150 kN capacity for stringing of up to 4 bundled conductors as well as OPGW cable.
Technical data
| Adherence-wheels diameter | 1500 mm |
|---|---|
| Also available with diameter | 1800 mm |
| Max conductor diameter | 40 mm |
| Max rope diameter | 28 mm |
| Weight | 8800 kg |
| Puller performance | |
| Max pull | 2x75 or 1x150 kN |
| Max speed | 5 km/h |
| Speed at max pull | 2 km/h |
| Tensioner performance | |
| Max tension | 2x75 or 1x150 kN |
Standard features
- 2 hydraulic circuit with negative brake system
- Mechanical capstans coupling
- 2 dynamometers for direct reading of pulling value with load-limiter devices (puller-mode)
- 2 counter-meter device
- 4 sets of quick release hydraulic connectors to feed up to 4 remote reelstands or 1 reel-winder units
- Thermally treated steel adherence wheels
- Gear box (2 speed) for 1 circuit
- Remote control unit c/w console 5 m cable
- Hydraulic stabilizers
- Rigid axle with tyres for towing up to 30 km/h
- Balanced top lifting point and anchoring attachments
Optional equipment
01-PT Preset for digital data recorder, counter-meter and speedometer
04-PT Radio control unit
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
15-PT Adherence wheels with interchangeable nylon liners
16-PT Mechanical adherence-wheels coupling system by clutch
Special features upon request
02-PT Dynamic speed pulling force control
05-PT Additional hydraulic power take-off for reel-winder unit
20-PT Pre-heater (up to -30°C)
21-PT Additional gear box (2 speed)
42-PT Engine emission standard Stage IIIA - (175 hp) 129 kW
Engine
Diesel (218 hp) 160 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
