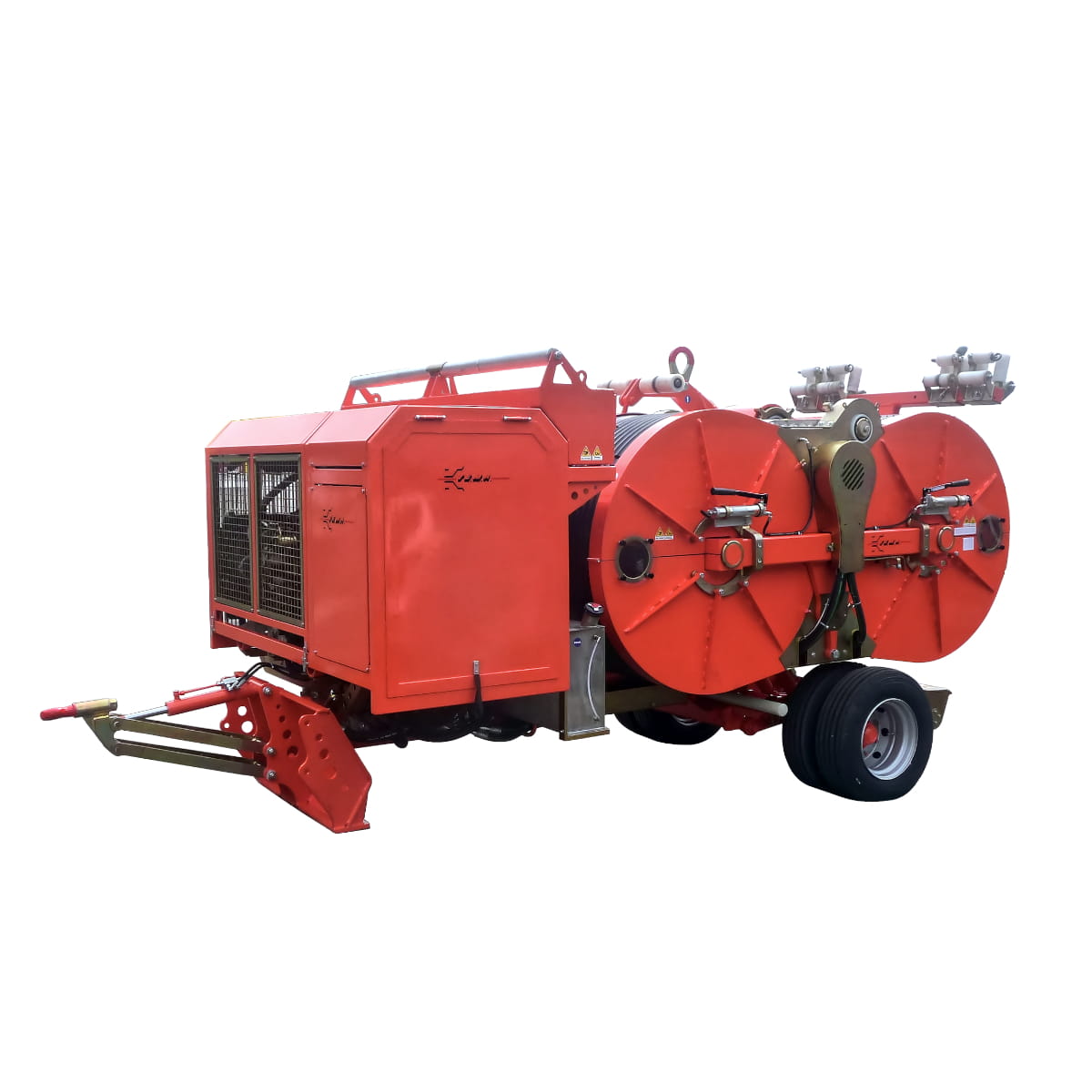

Hydraulic puller-tensioner 4x45 kN

Hydraulic puller-tensioner with four independent hydraulic circuits, 4x45 kN or 2x90 kN capacity for single or simultaneous stringing of up to 4 bundled conductors as well as OPGW cable.

Standard features

• 4 hydraulic circuits with negative brake system
• Mechanical capstans coupling
• 4 dynamometers for direct reading of pulling value with load-limiter
devices (puller-mode)
• 4 counter-meter devices
• 4 sets of quick-release hydraulic connectors to drive up to 4 hydraulic
driven reel-stands or 1 reel-winder unit
• Thermally treated steel adherence wheels
• Gear box (2 speed) for 1 circuit
• Remote control unit c/w console 5 m cable
• Hydraulic stabilizers
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments

Optional equipment
01-PT Preset for digital data recorder, counter-meter and speedometer
04-PT Radio control unit
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
15-PT Adherence wheels with interchangeable nylon liners
16-PT Mechanical adherence-wheels coupling system by clutch

Special features upon request
02-PT Dynamic speed pulling force control
20-PT Pre-heater (up to -30°C)
42-PT Engine emission standard Stage IIIA – (300 hp) 224 kW

Puller performance
Max pull 4x45 or 2x90 kN
Max speed 5 km/h
Speed at max pull 2,2 km/h

Tensioner performance
Max tension 4x45 or 2x90 kN
Max speed 5 km/h

Characteristics
Adherence-wheels diameter 1500 mm
Max conductor diameter 40 mm
Max rope diameter 28 mm
Weight 16500 kg

Engine
Diesel (286 hp) 210 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
