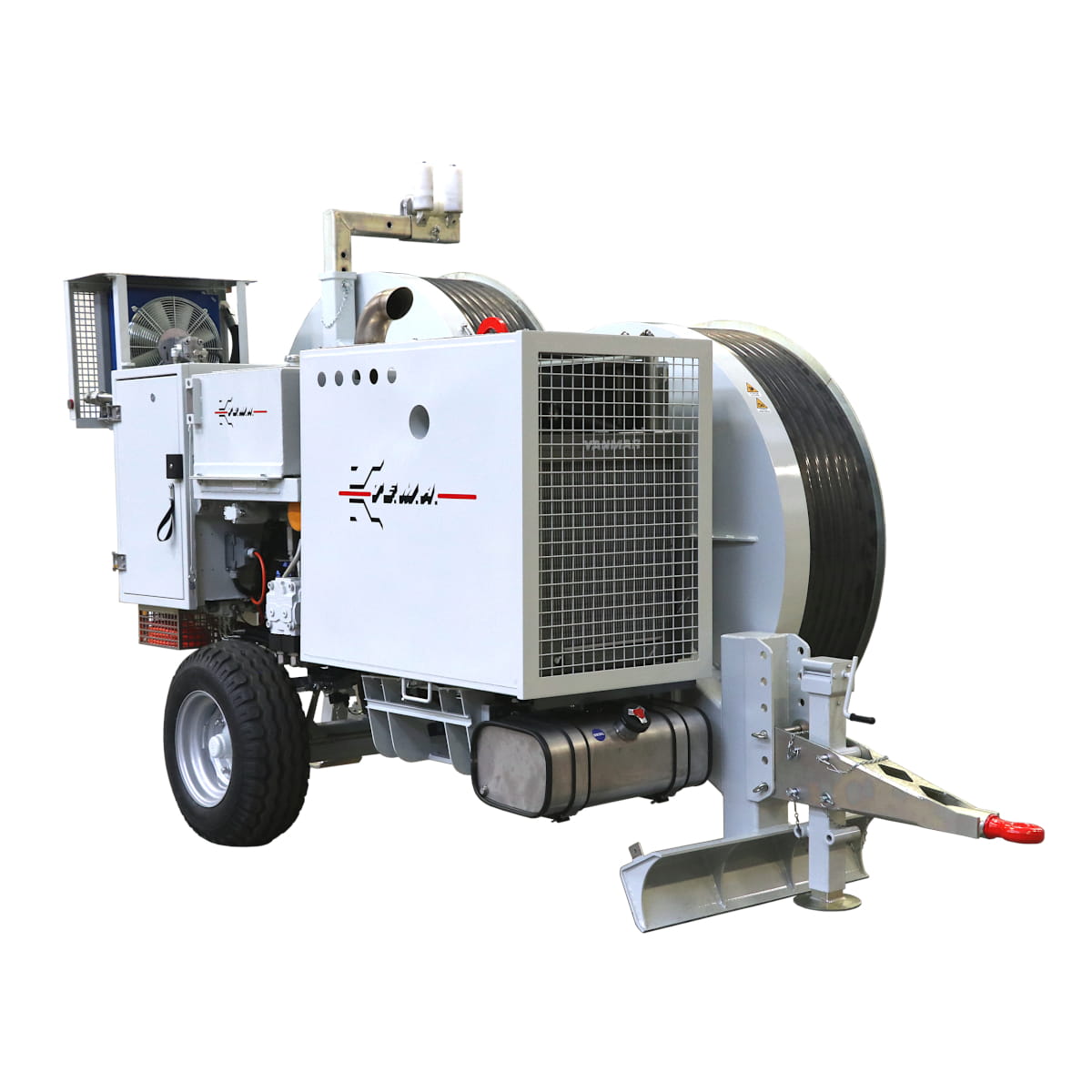

Hydraulic puller-tensioner 50 kN
- ask about price
-
ask about product
-
recommend to a friend
Description
Hydraulic puller-tensioner 50 kN capacity for single conductor and OPGW cable stringing operations.
Technical data
| Adherence-wheels diameter | 1500 mm |
|---|---|
| Max conductor diameter | 40 mm |
| Max rope diameter | 18 mm |
| Weight | 3650 kg |
| Puller performance | |
| Max pull | 50 kN |
| Max speed | 5 km/h |
| Speed at max pull | 2,1 km/h |
| Tensioner performance | |
| Max tension | 50 kN |
Product description
Also available with diameter 1200 or 1800 mm
Standard features
- 1 hydraulic circuit with negative brake system
- 1 dynamometer for direct reading of pulling value with load-limiter device (puller-mode)
- 1 counter-meter device
- 1 set of quick-release hydraulic connectors to drive up to 1 hydraulic driven reel-stand or 1 reel-winder unit
- Thermally treated steel adherence wheels
- Gear box (2 speed)
- Remote control unit c/w console 5 m cable
- Mechanical stabilizers
- Rigid axle with tyres for towing up to 30 km/h
- Balanced top lifting point and anchoring attachments
Optional equipment
01-PT Preset for digital data recorder, counter-meter and speedometer
04-PT Radio control unit
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
15-PT Adherence wheels with interchangeable nylon liners
18-PT Multiple connection preset
Special features upon request
02-PT Dynamic speed pulling force control
05-PT Additional hydraulic power take-off for reel-winder unit
17-PT Built-in reel winder suitable for reels 1100-1400 mm
20-PT Pre-heater (up to -30°C)
40-PT Kit 8 grooves for 2 bundle conductors max Ø 29 mm
42-PT Engine emission standard Stage IIIA - (85 hp) 63 kW
Engine
Diesel (73 hp) 54 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
