Hydraulic tensioner-puller 140 kN

Availability: zapytaj o cenę

On warehouse: 0

Price: €40,650.41

Regular price:

40650.41

quantity pcs

product unavailable

add to wish list

Producer: Tema Italy

Product code: FA1514.14

Description

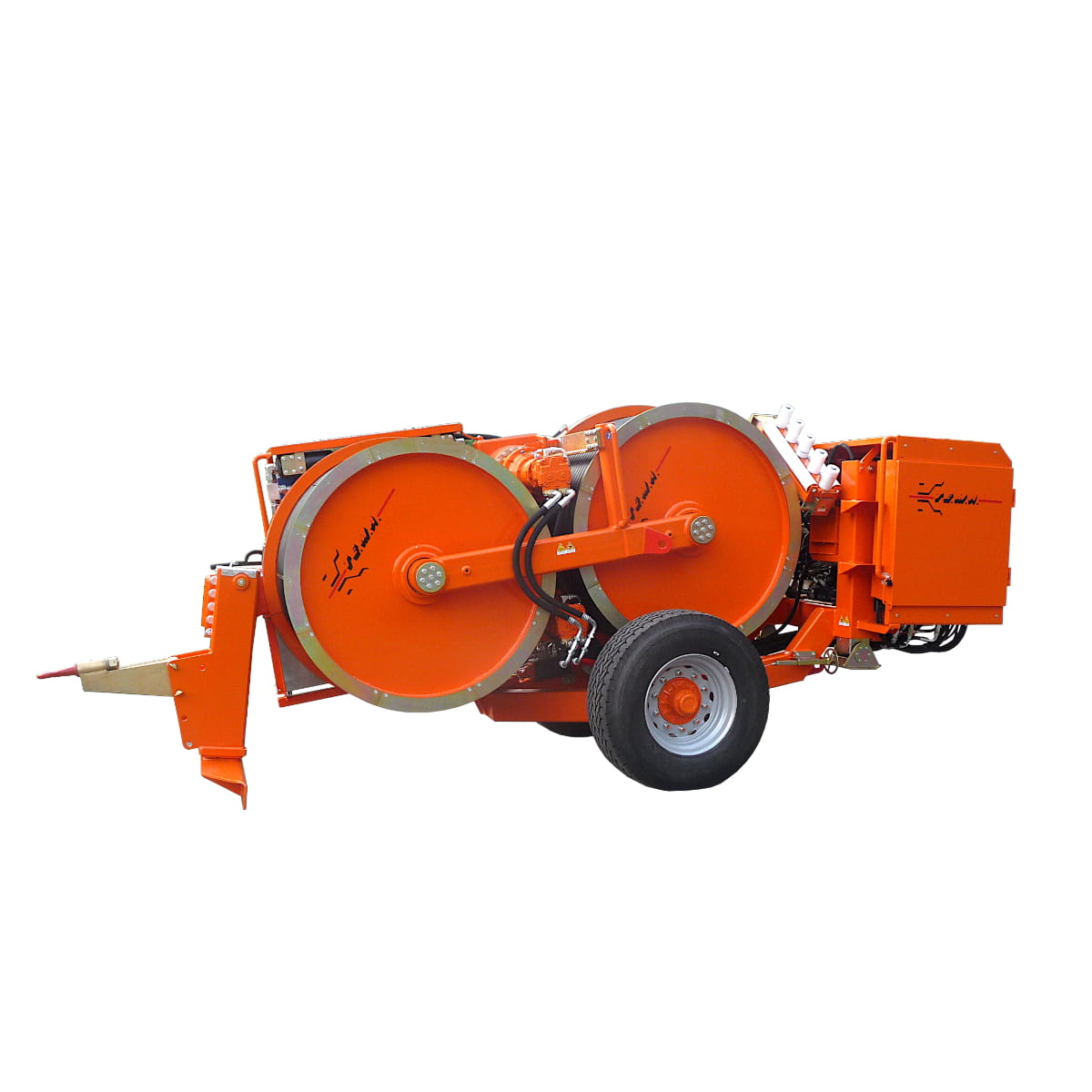

Hydraulic tensioner-puller 140 kN capacity for stringing of up to 4 bundled conductors.

Adherence-wheels diameter

1500 mm

Also available with diameter

1800 mm

Max conductor diameter

40 mm

Tensioner performance
Adherence-wheels diameter	1500 mm
Also available with diameter	1800 mm
Max conductor diameter	40 mm
Weight	8800 kg
Max tension	140 kN
Max speed	5 km/h
Pull-back performance
Max pull	140 kN
Max speed	0,7 km/h

1 hydraulic circuit with negative brake system
1 dynamometer for direct reading of pulling value with load-limiter device (puller – mode)
1 counter-meter device
4 set of quick-release hydraulic connectors to drive up to 4 hydraulic driven reel-stands or 1 reel-winder unit
Adherence wheels with interchangeable nylon liners
Rear independent hydraulic stabilizers
Rigid axle with tyres for towing up to 30 km/h
Balanced top lifting point and anchoring attachments

01-PT Preset for digital data recorder, counter-meter and speedometer

07-PT Hydraulic power take-off for press

08-PT Conductor/rope holder clamp (hydraulic)

14-PT Thermally treated steel adherence wheels

18-PT Multiple connection preset

20-PT Pre-heater (up to -30°C)

42-PT Engine emission standard Stage IIIA - (85 hp) 63 kW

Diesel (73 Hp) 54 kW

Cooling Liquid

Emission standard (UE)2016/1628 Stage V
