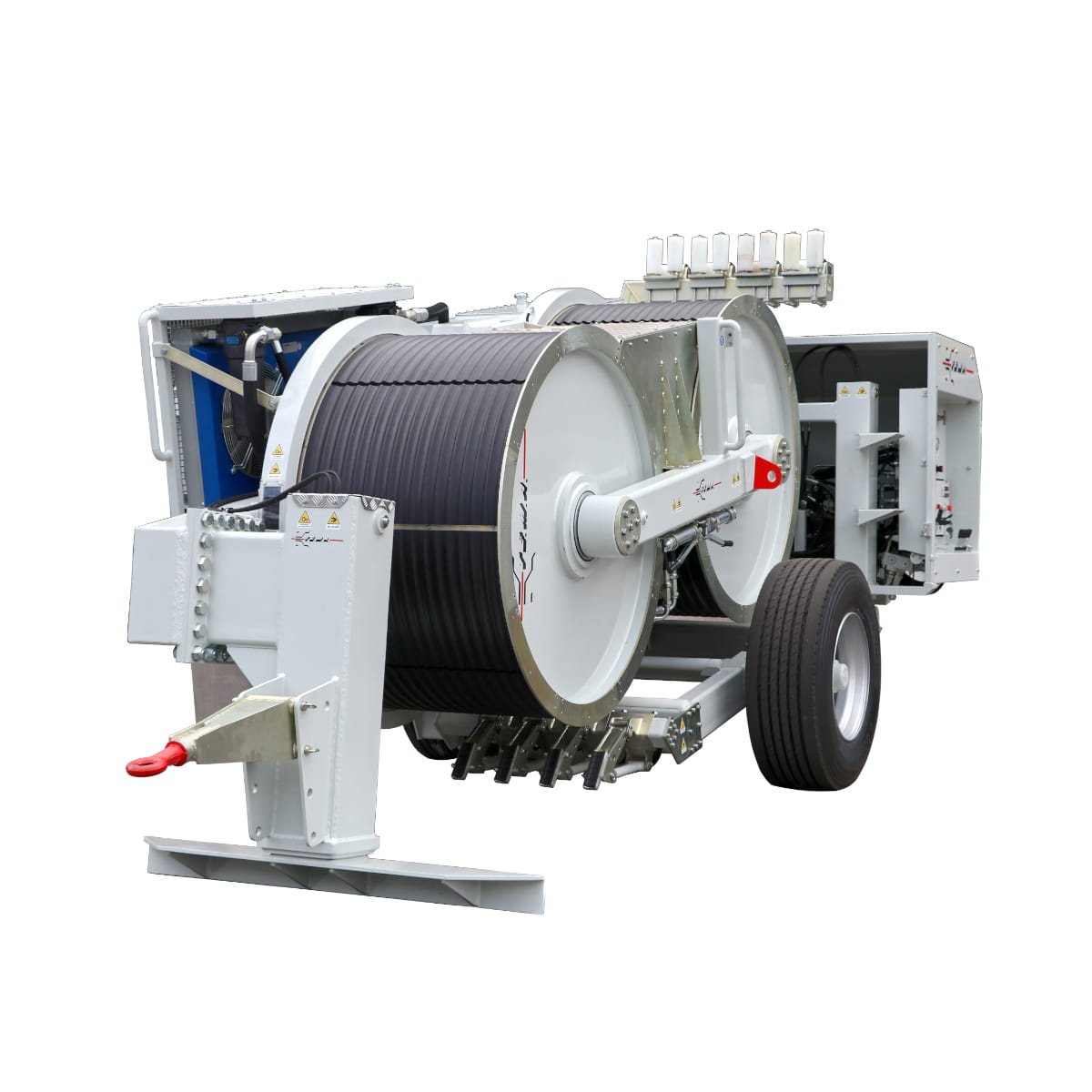

Hydraulic tensioner-puller 180 kN
- ask about price
-
ask about product
-
recommend to a friend
Description
Hydraulic tensioner-puller 180 kN capacity for stringing of up to 4 bundled conductors.
Standard features
• 1 hydraulic circuit with negative brake system
• 1 dynamometer for direct reading of pulling value with load-limiter device
(puller-mode)
• 1 counter-meter device
• 4 sets of quick-release hydraulic connectors to drive up to 4 hydraulic driven
reel-stands or 1 reel-winder unit
• Adherence wheels with interchangeable nylon liners
• Rear independent hydraulic stabilizers
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments
Optional equipment
01-PT Preset for digital data recorder, counter-meter and speedometer
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
14-PT Thermally treated steel adherence wheels
18-PT Multiple connection preset
Special features upon request
05-PT Additional set of hydraulic power take-off for reel-winder unit
20-PT Pre-heater (up to -30°C)
40-PT Kit 24 grooves for Hexa bundle conductors max Ø 29 mm
42-PT Engine emission standard Stage IIIA - (85 hp) 63 kW
Tensioner performance
Max tension 180 kN
Max speed 5 km/h
Pull-back performance
Max pull 150 kN
Max speed 0,6 km/h
Characteristics
Adherence-wheels diameter 1500 mm
Also available with diameter 1800 mm
Max conductor diameter 42 mm
Weight 11000 kg
Engine
Diesel (73 hp) 54 kW
Cooling Liquid
Emission standard (UE)2016/1628 Stage V
