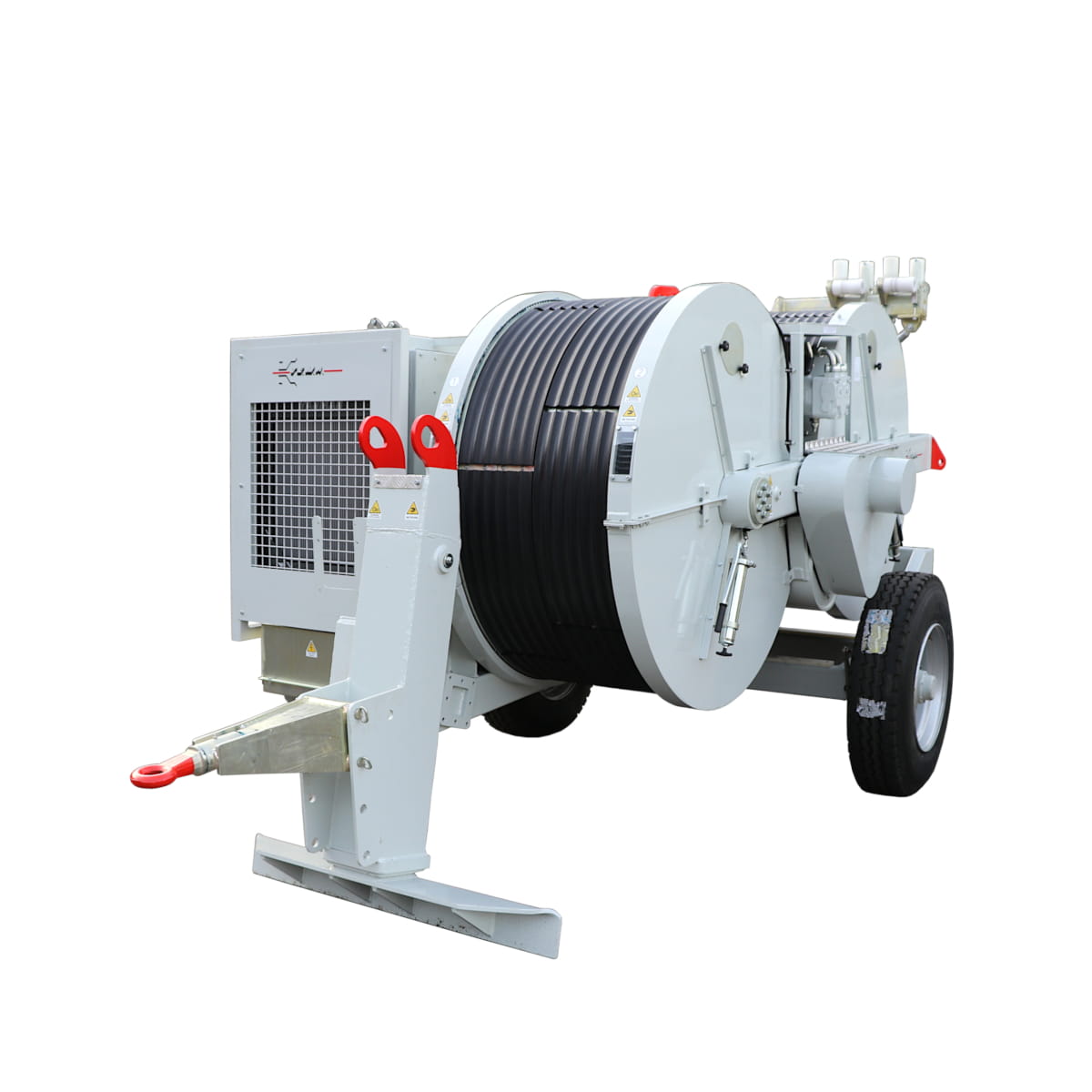

Hydraulic tensioner-puller 2x50 kN

Standard features
• 2 hydraulic circuits with negative brake system
• Mechanical capstans coupling
• 2 dynamometers for direct reading of pulling value with load-limiter device
(puller-mode)
• 2 counter-meter devices
• 2 sets of quick-release hydraulic connectors to drive up to 2 hydraulic driven
reel-stands or 1 reel-winder unit
• Adherence wheels with interchangeable nylon liners
• Gear box (2 speed) for 1 circuit
• Hydraulic stabilizers
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments

Optional equipment
01-PT Preset for digital data recorder, counter-meter and speedometer
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
14-PT Thermally treated steel adherence wheels
18-PT Multiple connection preset

Special features upon request
05-PT Additional hydraulic power take-off on reel-winder circuit
16-PT Mechanical Adherence-wheels coupling system by clutch
20-PT Pre-heater (up to -30°C)
21-PT Additional gear box (2 speed)
42-PT Engine emission standard Stage IIIA - (85 hp) 63 kW

Tensioner performance
Max tension 2x50 or 1x100 kN
Max speed 5 km/h

Pull-back performance
Max pull 2x50 or 1x100 kN
Max speed 1 km/h

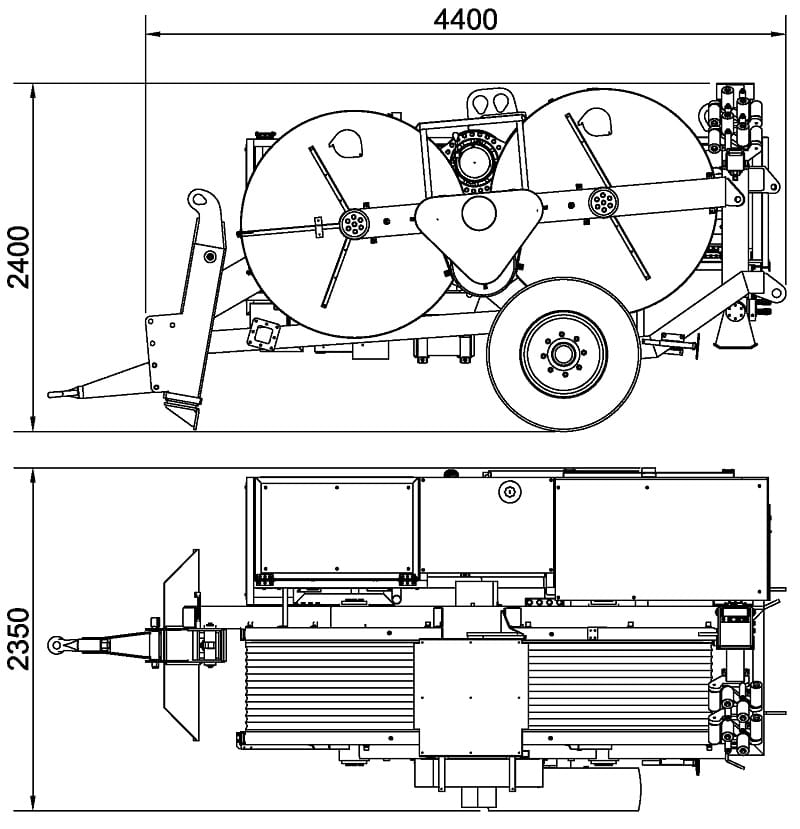

Characteristics
Adherence-wheels diameter 1500 mm
Also available with diameter 1800 mm
Max conductor diameter 40 mm
Weight 7700 kg

Engine
Diesel (73 hp) 54 kW
Cooling Liquid
Emission standard (UE)2016/1628 Stage V
