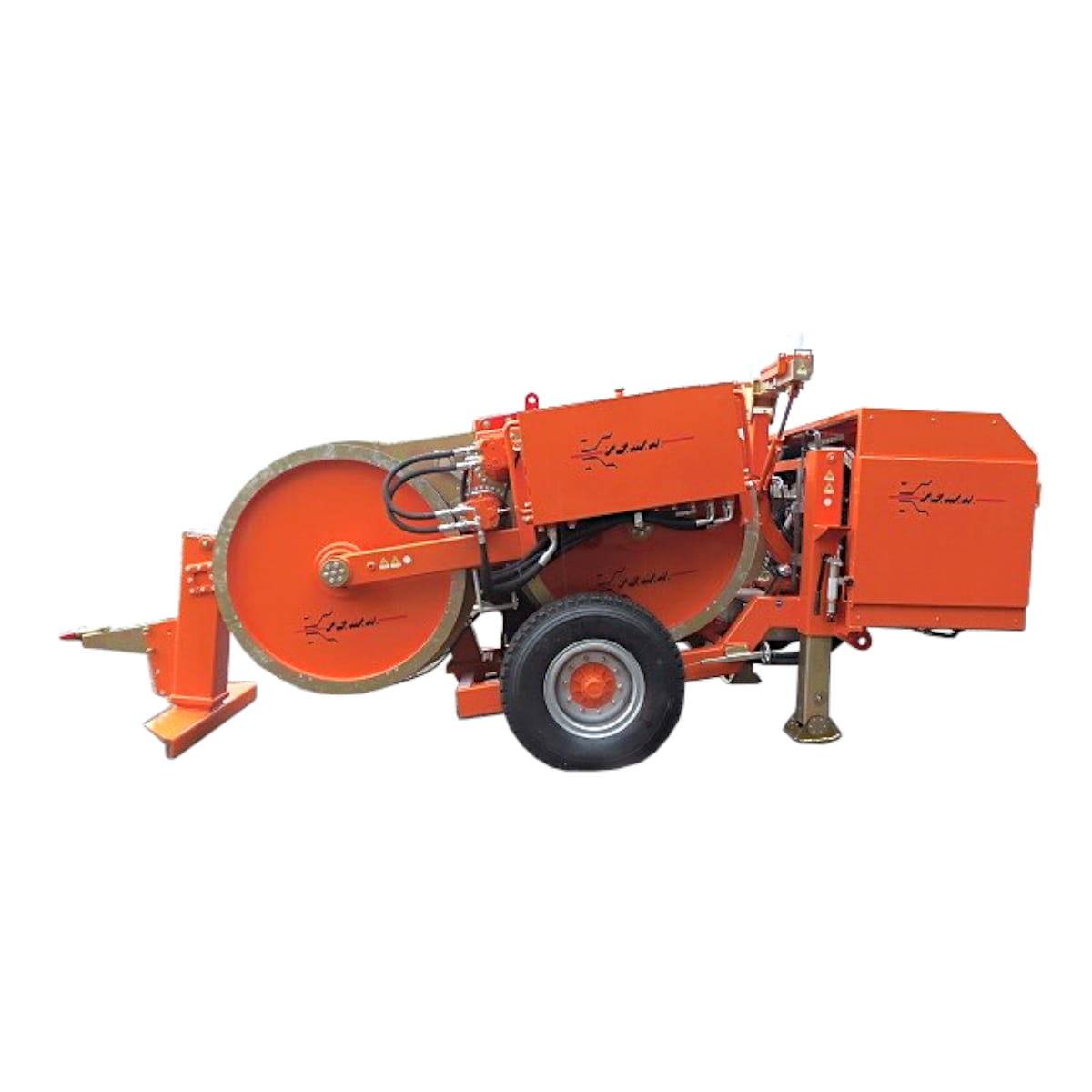

Hydraulic tensioner-puller 2x90kN

Hydraulic tensioner-puller with two independent hydraulic circuits, 2x90kN capacity for single or simultaneous stringing of up to 4 bundled
conductors.

Standard features
• 2 hydraulic circuits with negative brake system
• 2 dynamometers for direct reading of pulling value with load-limiter
device (puller-mode)
• 2 counter-meter devices
• 4 sets of quick-release hydraulic connectors to drive up to 4 hydraulic
driven reel-stands or 1 reel-winder unit
• Adherence wheels with interchangeable nylon liners
• Rear independent hydraulic stabilizers
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments

Optional equipment
01-PT Preset for digital data recorder, counter-meter and speedometer
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
14-PT Thermally treated steel adherence wheels
18-PT Multiple connection preset

Special features upon request
16-PT Mechanical adherence-wheels coupling system by clutch
20-PT Pre-heater (up to -30°C)
40-PT Kit 12+12 grooves for Hexa bundle conductors max Ø 29 mm
42-PT Engine emission standard Stage IIIA - (85 hp) 63 kW

Tensioner performance
Max tension 2x90 kN
Max speed 5 km/h

Pull-back performance
Max pull 2x90 kN
Max speed 0,6 km/h

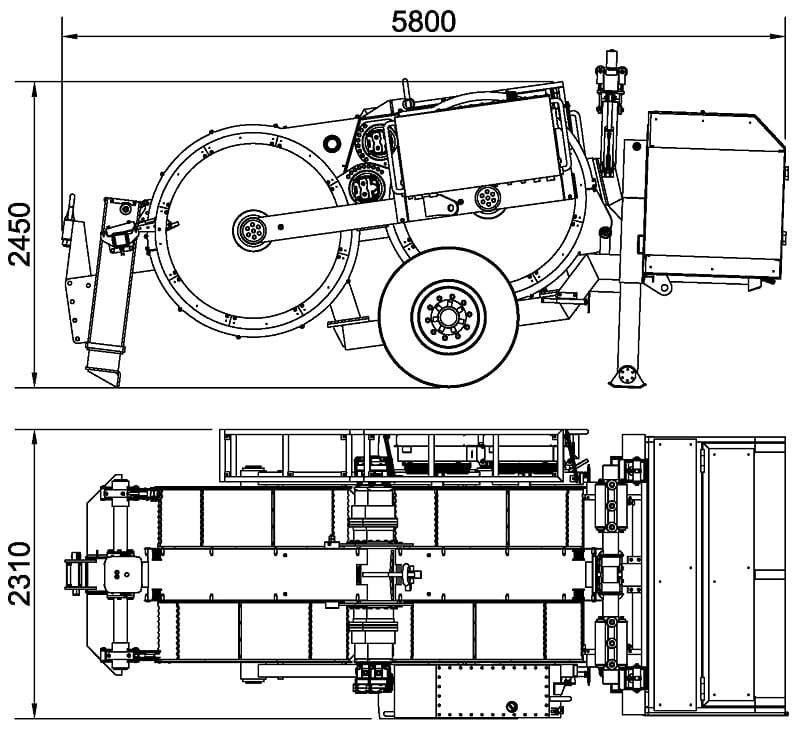

Characteristics
Adherence-wheels diameter 1500 mm
Also available with diameter 1800 mm
Max conductor diameter 40 mm
Weight 11900 kg

Engine
Diesel (73 hp) 54 kW
Cooling Liquid
Emission standard (UE)2016/1628 Stage V
