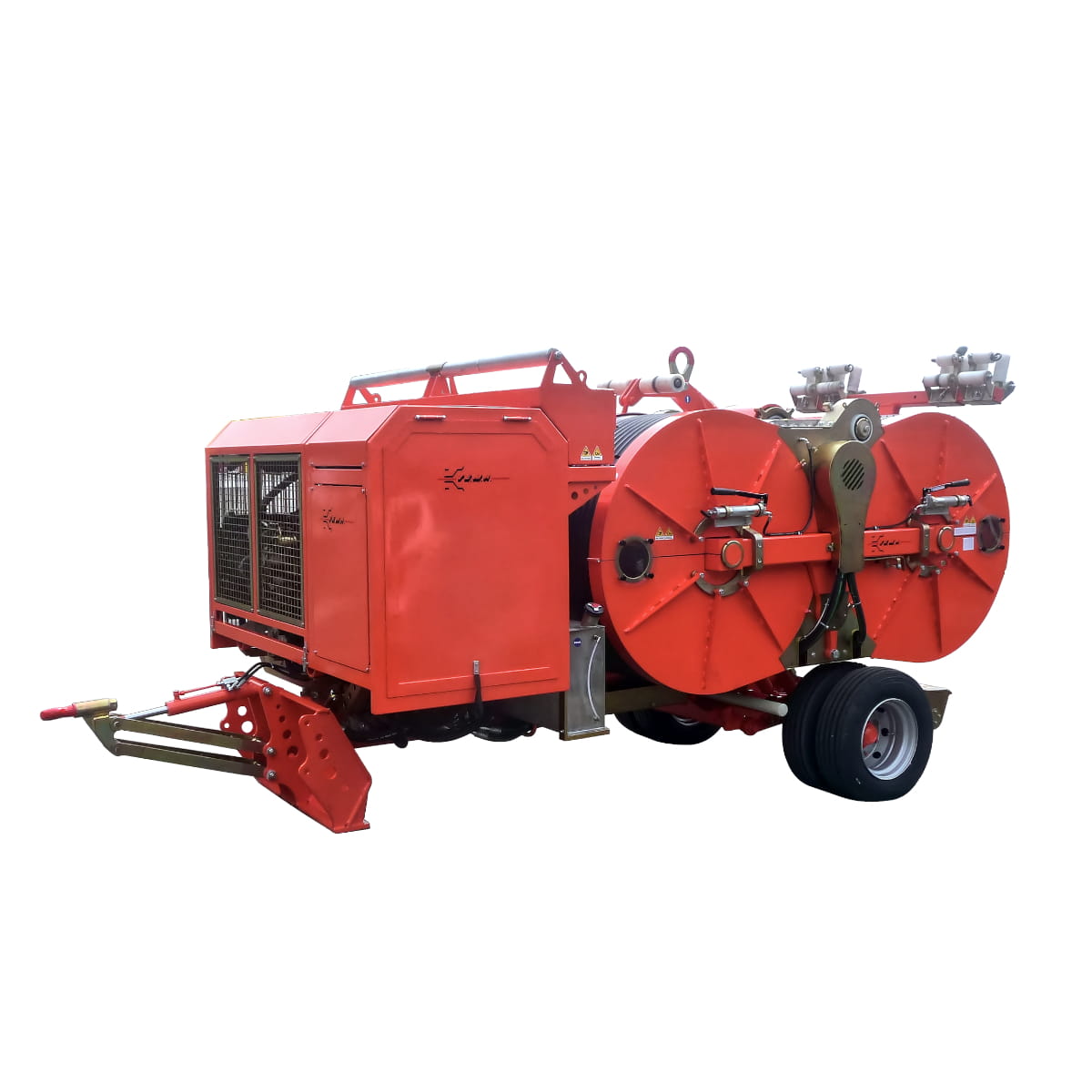

Hydraulic tensioner-puller 4x45kN
- ask about price
-
ask about product
-
recommend to a friend
Description
Hydraulic tensioner-puller with 4 independent hydraulic circuits, 4x45kN or 2x90kN capacity for single or simultaneous stringing operation of up to 4 bundled conductors.
Standard features
• 4 hydraulic circuits with negative brake system
• Mechanical capstans coupling
• 4 dynamometers for direct reading of pulling value with load-limiter device
(puller-mode)
• 4 counter-meter devices
• 4 sets of quick-release hydraulic connectors to drive up to 4 hydraulic driven
reel-stands or 1 reel-winder unit
• Adherence wheels with interchangeable nylon liners
• Rear independent hydraulic stabilizers
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments
Optional equipment
01-PT Preset for digital data recorder, counter-meter and speedometer
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
14-PT Thermally treated steel adherence wheels
Special features upon request
16-PT Mechanical Adherence-wheels coupling system by clutch
20-PT Pre-heater (up to -30°C)
42-PT Engine emission standard Stage IIIA - (85 hp) 63 kW
Tensioner performance
Max tension 4x45 or 2x90 kN
Max speed 5 km/h
Pull-back performance
Max pull 4x45 or 2x90 kN
Max speed 0,5 km/h
Characteristics
Adherence-wheels diameter 1500 mm
Max conductor diameter 40 mm
Weight 11500 kg
Engine
Diesel (73 hp) 54 kW
Cooling Liquid
Emission standard (UE)2016/1628 Stage V
